Descripción

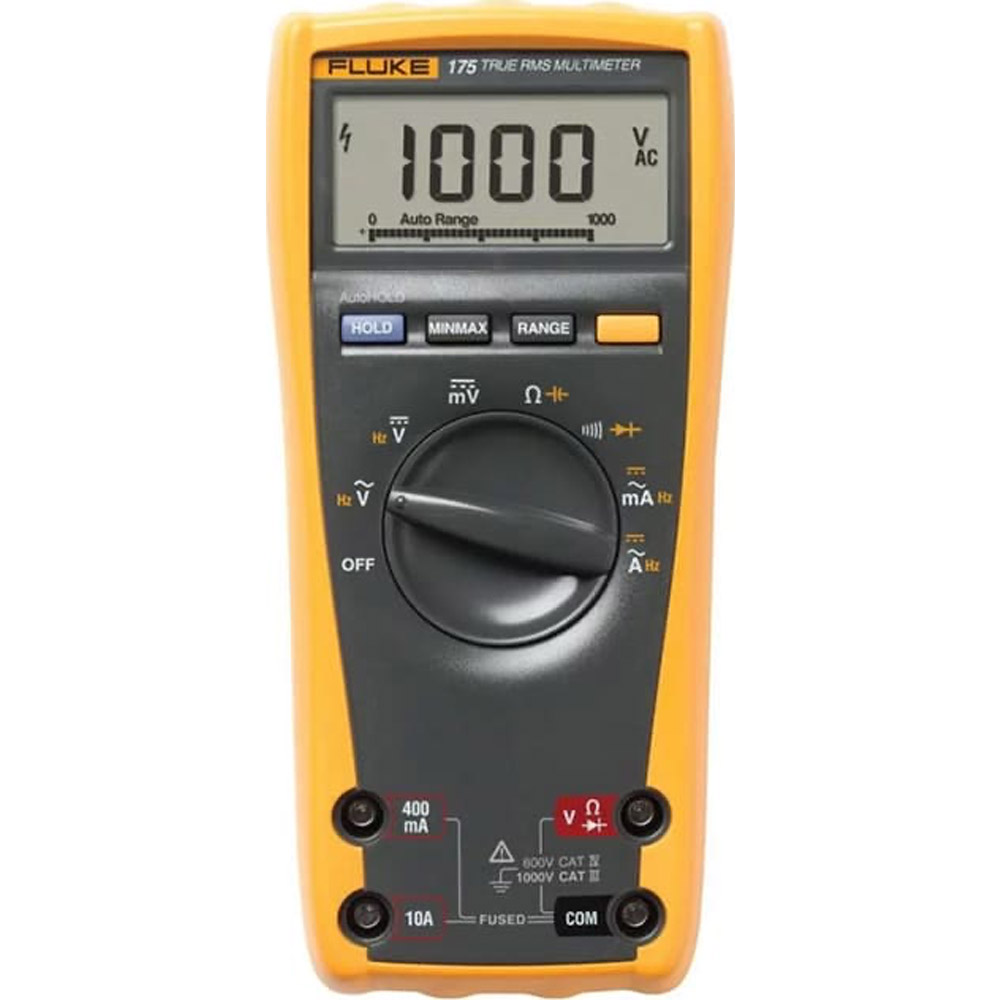

Fluke 175 Digital Multimeter 6000 Count DMM
- Limited Lifetime Warranty with online registration available
- IEC 1010 CAT IV 600V, CAT III 1000V
- 6000 count display provides improved resolution
- True-rms ac voltage and current for accurate readings on all waveforms
The Fluke 175 Digital Multimeter is the entry level meter to the popular 170 series. This meter boasts a drop protection to one meter so you don’t have to worry. With a rating of IEC 1010 CAT IV 600V, CAT III 1000V and a 6000 count display, the 175 is a welcome addition to your tool kit.
Smart, Safe, & Tough!
The 170 Series Fluke Digital Multimeters are all three. And, no other meters offer such performance at such a great price. Introducing Fluke 170 Series Digital Multimeters, Fluke’s smartest, safest and toughest meters inside and out.
The 170 series meters feature tougher body armor, 6000 count resolution display, auto and manual hold, Limited lifetime warranty and are designed to meet the IEC 1010 Safety Standards to CAT IV 600V and CAT III 1000V.
These meters are internally tough with fused current inputs, overvoltage protection and they even protect against measuring voltage if the knob is accidentally set on ohms. On the outside the rugged overmolded body armor case offers constant protection no matter how much you throw them around. For those with accuracy concerns the Fluke 170 series meters are more accurate than ever and have an easy-open battery door where the battery can be changed with out breaking the calibration seal, preventing unnecessary calibration charges.
For overvoltage protection against transient spikes up to 6 kV, and has the safety ratings to prove it. Protect yourself and your technicians working in dangerous environments like three-phase distribution systems such as: single phase commercial lighting, equipment in fixed installations like switch gear and polyphase motors, bus and feeder in industrial plants, lighting systems in larger buildings and appliance outlets with short connections to the service entrance.
The 175 is every bit the meter the 179 is but without temperature measurements and a backlight. The 175 features a 6000 count resolution, .15% accuracy, Min/Max/Average, True-rms, ac voltage and current and is CAT IV rated. Also Touch Hold ©, continuity beeper, diode test, volts, amps, resistance and sleep mode, Includes test leads, 9 volt battery and Limited lifetime warranty.
Model Differences
(All other specifications are the same for each model)
| Features | Model | ||
| 175 | 177 | 179 | |
| Backlight | • | • | |
| Temperature Measurement | • | ||
| Basic DC Voltage Accuracy | 0.15% | 0.09% | 0.09% |
Manufacturer Specs
| AC Amps | Range | 0.01 mA to 10.00A (20A overload for 30 seconds) |
| Accuracy | ± (1.5% of reading plus 3 counts) | |
| Crest Factor | £3 | |
| AC Response | 45 Hz to 1 kHz | |
| DC Amps | Range | 0.01mA to 10.00A (20A overload for 30 seconds) |
| Accuracy | ± (1.0% of reading plus 3 counts) | |
| AC Volts | Range | 0.1 mV to 1000V |
| Accuracy | 45 Hz to 500 Hz 1% of rdg + 3 counts, 500 Hz to 1 kHz 2% of rdg + 3 counts | |
| AC Response | 45 Hz to 1 kHz | |
| DC Volts | Range | 0.1 mV to 1000V |
| Accuracy | ± (0.15% of reading plus 2 counts) | |
| Ohms | Range | 0.1W to 50.00 MW |
| Best Accuracy | ± (0.9% of reading plus 1 count) | |
| Capacitance | Range | 1 nF to 9999 µF |
| Best Accuracy | ± (1.2% of reading plus 2 counts) | |
| Continuity | Beeper guaranteed on <25W, guaranteed off >250W; detects opens or shorts of 250 µs or longer | |
| Hz | Range | Voltage Input: 2 Hz to 100 kHz Current Input: 2 Hz to 30 kHz |
| Accuracy | ± (0.1% of reading plus 1 count) | |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.01 mA |
| Resolution AC Current | 0.01 mA |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.01 mA |
| Resolution DC Current | 0.01 mA |
| Basic Accuracy V DC | 0.15 |
| # Digit Display | 3.75 |
| Counts | 6000 . |
| Backlight | No |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Test Equipment General Attributes |
|
| Unique Features | •Manual and automatic ranging •Display Hold and Auto Hold •Frequency and capacitance measurements •Resistance, continuity and diode measurements •Min-max-average recording •Closed case calibration through front panel •Ergonomic case with integrated protective holster |
| Warranty | 1 LIMITED LIFETIME (1 YEARS) |
| Warranty Details | Limited Lifetime Warranty |
| Safety Approval | CSA, UL |
| Interfaces I/O | Analog Output, Analog Input |
| Product Weight | 0.93 LBS |
| Product Height | 1.69 IN |
| Product Length | 7.28 IN |
| Product Width | 3.54 IN |
| Shipping Weight | 1.7 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.5 IN |
| Shipping Length | 10.98 IN |
| Shipping Width | 6.5 IN |
