Descripción

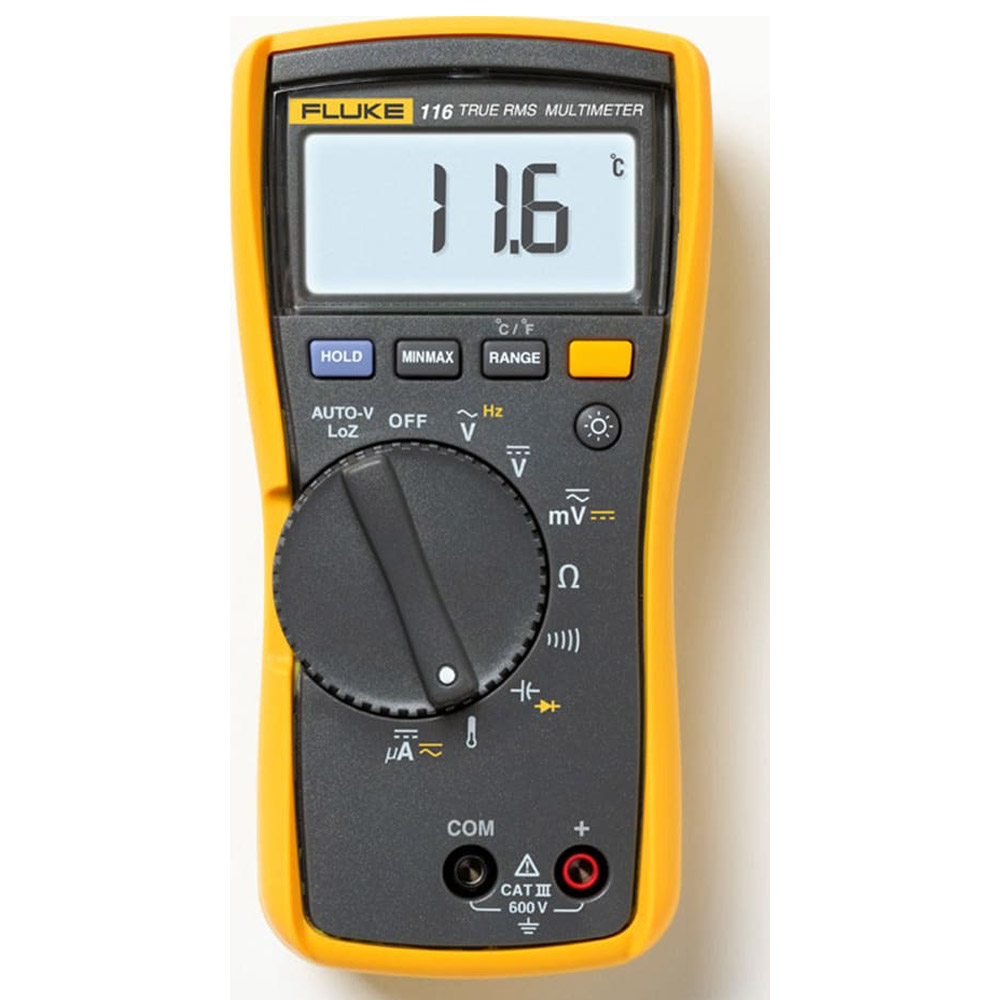

If you are a HVAC professional looking for a powerful yet affordable troubleshooting tool, look no further than the Fluke 116 with built in thermometer. The 6,000 count digital display updates 4 times per second for accurate, timely readings. With 28% larger digits and a large white LED backlight you don’t need to worry about low light conditions. The 116 lets you enjoy up to 400 hours battery life with the installed 9 volt battery. Get your Fluke 116 today and with the 3 year warranty, you are ready to test for years to come.
Designed by electricians. Engineered by Fluke.
Compact true-rms meter for HVAC (heating ventilation air conditioning) troubleshooting. The Fluke 116 was specifically designed for the HVAC professional. It has everything needed in an HVAC meter including temperature and microamp measurements to quickly troubleshoot problems with HVAC equipment and flame sensors.
Also check out the Fluke 114 Electrical Multimeter, the Fluke 115 Multimeter, and the Fluke 117, the Electrician’s Multimeter with Non-contact voltage.
| Feature / Model | 114 | 115 | 116 | 117 |
| Application | Basic Electrical Troubleshooting | Field Service | HVAC/R | Electrician |
| AC/DC Amps | No | Yes | Yes (uA) | Yes |
| Frequency | No | Yes | Yes | Yes |
| Capacitance | No | Yes | Yes | Yes |
| Temperature | No | No | Yes | No |
| Diode Testing | No | Yes | Yes | Yes |
| LoZ (ghost voltage detection) | Yes | No | Yes | Yes |
| VoltAlertTM (non-contact AC voltage detection) | No | No | No | Yes |
Comparison Chart.
| Current | New | ||||||||
| Basic features | 110 | 111 | 112 | 12 | 16 | 114 | 115 | 116 | 117 |
| True RMS readings | AC | AC | AC | AC | AC | AC | AC | ||
| Basic DC accuracy | 0.7% | 0.7% | 0.7% | 0.9% | 0.9% | 0.5% | 0.5% | 0.5% | 0.5% |
| Digits | 3-1/2 | 3-1/2 | 3-1/2 | 3-1/2 | 3-1/2 | 3-1/2 | 3-1/2 | 3-1/2 | 3-1/2 |
| Counts | 6000 | 6000 | 6000 | 4000 | 4000 | 6000 | 6000 | 6000 | 6000 |
| Measurements | |||||||||
| Voltage AC/DC | 600V | 600V | 600V | 600V | 600V | 600V | 600V | 600V | 600V |
| Current AC/DC | 10A | 10A | 200µA | 10A | 600µA | 10A | |||
| Resistance | 40MO | 40MO | 40MO | 40MO | 40MO | 40MO | 40MO | 40MO | 40MO |
| Frequency | 50kHz | 50kHz | 50kHz | 50kHz | 50kHz | 50kHz | |||
| Capacitance | 10mF | 10mF | 10mF | 10mF | 10mF | 10mF | 10mF | 10mF | |
| Temperature | +400°C | +400°C | |||||||
| Display | |||||||||
| Analog bargraph | • | • | • | • | • | • | • | ||
| Backlight | • | • | • | • | • | ||||
| Data storage and exchange | |||||||||
| Min-Max recording | • | • | • | • | • | • | • | • | |
| Display Hold/Auto (Touch) Hold | • | • | • | • | • | • | • | ||
| Other features | |||||||||
| Automatic selection, VChek | • | • | |||||||
| Automatic selection, LoZ | • | • | • | ||||||
| Volt Alert, Non Contact ac voltage detector | • | ||||||||
Manufacturer Specs
| Accuracy is specified for 1 year after calibration, at operating temperatures of 18 °C to 28 °C, with relative humidity at 0 % to 95 %.
The accuracy specifications take the form of: ± ( [ % of Reading ] + [ Counts ] ) |
| Maximum voltage between any terminal and earth ground | 600 V |
| Surge protection | 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2 |
| Display | Digital: 6,000 counts, updates 4/sec |
| Bar graph | 33 segments, updates 32/sec |
| Operating temperature | -10 °C to + 50 °C |
| Storage temperature | -40 °C to + 60 °C |
| Battery | 9 volt Alkaline, NEDA 1604A/IEC 6LR61 |
| Battery life | 400 hours typical, without backlight |
| Measurement | Range | Resolution | Accuracy ± ([% of reading] + [counts]) |
| DC millivolts | 600.0 mV | 0.1 mV | 2.0 % + 3 |
| DC volts | 6.000 V | 0.001 V | |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| Auto volts | 600.0 V | 0.1 V | 2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz) |
| AC millivolts1 true-rms | 600.0 mV | 0.1 mV | 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| AC volts1 true-rms | 6.000 V | 0.001 V | 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| Continuity | 600 Ω | 1 Ω | Beeper on < 20 Ω, off > 250 Ω; detects opens or shorts of 500 µs or longer. |
| Ohms | 600.0 Ω | 0.1 Ω | 0.9 % + 2 |
| 6.000 kΩ | 0.001 kΩ | 0.9 % + 1 | |
| 60.00 kΩ | 0.01 kΩ | ||
| 600.0 kΩ | 0.1 kΩ | ||
| 6.000 MΩ | 0.001 MΩ | ||
| 40.00 MΩ | 0.01 MΩ | 1.5 % + 2 | |
| Diode test | 2.000 V | 0.001 V | 0.9 % + 2 |
| Capacitance | 1000 nF | 1 nF | 1.9 % + 2 |
| 10.00 µF | 0.01 µF | ||
| 100.0 µF | 0.1 µF | ||
| 9999 µF | 1 µF | ||
| 100 µF to 1000 µF | 1.9 % + 2 | ||
| > 1000 µF | 5 % + 20 | ||
| Lo-Z capacitance | 1 nF to 500 µF | 10 % + 2 typical | |
| Temperature2 (Type-K thermocouple) | -40 °C to 400 °C | 0.1 °C | 1 % + 102 |
| -40 °F to 752 °F | 0.2 °F | 1 % + 182 | |
| AC µamps true-rms (45 Hz to 500 Hz) |
600.0 µA | 0.1 µA | 1.5 % + 3 (2.5 % + 3 > 500 Hz) |
| DC µamps | 600.0 µA | 0.1 µA | 1.0 % + 2 |
| Hz (V or A input)3 | 99.99 Hz | 0.01 Hz | 0.1 % + 2 |
| 999.9 Hz | 0.1 Hz | ||
| 9.999 kHz | 0.001 kHz | ||
| 50.00 kHz | 0.01 kHz |
| 1 | All ac voltage ranges are specified from 1 % to 100% of range. Because inputs below 1 % of range are not specified, it is normal for this and other true-rms meters to display non-zero readings when the test leads are disconnected from a circuit or are shorted together. For volts, crest factor of = 3 at 4000 counts, decreasing linearly to 1.5 at full scale. AC volts is ac-coupled. Auto-V LoZ, and ac mV are dc-coupled. |
| 2 | Temperature uncertainty (accuracy) does not include the error of the thermocouple probe. |
| 3 | Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current. |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Resolution AC Volts | 0.1 mV |
| Maximum Voltage DC | 600 V |
| Resolution DC Volts | 0.1 mV |
| Maximum Current AC | 600 uA (0.0006 A) |
| Minimum Current AC | 0.1 uA (0.00010 mA) |
| Resolution AC Current | 0.1 uA (0.00010 mA) |
| Maximum Current DC | 600 uA (0.0006 A) |
| Minimum Current DC | 0.1 uA (0.00010 mA) |
| Resolution DC Current | 0.1 uA (0.00010 mA) |
| Basic Accuracy V DC | 0.5% |
| # Digit Display | 3.5 |
| Counts | 6000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | No |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | III |
| CAT Voltage | 600 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | No |
Test Equipment General Attributes |
|
| Unique Features | •Built-in thermometer for HVAC applications •Microamps to test flame sensors •Low input impedance: helps prevent false readings due to ghost voltage •Large white LED backlight to work in poorly lit areas •Resistance, continuity, frequency and capacitance •Min/Max/Average with elapsed time to record signal fluctuations •Compact ergonomic design for one-handed operation •Compatible with optional magnetic hanger (ToolPak™) •CAT III 600 V safety rated |
| Warranty | 3 YEARS |
| Safety Approval | CSA, UL |
| Interfaces I/O | Analog Output, Analog Input |
| IP Rating | IP42 |
| Product Weight | 1.21 LBS |
| Product Height | 1.82 IN |
| Product Length | 6.57 IN |
| Product Width | 3.31 IN |
| Shipping Weight | 1.34 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Singapore |
| Shipping Height | 5.91 IN |
| UPC | 095969324199 |
| Shipping Length | 12.99 IN |
| Shipping Width | 11.02 IN |
