Descripción

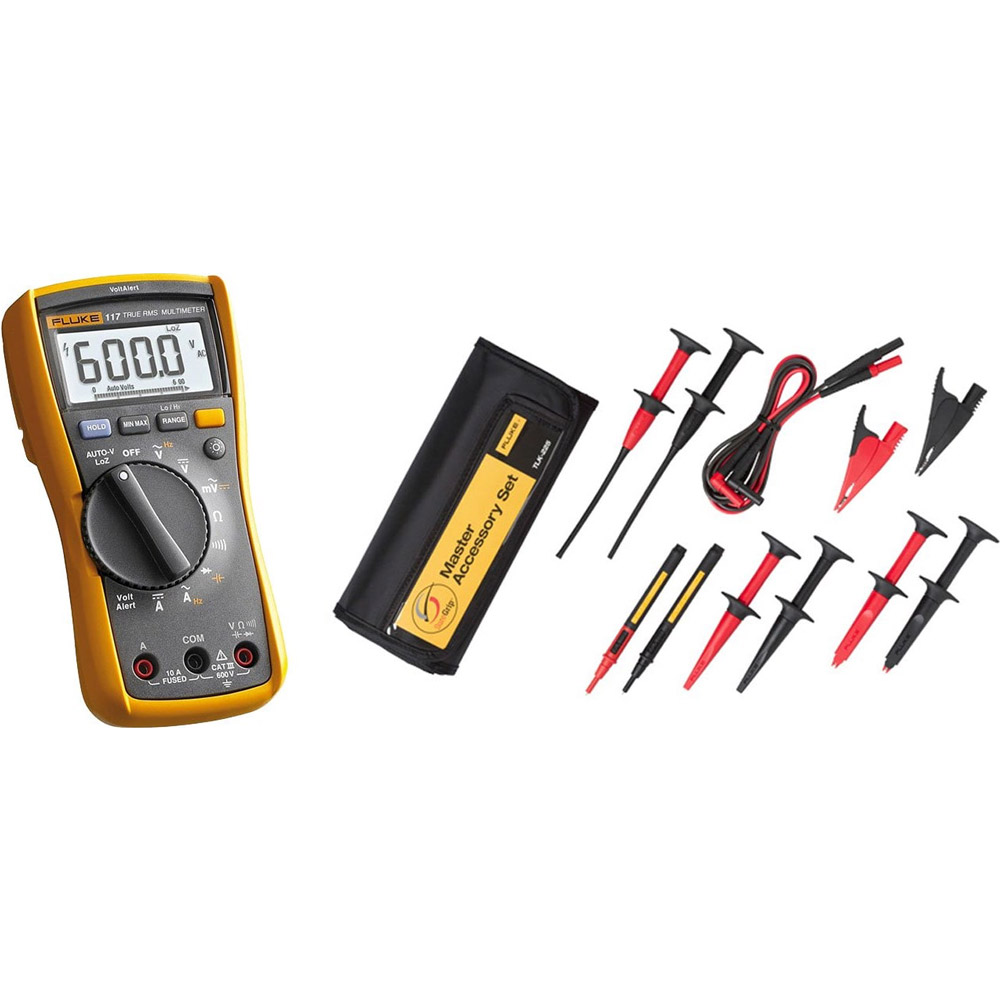

Fluke 117 Electrician’s Multimeter with Non-Contact Voltage Detection
For the most demanding of situations, the Fluke 117 hand held digital multimeter is the choice for you. It’s no coincidence that professionals testing in commercial settings, hospitals, and schools look to this meter. The 6,000 count display updates 4 times per second, and has a large white LED backlight for low light conditions. The bar graph has 33 segments and updates 32 times per second. The installed 9V battery averages 400 hours without use of backlight. With VoltAlert technology for non-contact voltage detection and a 3 year warranty, the 117 will be in your arsenal for a long time.
Designed by electricians. Engineered by Fluke.
Compact true-rms meter for commercial applications. The Fluke 117 is the ideal meter for demanding settings like commercial buildings, hospitals and schools. The 117 includes integrated non-contact voltage detection to help get the job done faster.
Fluke TLK-225 SureGrip Master Accessory Set
Special value SureGrip Master Set is a complete selection of test tool accessories for any electrical or industrial application. Includes a convenient roll-up pouch that neatly stores each accessory. 1000 V CAT III, 600 V CAT IV rated.
Manufacturer Specs
| Fluke 117 General Specifications | |
| Maximum voltage between any terminal and earth ground | 600 V |
| Surge protection | 6 kV peak per IEC 61010-1 600 V CAT III, Pollution Degree 2 |
| Fuse for A input | 11 A, 1000 V FAST Fuse (Fluke PN 803293) |
| Display | Digital: 6,000 counts, updates 4/sec |
| Bar graph | 33 segments, updates 32/sec |
| Operating temperature | -10 °C to + 50 °C |
| Storage temperature | -40 °C to + 60 °C |
| Battery | 9 volt Alkaline, NEDA 1604A/IEC 6LR61 |
| Battery life | 400 hours typical, without backlight |
| Measurement | Range | Resolution | Accuracy ± ([% of reading] + [counts]) |
| DC millivolts | 600.0 mV | 0.1 mV | 0.5 % + 2 |
| DC volts | 6.000 V | 0.001 V | 0.5 % + 2 |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| Auto volts | 600.0 V | 0.1 V | 2.0 % + 3 (dc, 45 Hz to 500 Hz) 4.0 % + 3 (500 Hz to 1 kHz) |
| AC millivolts1 true-rms | 600.0 mV | 0.1 mV | 1.0 % + 3 (dc, 45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| AC volts1 true-rms | 6.000 V | 0.001 V | 1.0 % + 3 (45 Hz to 500 Hz) 2.0 % + 3 (500 Hz to 1 kHz) |
| 60.00 V | 0.01 V | ||
| 600.0 V | 0.1 V | ||
| Continuity | 600Ω | 1Ω | Beeper on < 20Ω off > 250Ω; detects opens or shorts of 500μs or longer. |
| Ohms | 600.0Ω | 0.1Ω | 0.9 % + 2 |
| 6.000 kΩ | 0.001 kΩ | 0.9 % + 1 | |
| 60.00 kΩ | 0.01 kΩ | ||
| 600.0kΩ | 0.1kΩ | ||
| 6.000MΩ | 0.001MΩ | ||
| 40.00MΩ | 0.01MΩ | 1.5 % + 2 | |
| Diode test | 2.000 V | 0.001 V | 0.9 % + 2 |
| Capacitance | 1000 nF | 1 nF | 1.9 % + 2 |
| 10.00 µF | 0.01 µF | ||
| 100.0 µF | 0.1 µF | ||
| 9999 µF | 1 µF | ||
| 100 µF to 1000 µF | 1.9 % + 2 | ||
| > 1000 µF | 5 % + 20 | ||
| Lo-Z capacitance | 1 nF to 500 µF | 10 % + 2 typical | |
| AC amps true-rms (45 Hz to 500 Hz) |
6.000 A | 0.001 A | 1.5 % + 3 |
| 10.00 A | 0.01 A | ||
| 20 A overload for 30 seconds max. | |||
| DC amps | 6.000 A | 0.001 A | 1.0 % + 3 |
| 10.00 A | 0.01 A | ||
| 20 A overload for 30 seconds max. | |||
| Hz (V or A input)2 | 99.99 Hz | 0.01 Hz | 0.1 % + 2 |
| 999.9 Hz | 0.1 Hz | ||
| 9.999 kHz | 0.001 kHz | ||
| 50.00 kHz | 0.01 kHz | ||
| Notes: 1: All ac voltage ranges except Auto-V/LoZ are specified from 1 % to 100 % of range. Auto-V/LoZ is specified from 0.0 V. Because inputs below 1 % of range are not specified, it is normal for this and other true-rms meters to display non- zero readings when the test leads are disconnected from a circuit or are shorted together. For volts, crest factor of = 3 at 4000 counts, decreasing linearly to 1.5 at full scale. AC volts is ac-coupled. Auto-V LoZ, and ac mV are dc-coupled. 2: Frequency is ac coupled, 5 Hz to 50 kHz for ac voltage. Frequency is dc coupled, 45 Hz to 5 kHz for ac current. |
|||
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| True RMS | Yes |
| Backlight | Yes |
| Resistance | Yes |
| Capacitance | Yes |
| CAT Rating | IV |
| CAT Voltage | 300 V, 600 V |
Test Equipment General Attributes |
|
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| Country of Origin | China |
