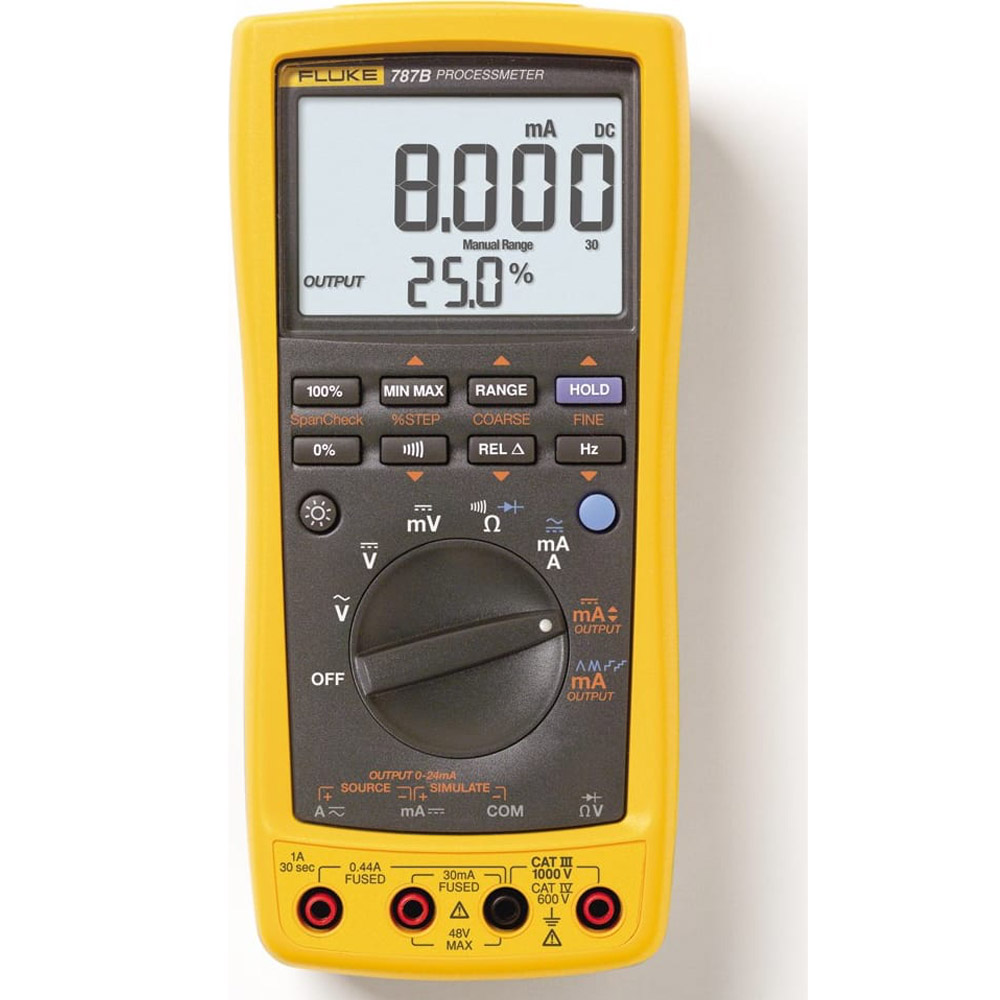

Fluke 787B – ProcessMeter
- Simultaneous mA and % of scale readout
- Min/Max/Average/Hold/Relative modes
- Externally accessible battery for easy battery changes
The Fluke 787B ProcessMeter doubles troubleshooting capabilities by combining the power of a safety rated digital multimeter and mA loop calibrator into a single, compact test tool. Based on the trusted measurement capabilities of the Fluke 87 DMM, the 787B adds the ability to measure, source and simulate mA with the accuracy and resolution you would expect from a Fluke mA loop calibrator, giving you the ideal tool for troubleshooting and calibrating current loop applications.
With Fluke Connect mobile app and desktop software compatibility technicians can wirelessly monitor, log, and share data from the field with their team anytime, from anywhere.
Fluke Connect
Preventive maintenance simplified. Rework eliminated.
Save time and improve the reliability of your maintenance data by wirelessly syncing measurements using the Fluke Connect system.
- Eliminate data-entry errors by saving measurements directly from the tool and associating them with the work order, report or asset record.
- Maximize uptime and make confident maintenance decisions with data you can trust and trace.
- Access baseline, historical and current measurements by asset.
- Move away from clipboards, notebooks and multiple spreadsheets with a wireless one-step measurement transfer.
- Share your measurement data using ShareLive TM video calls and emails.
- 787B and 789 ProcessMeter is part of a growing system of connected test tools and equipment maintenance software. Visit the website to learn more about the Fluke Connect system.
Manufacturer Specs
| Measurement function | Range and resolution | Best accuracy (% of reading + LSD) |
|
| V dc | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V |
0.1 % + 1 | |
| V ac (true-rms) | 400.0 mV, 4.000 V, 40.00 V, 400.0 V, 1000 V |
0.7 % + 2 | |
| mA dc | 30.000 mA | .05 % + 2 | |
| A dc | 1.000 A (0.440 A continuous) | 0.2 % + 2 | |
| A ac | 1.000 A (0.440 A continuous) | 1 % + 2 | |
| Resistance | 400.0 Ohms, 4.000 k, 40.00 k, 400.0 k, 4.0 M, 40 M |
0.2 % + 1 | |
| Frequency (0.5 Hz to 20 kHz) |
199.99 Hz, 1999.9 Hz, 19.999 kHz | .005 % + 1 | |
| Diode test | 2.000 V (shows diode voltage drop) | 2 % + 1 | |
| Continuity | Beeps for resistance < approx. 100 ohms |
||
| Output function | Range and resolution | Drive capability | Accuracy (% of span) |
| DC current output (Internal battery operation) |
0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA |
24 V compliance or, 1,200 ohms, @ 20 mA |
.05 % |
| DC current simulate (Ext. 15 V to 48 V loop supply) |
0.000 to 20.000 mA or 4.000 to 20.000 mA, (selectable at power-up) Over-range to 24.000 mA |
1000 ohms, @ 20 mA | .05 % |
| 24 V loop supply* | Minimum 24 V | 250 ohms @ 20 mA | > 24 V |
| Current adjustment modes | Manual: Coarse, Fine, 25 % and 100 % step Automatic: Slow Ramp, Fast Ramp, 25 % step |
||
| Temperature range of 18 °C to 28 °C, for one year after calibration *24 V Loop Supply available on 789 ProcessMeter™ only |
|||
| General specifications | |||
| Maximum voltage applied between any jack and earth ground |
1000 V RMS | ||
| Storage temperature | -40 °C to 60 °C | ||
| Operating temperature | -20 °C to 55 °C | ||
| Temperature coefficient | 0.05 x (specified accuracy) per °C (for temperatures < 18 °C or > 28 °C) | ||
| Relative humidity | 95 % up to 30 °C; 75 % up to 40 °C; 45 % up to 50 °C; 35 % up to 55 °C | ||
| Vibration | Random, 2 g, 5-500 Hz | ||
| Shock | 1 meter drop test | ||
| Safety | IEC61010-1, Pollution Degree 2/IEC61010-2-033, CAT IV 600 V/CAT III 1000 V | ||
| Size (HxWxL) | 50 mm x 100 mm x 203 mm (1.97 in x 3.94 in x 8.00 in) | ||
| Weight | 600 g (1.3 lbs) | ||
| Battery: | Four AA alkaline batteries | ||
| Battery life | 140 hours typical (measurement), 10 hours typical (sourcing 12 mA) | ||
| Warranty | Three years | ||
Tech Specs
Process / Calibration/Multifunction Calibrators Template |
|
|---|---|
| Type | Hand Held |
| Measure Voltage | Yes |
| Voltage Measurement Max | 1000 V |
| Voltage Measurement Min | 1 mV (0.001 V) |
| Source/Simulate DC Current | Yes |
| Measure DC Current | Yes |
| Current Measurement Max | 1 A (1000 mA) |
| Current Measurement Min | 0.001 mA |
| Source/Simulate Resistance | No |
| Measure Resistance | Yes |
| Resistance Measurement Max | 40 M Ohms (40000000 Ohms) |
| Resistance Measurement Min | 0.1 Ohms |
| Measure Frequency | Yes |
| Frequency Measurement Max | 20 kHz (20000 Hz) |
| Frequency Measurement Min | 0.01 Hz |
| Measure Thermocouples | No |
| Source/Simulate Pressure | No |
| Pressure Modules Available | No |
| Hart Compatible | No |
| FieldBus Compatible | No |
| Backlighted | Yes |
| Graphical Screen | No |
| Intrinsically Safe(Calibrators) | No |
Process / Calibration/Signal Calibrators/Loop Calibrators Template |
|
| Measure RTD | No |
Test Equipment General Attributes |
|
| Unique Features | 787 ProcessMeter combines a DMM and a Loop Calibrator in one rugged, handheld tool. 1000V overload protection on V, ohms. 25% Manual Step plus Auto Step and Auto Ramp on mA output.
787B version adds Fluke Connect capability |
| Warranty | 3 YEARS |
| Safety Approval | CSA |
| Product Weight | 13 OUNCES (0.812 LBS) |
| Product Height | 1.25 IN |
| Product Length | 7.36 IN |
| Product Width | 3.4 IN |
| Data Logging | No |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 3.40 IN |
| Shipping Length | 11.60 IN |
| Shipping Width | 6.25 IN |
