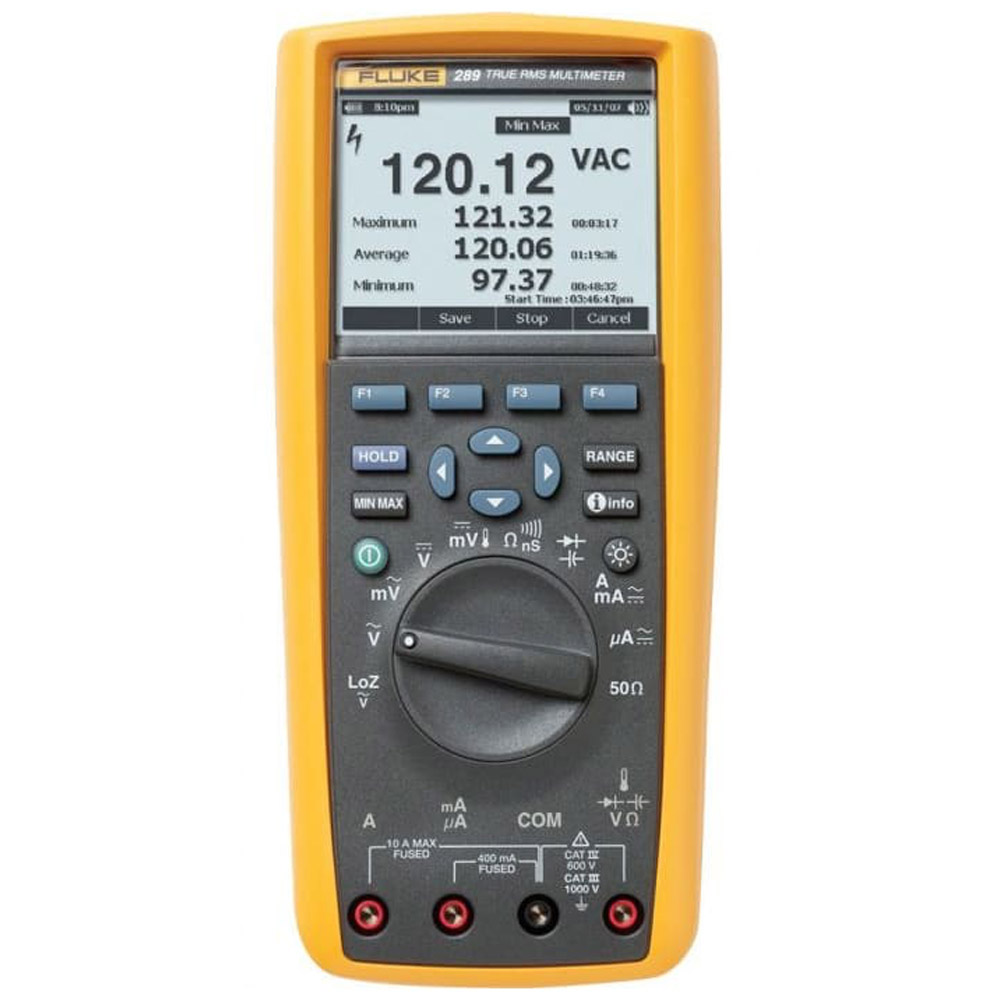

The Fluke 289 is the top of the line handheld multimeter on the market. Hands down this unit is tops in its class with a 50,000 count display, usb interface, advanced datalogging, and much more. Find out why this unit is considered to be one of the best multimeters ever made period.
The Fluke 289 Handheld Multimeter is one of the most powerful multimeters out there. The popular TrendCapture feature is a trend plot style graphical representation of a logged session that the meter has recorded, which is viewable right on the meter as soon as you complete your recording session. There’s no need to download and wait to see data, even after a 200 hour logging session. You just view it on location at the moment you end the session. You can even zoom in on the data at 5X magnification right on the meter! With multiple on-screen displays, a True-rms AC Bandwidth of 100kHz, a logging memory of up to 10,000 readings, a low pass filter, and a minimum 100 hours battery life, you are ready to take on any job.
Find Little Problems Before They Become Big Ones.
The industrial meter for demanding users.
New diagnostic functionality for maximizing productivity in the plant. The new 289 is the next generation high performance industrial logging multimeter designed to solve complex problems in electronics, plant automation, power distribution, and electro-mechanical equipment. With the ability to log data and review it graphically on-screen, you can solve problems faster and help minimize downtime. Let the new 289 be your watchdog for systems or processes while you are off solving other problems.
Be sure to also check out the Fluke 287 True-rms Electronics Logging Multimeter with TrendCapture designed for electronics professionals.
Maximize productivity with the combined Fluke 289 and FlukeView forms combo kit. With built-in data logger and TrendCapture capability, the 289 helps you track down elusive, intermittent problems, monitoring equipment with any of its functions while you do other jobs. Overlay your logged data from six meters or six time periods to find cause and effect relationships or for condition monitoring applications in FVF software. Turn your data into meaningful graphs and tables for a professional report. The 289/FVF combo kit gives you a practical & affordable approach to predictive maintenance.
Manufacturer Specs
| DC volts | 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V @ 0.025% accuracy |
| AC volts | 50.000 mV,500.00 mV, 5.0000 V, 50.000 V, 500.00 V, 1000.0V @ 0.4% accuracy (true-rms) |
| DC current | 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A @ 0.15 % accuracy |
| AC current | 500.00 µA, 5000.0 µA, 50.000 mA, 400.00 mA, 5.0000 A, 10.000 A @ 0.7% accuracy (true-rms) |
| Temperature (excluding probe) |
-200.0 °C to 1350.0 °C (-328.0 °F to 2462.0 °F) @ 1.0 % accuracy |
| Resistance | 50.000 W (289 only), 500.00 W, 5.0000 kW, 50.000 kW, 500.00 kW, 5.0000 MW, 50.00 MW, 500.0 MW @ 0.05 % accuracy |
| Capacitance | 1.000 nF,10.00 nF 100.0 nF, 1.000 µF, 10.00 µF, 100.0 µF, 1000 µF, 10.00 mF, 100.00 mF @ 1.0 % accuracy |
| Frequency | 99.999 Hz, 999.99 Hz, 9.9999 kHz, 99.999 kHz, 999.99 kHz @ 0.005 % + 1 accuracy |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| Measures DC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Resolution AC Volts | 1 uV (0.001 mV) |
| Maximum Voltage DC | 1000 V |
| Resolution DC Volts | 1 uV (0.001 mV) |
| Maximum Current AC | 10 A |
| Minimum Current AC | 0.01 uA (0.00001 mA) |
| Resolution AC Current | 0.01 uA (0.00001 mA) |
| Maximum Current DC | 10 A |
| Minimum Current DC | 0.01 uA (0.00001 mA) |
| Resolution DC Current | 0.01 uA (0.00001 mA) |
| Basic Accuracy V DC | .025% |
| # Digit Display | 4.5 |
| Counts | 50000 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | Yes |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V |
| Intrinsically Safe | No |
| Peak Hold | Yes |
| Overload Protector | Yes |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | Yes |
| Low-Pass Filter | Yes |
Test Equipment General Attributes |
|
| Unique Features | Drop tested to 3 meters.
Logging function with TrendCapture. Log data continuously for over 200 hours storing up to 10,000 readings. Low impedance voltage function prevents false readings due to “ghost voltage.” Low Pass Filter for accurate voltage and frequency measurements on adjustable speed motor drives. |
| Warranty | 10 YEARS |
| Warranty Details | Limited lifetime warranty, Limited Lifetime Warranty |
| Safety Approval | CSA |
| Interfaces I/O | IR |
| Product Weight | 1.6 LBS |
| Product Height | 4.53 IN |
| Product Length | 3.94 IN |
| Product Width | 1.08 IN |
| Shipping Weight | 1.76 LBS |
| Data Logging | Yes |
| Calibration Included | Factory Calibration |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 4.53 IN |
| UPC | 095969417860 |
| Shipping Length | 3.94 IN |
| Shipping Width | 1.08 IN |
