Descripción

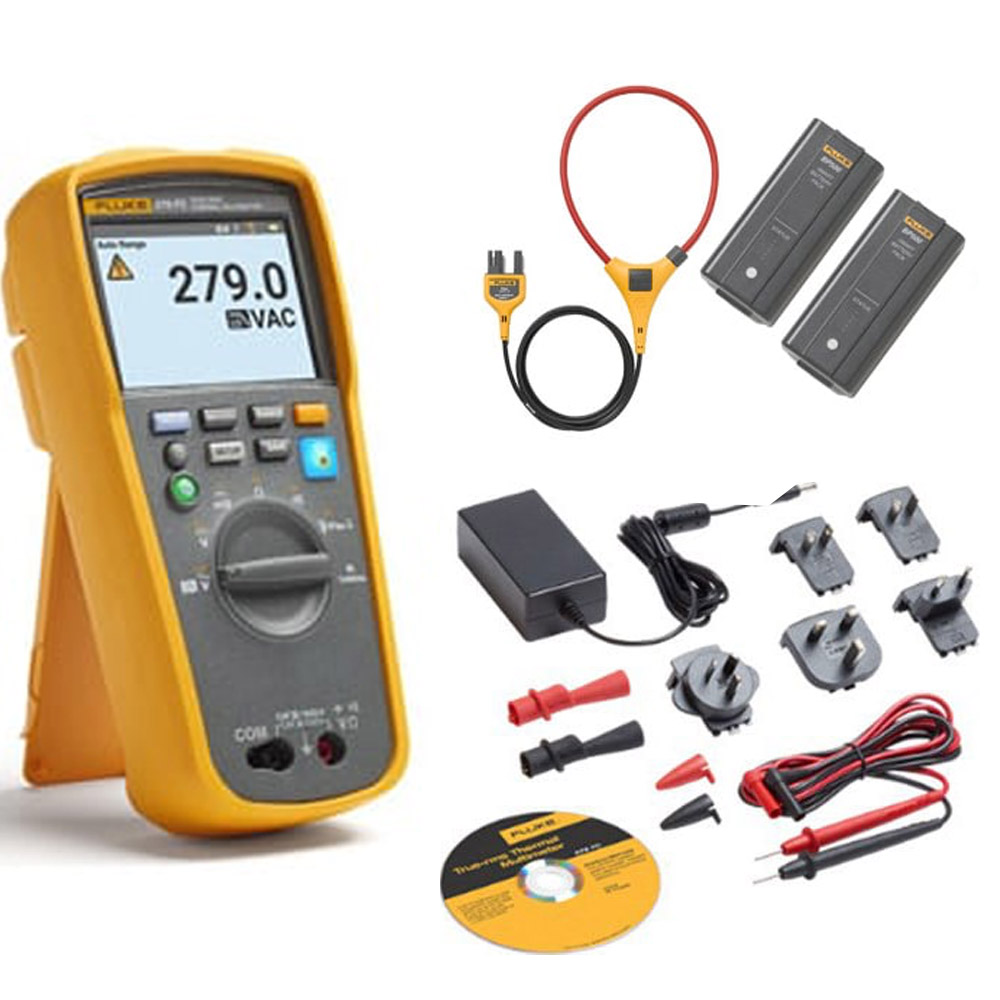

Fluke 279FC I/B – Wireless TRMS Thermal Multimeter with iFlex and EXTRA Battery
- Thermal Resolution: 80 X 60 8 Hz with 3.5″ LCD Display
- Temperature Range: -10 °C to 200 °C (14 °F to 392 °F)
- Voltage/Resistance: AC/DC 1000 V / 50 MΩ
- Memory Storage: Approximately 100 images (internal)
Scan with the thermal imager to find electrical problems rapidly and from a safe distance. Check hot spots on high-voltage equipment and transformers; identify heating of fuses, wires, insulators, connectors, splices and switches.
Work in places you couldn’t reach before
The iFlex flexible wireless current probe lets you work in tight, hard-to-reach spaces. Use it to make accurate current measurements up to 2500 A, in spaces that would be impossible to reach with a conventional clamp.
Fix almost anything, anywhere
The 279 FC is a full-featured, true-RMS digital multimeter. All the basics you need in a DMM, plus a wealth of advanced capabilities: motor drive (ASD) measurements, min/max recording, display hold, and more. Safety rated 1000 V CAT III, 600 V CAT IV.
Find the next problem before it happens
With Fluke Connect you can quickly and easily save and wirelessly transmit all your measurements to a smartphone and to the cloud so you can view, graph, share, and store measurements for trending and further analysis.
Manufacturer Specs
| General Specifications | |
| DMM | |
| Basic dc accuracy | 0.09% |
| Bandwidth | 1% 45 Hz to 65 Hz, full time low pass filter |
| Voltage | ac/dc 1000 V |
| Current ac | iFlex Flexible Current Probe (included with the 279 FC/iFlex) |
| Resistance | 50 MΩ |
| Frequency | 100 kHz |
| Capacitance | 9,999 µF |
| Continuity with beeper | Yes |
| Diode test | Yes |
| Min/Max recording | Yes |
| Display Hold | Yes |
| Infrared camera | |
| Infrared resolution | 80 x 60 |
| Image capture frequency | 8 Hz |
| Field of View | 36° (w) x 27° (h) |
| NETD | ≤200 mK |
| Infrared spectral band | 7.5 to 14 microns |
| Center point | Yes (with center point temp) |
| Focus mechanism | Fixed focus |
| Temperature Range (selectable °C and °F) | -10 °C to 200 °C (14 °F to 392 °F) Accuracy: ±5 °C (41 °F) or (±5% as tested) |
| Emissivity | 0.95 fixed |
| Background compensation | 20 °C fixed |
| Memory storage | Approximately 100 images (internal) |
| File format | Non-radiometric .is2 |
| General specifications | |
| Battery type | Rechargeable lithium ion battery (charge time: 4.5 hours) |
| Operating temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Storage temperature | -20 ºC to 60 ºC (-4 °F to 140 °F) |
| Relative humidity | 0% to 90% (0 °C to 35 °C) (32 °F to 95 °F) 0% to 75% (35 °C to 40 °C) (95 °F to 104 °F) 0% to 45% (40 °C to 50 °C) (104 °F to 122 °F) |
| Altitude | 2,000 meters (6,561 feet) |
| Temperature coefficient | Add 0.1 x specified accuracy for each °C above 28 °C or below 18 °C (°F above 82 °F or below 64° F) |
| Ingress Protection | (IP) IP40 (non-operating) |
| Wireless frequency | 2.4 GHz ISM Band, 20 meter range |
| Certifications | CE, CSA, FCC |
| Safety compliance | IEC 61010-1: Pollution degree 2; IEC 61010-2-033: CAT III 1000 V/CAT IV 600 V |
| EMC | EN 61326-1:2012 |
| Size | 215.9 x 93.9 x 57.1 mm (8.5 x 3.7 x 2.25 in) |
| Weight | 0.793 kg (1.75 lb) |
| Warranty | Limited three-year warranty |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | Yes |
| True RMS | Yes |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Minimum Current AC | 1 A (1000 mA) |
| Basic Accuracy V DC | 1.0% |
| Backlight | Yes |
| Manual/Autoranging | Auto-ranging |
| Resistance | Yes |
| Frequency | Yes |
| Capacitance | Yes |
| Temperature | Yes |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 600 V |
| Low-Pass Filter | Yes |
Thermal Imagers/Building and Industrial Thermal Imagers Template |
|
| Detector Size | 80 x 60 Sensor |
| Thermal Sensitivity | 200 mK (NETD) |
| Temperature Range Max | 392 F |
| Temperature Range Min | 14 F |
| Image Frequency | 8 Hz |
| Field of View | 36×27 Degrees |
| Screen Size | 3.5 IN |
| IR/Overlay Fusion Image | No |
| Video Output | No |
| Focus | Fixed |
| Laser Spot | No |
| Picture in Picture | No |
| Video Recording | No |
| Moveable Spots | No |
| Touch Screen Display | No |
| Accuracy | 5%C or 5% |
| Battery operating time Continuous | 10 HR |
| Camera Light | No |
| IR Digital Zoom | No |
| Voice Annotation | No |
Test Equipment General Attributes |
|
| Unique Features | DMM with LoZ, Capacitance, Diode. Save up to 100 measurements within the DMM. Ability to share measurements with Fluke Connect Large 3.5 in Display for greater visibility Rechargeable LI-ion battery with continuous operating time greater than 10 HRS |
| Warranty | 3 YEARS |
| IP Rating | IP40 |
| Product Height | 10.00 IN |
| Product Length | 11.00 IN |
| Product Width | 5.00 IN |
| Shipping Weight | 1.75 LBS |
| HTS/Schedule B Number | 9030.32.0000. |
| ECCN Number | 6A993 |
| Battery Type | Li-ion |
| Power Supply Voltage | Battery Powered |
| Country of Origin | United States |
| Shipping Height | 10.00 IN |
| Shipping Length | 11.00 IN |
| Shipping Width | 5.00 IN |
