Fluke 190-202/AM ScopeMeter Series II

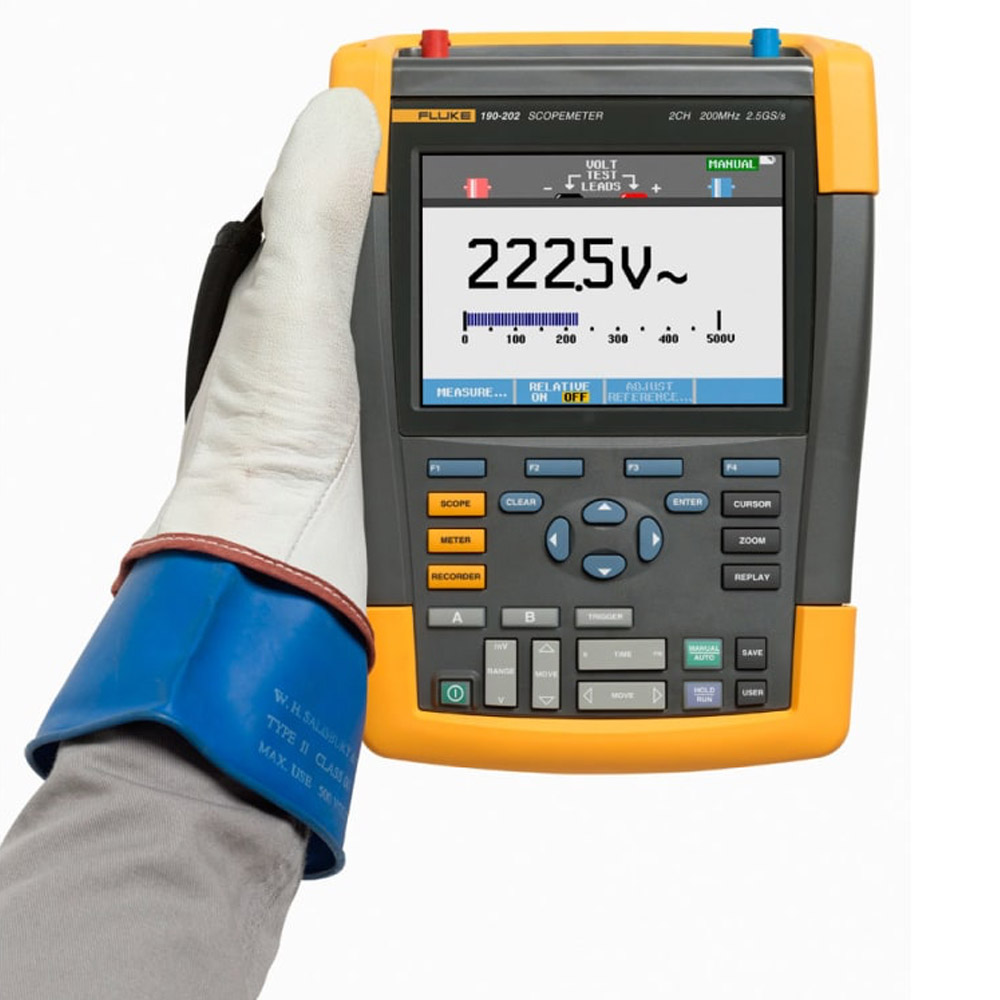

The Fluke 190-202/AM is one of the middle ranged offerings in the popular 190 Series II line of color scopemeters. The 190-202/AM has 2 channels, a bandwidth of 200MHz, and a real-time sampling rate of 2.5 GS/s. A combination of the power of a high performance oscilloscope, multimeter and paperless recorder, that is easy to use. As do all the 2 channel models in this series, The 190-202/AM comes complete with one red and one blue VPS410 Voltage Probe Set and everything else required for use.
Fluke 190 Series II Scopemeter Go Where Scopes Could Never Go Before.
As the first four-channel portable scopes safety rated CAT III 1000V / CAT IV 600V, the new Fluke ScopeMeter 190 Series II combines an unprecedented level of performance, ruggedness, and portability. You can choose from 100MHz or 200MHz bandwidth models, both with real-time sampling rates up to 2.5 GS/s and 400 ps resolution to capture noise and other disturbances. Both models feature deep memory?up to 10,000 samples per channel? so you can examine very small parts of the waveform in detail. And both are IP-51 rated to withstand dust, drips, humidity, and wide temperature variations.
See More, Fix More with the New Four-Channel CAT IV Rated Fluke ScopeMeter 190 Series II
The new Fluke ScopeMeter 190-104 (100MHz) and 190-204 (200MHz) combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeters go into harsh, dirty, and hazardous industrial conditions to test everything from microelectronics to power electronics applications.
Gain Four Times the Diagnostic Power Plus CAT IV Safety Rating
The new Fluke ScopeMeter 190 Series II portable scopes are double-insulated four-channel floating oscilloscopes safety rated for measurements in CAT III 1000V/CAT IV 600V environments.
Three-dimensional testing for industrial systems
Visual:
Inspect input signals, output feedback loops or safety interlocks simultaneously to find a range of problems including:
- Circuit voltage/current overloading
- Signal timing measurements and synchronization issues
- Attenuation/input impedance mismatch
- Signal fluctuation/drift
Three-phase testing for diagnosing VSD, power inverters, and converters »
Visual:
Take advantage of four channels to test variable frequency drive and inverter power electronics technology used in wind energy and transportation applications:
- Test for harmonics, transients and loads in three-phase power input
- Troubleshoot dc to ac converters for faulty IGBT gates.
- Test PWM output for reflections and transients
Safely measure from mV to kV
Standard probes that cover a wide application range from mV to kV prepare you for anything from micro-electronics to heavy duty medium voltage electrical applications. Independent isolated inputs eliminate the risk of accidental ground short circuits by allowing you to make measurements in mixed circuits with separate ground references.
Take on the Harshest Conditions with the only IP-51-rated Scope on the Market
Rugged and shock-proof, all ScopeMeter portable oscilloscopes are built for harsh environments. Their sealed cases protect them from dust, water vapor, drips, humidity and airborne pollutants, ensuring reliable accurate performance every time you need them.
Work a Full Shift on a Single Charge
New high-performance batteries take advantage of Li-ion technology to keep you going strong for seven hours. And with the easy-access battery door you can make battery swaps fast.
Capture and Share Waveforms Easily with New USB connectivity
Two USP ports, electrically isolated from measurement input circuits offer you easy USB connectivity to a PC or USB memory devices. Store unlimited waveform, screen captures or instrument seTups to a USB memory device. Connect to a PC USB interface to transfer and archive critical measurement data using FlukeView software for windows.
See a Stable Display Instantly with Connect-and-View Triggering
Connect-and-View automatically sets up correct triggering by recognizing signal patterns. Without touching a button, you get a stable, reliable, and repeatable display of virtually any signal including motor drive and control signals. Expedites measuring several test-points in rapid succession.
Record Up to 48 Hours of High-Resolution Waveforms with ScopeRecord
ScopeRecord memory stores up to 27,000 data points per channel, capturing intermittent and fast glitches. (Two sets of multiple-channel recordings can be stored for later analysis.)
Stores events like motion profiles, UPS, power supply, and motor start-ups With the Stop-on-Trigger mode, the ScopeMeter automatically recognizes a power failure and stores the waveform data preceding it With the waveform zoom (up to 100x) you can look at the smallest details, like individual power cycles
| Features | 190-062 | 190-102 | 190-202 | 190-104 | 190-204 |
| Bandwidth (MHz) | 60 | 100 | 200 | 100 | 200 |
| Scope inputs | 2 | 2 | 2 | 4 | 4 |
| Dedicated DMM | 1 | 1 | 1 | — | — |
| Dual Input Trendplot | • | • | • | — | — |
| Four Input Trendplot | — | — | — | • | • |
| ScopeRecord Mode | • | • | • | • | • |
| Automatic Capture and Replay Mode | • | • | • | • | • |
| Cursors | • | • | • | • | • |
| Zoom | • | • | • | • | • |
| Bus Health Test Mode | — | — | — | — | — |
| Advanced power measurements | • | • | • | • | • |
| EN61010-1 CAT IV Safety Rating | 600 V | 600 V | 600 V | 600 V | 600 V |
| EN61010-1 CAT III Safety Rating | 1000 V | 1000 V | 1000 V | 1000 V | 1000 V |
| Battery | 4 hour Li-ion (8 hour Opt) | 4 hour Li-ion (8 hour Opt) | 4 hour Li-ion (8 hour Opt) | 7 hour Li-ion | 7 hour Li-ion |
| Optical RS-232 | — | — | — | — | — |
| Isolated USB PC Interface | • | • | • | • | • |
| Isolated USB memory port | • | • | • | • | • |
Manufacturer Specs
| Bandwidth | |
| Fluke 190-204: | 200 MHz |
| Fluke 190-202: | 200 MHz |
| Fluke 190-104: | 100 MHz |
| Fluke 190-102: | 100 MHz |
| Fluke 190-062: | 60 MHz |
| Number of Channels | |
| Fluke 190-204: | 200 MHz: 4 channels |
| Fluke 190-202: | 200 MHz: 2 channels |
| Fluke 190-104: | 100 MHz: 4 channels |
| Fluke 190-102: | 100 MHz: 2 channels |
| Fluke 190-062: | 60 MHz: 2 channels |
| Real-time sample rate | |
| Fluke 190-204: | 2.5 GS/s |
| Fluke 190-202: | 2.5 GS/s |
| Fluke 190-104: | 1.25 GS/s |
| Fluke 190-102: | 1.25 GS/s |
| Fluke 190-062: | 625 MS/s |
| Inputs | 4 scope or 2 scope plus DMM input |
| Independently floating isolated inputs | Up to 1000 V CAT III/600 V CAT IV between inputs, references and ground |
| Timebase range | 5 ns – 2 min/div |
| Input sensitivity | 2 mV-100 V/div |
| Trigger types | connect-and-View, Free Run, Single Shot, Edge, Delay, Video, Selectable pulse width and External Dual slope trigger and Event trigger (n-cycle) |
| Glitch capture | 8 ns |
| Scope measurements | Cursor: 7 Automatic: 30 |
| Maximum record length | ScopeRecord mode: 27,500 pts per input Scope mode: 10,000 pts per input |
| Memory | Screens + Setups: 15 Replay + Setups: 2 |
| Display | 153 mm full color LCD with fast update rate |
| Persistence | Digital persistence giving analog oscilloscope-like waveform decay |
| Waveform Compare | Waveform reference with automatic Pass/Fail testing |
| Environmental Specifications | |
| Operating Temperature | 0°C to 40°C Including Batteries 0°C to 50°C Excluding Batteries |
| Storage Temperature | -20°C to +60°C |
| Operating Altitude | Up to 2,000 m (6666 ft) for CAT IV 600 V, CAT III 1000 V; up to 3,000 m (10,000 ft) for CAT III 600 V, CAT II 1000 V |
| Safety Specifications | |
| Electrical Safety | 1,000V CAT III/600V CAT IV (EN61010-1) |
| Mechanical & General Specifications | |
| Size | 270 x 190 x 70 mm |
| Weight | 2.2 kg |
| Warranty | 3-years on main instrument, 1-year on accessories |
| Li-Ion Battery | 190-X04, 4 Channel models: BP291 4800 mAh battery up to 7 Hours included standard 190-XX2, 2 Channel models: BP290 2400 mAh battery up to 4 hours included standard. Up to 8 hours using optional BP291 |
Tech Specs
Multimeters Template |
|
|---|---|
| Style | Hand-Held |
| Measures AC V | Yes |
| Measures DC V | Yes |
| Measures AC A | No |
| Measures DC A | No |
| True RMS | Yes |
| Maximum Voltage AC | 600 V |
| Resolution AC Volts | 1 mV |
| Maximum Voltage DC | 600 V |
| Resolution DC Volts | 1 mV |
| Basic Accuracy V DC | 1.5% |
| Counts | 999 . |
| Backlight | Yes |
| Manual/Autoranging | Both |
| Decibels | Yes |
| Resistance | Yes |
| Frequency | No |
| Capacitance | No |
| Temperature | No |
| Diode Testing | Yes |
| CAT Rating | IV |
| CAT Voltage | 1,000 V, 300 V, 600 V |
| Intrinsically Safe | No |
| Peak Hold | No |
| Overload Protector | No |
| Kelvin 4-Wire Measurement Capability | No |
| Wireless Display | No |
| Data Hold | No |
| Low-Pass Filter | No |
| Duty Cycle % | 4% to 98% |
Oscilloscopes/Portable Oscilloscopes Template |
|
| Bandwidth | 200 MHz |
| Channels | 2 |
| Sampling Rate | 2.5 GS/S (2500 MS/S) |
| Screen Type (Oscilloscopes) | LCD |
| Isolated Inputs | Yes |
| Screen Size | 6 IN |
| Bits | 8 |
| Color Screen | Yes |
| Rise Time | 1.7 ns |
| Memory | 10 KP [kilopoints] (10 kB) |
Test Equipment General Attributes |
|
| Unique Features | Dual-input digital oscilloscope and multimeter. |
| Warranty | 3 YEARS |
| Warranty Details | Three years (parts and labor) on main instrument, one year on accessories |
| Safety Approval | CE, CSA |
| Interfaces I/O | USB Host, USB |
| Storage | Internal Memory, USB Flash Drive |
| IP Rating | IP51 |
| Product Weight | 9.26 LBS |
| Product Height | 5.51 IN |
| Product Length | 12.6 IN |
| Product Width | 10.63 IN |
| Shipping Weight | 10.19 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.20.1000 |
| ECCN Number | 3A992 |
| Calibration Included | None |
| Battery Type | Li-ion |
| Power Supply Voltage | 120V/220V Universal, Battery Powered |
| Country of Origin | Romania |
| Shipping Height | 5.51 IN |
| UPC | 095969601436 |
| Shipping Length | 12.6 IN |
| Shipping Width | 10.63 IN |
