Amprobe AC50A
- AC current measurement to 60 A
- Leakage current measurement with a resolution of 0.01 mA
- AC voltage to 400 V
- Resistance measurement and continuity beeper
- Min/max control to see largest or smallest values in a series of measurements

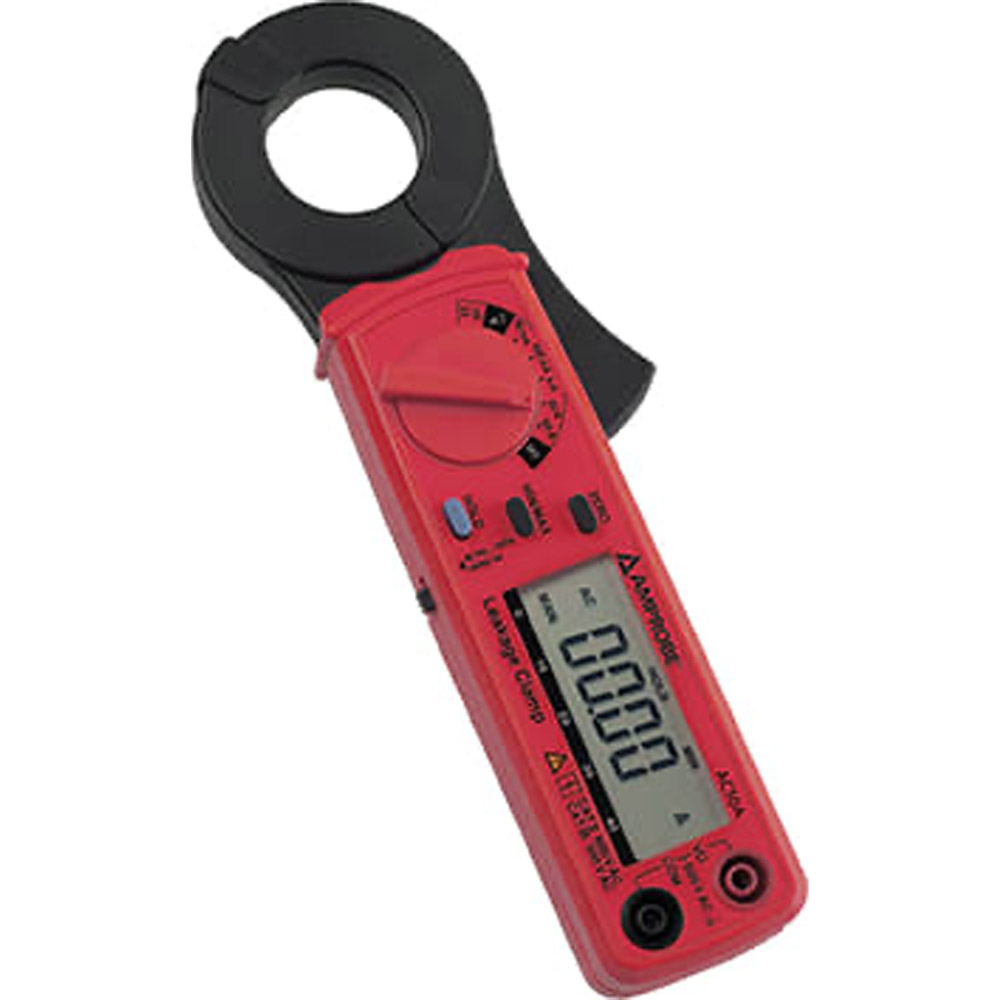

AC Leakage Clamp Meter
The Amprobe AC50A Clamp Multimeter with leakage current capability measures low AC current in the microamps. Great for applications requiring measurement of leakage and fault currents.
Manufacturer Specs
| Display | 3-3/4, LCD incl. functions and symbols |
| Bargraph | 40 segments |
| Range Selection | manual |
| Auto-Power-Off | approx. 30 min. |
| Overload display | the left digit is blinking |
| Measuring rate | 20 measurements/sec. (Bargraph), 2 measurements/sec. (LCD) |
| Clamp opening | ca. 30 mm (1.2”) |
| Overvoltage Categorie | CAT II, 600 V, CAT III, 300 V |
| Pollution degree | 2 |
| Height above MSL. | up to 2000 m, indoor operation |
| Battery display | at low battery |
| Power supply | Battery 2 x 1,5 V IEC LR6 (alkaline) |
| Current Consumtion | approx. 10 mA |
| Operation temperature | -10° C … 50° C (14° F… 122° F) |
| Storage temperature | -20° C … 60° C (-4° F… 140° F) |
| Humidity | < 75 % relative humidity |
| Range | Resolution | Accuracy | |
| Current AC | |||
| 50 Hz/60 Hz | 40 Hz – 1 kHz | ||
| 0 – 40 mA 0 – 400 mA 0 – 4 A 0 – 40 A |
10 µA 100 µA 1 mA 10 mA |
±(1.5 % rdg. +3 D) | ±(2.0 % rdg. +5 D) |
| 0 – 50 A | 0.1 A | ±(1.5 % rdg. +5 D) | ±(2,0 % rdg. +5 D) |
| 50 – 60 A | 0.1 A | ±(3.0 % rdg. +5 D) | ±(3.5 % rdg. +5 D) |
| Voltage AC | |||
| 50 Hz/60 Hz | 40 Hz … 1 kHz | ||
| 0 … 400V | 0.1 V | ±(1.0 % rdg. +3 D) | ±(2.0 % rdg..± 4 D) |
| Resistance | |||
| Range | Resolution | Accuracy | Overload Protection |
| 400 Ω | 0.1 Ω | ±(1 % rdg. +3 D) | 600 V AC |
| Continuity | |||
| Range | Resolution | Beep | Open Circuit Voltage |
| Ω/ | 0.1Ω | < ca. 40Ω | < 0.4 V |
| Overload Protection 600 V AC | |||
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | No |
| Maximum Current AC | 60 A |
| Maximum Voltage AC | 400 V |
| Maximum Conductor Size | 1.2 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Relative Value Measurement to Determine Differentials, Data Hold to Freeze Measurement Value on the Display, Digital Display |
| Additional Info/Comments | Heavy Duty Test Leads with Threaded Alligator Clips |
| Product Weight | 7 OUNCES (0.438 LBS) |
| Product Height | 1.4 IN |
| Product Length | 7.2 IN |
| Product Width | 2.5 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.32.0000 |
| ECCN Number | 3A992 |
| Battery Type | Other |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Other Information | Display: 3-3/4, LCD incl. functions and symbols
Bargraph: 40 segments Range Selection: manual Auto-Power-Off: approx. 30 min. Overload display: the left digit is blinking Measuring rate: 20 measurements/sec. (Bargraph), 2 measurements/sec. (LCD) Clamp opening: ca. 30 mm (1.2?) Overvoltage Categorie: CAT II, 600 V, CAT III, 300 V Pollution degree: 2 Height above MSL.: up to 2000 m, indoor operation Battery display: at low battery Power supply: Battery 2 x 1,5 V IEC LR6 (alkaline) Current Consumtion: approx. 10 mA Operation temperature: -10? C ? 50? C (14? F… 122? F) Storage temperature: -20? C ? 60? C (-4? F… 140? F) Humidity: 75 % relative humidity |
