Amprobe AC68C
- 8 functions/11 ranges
- Data and AC peak hold
- DC auto zero
- 33⁄4 digit, LCD, max reading of 3999
- Maximum jaw opening 1.57″ (40 mm)
- Autoranging for frequency measurement

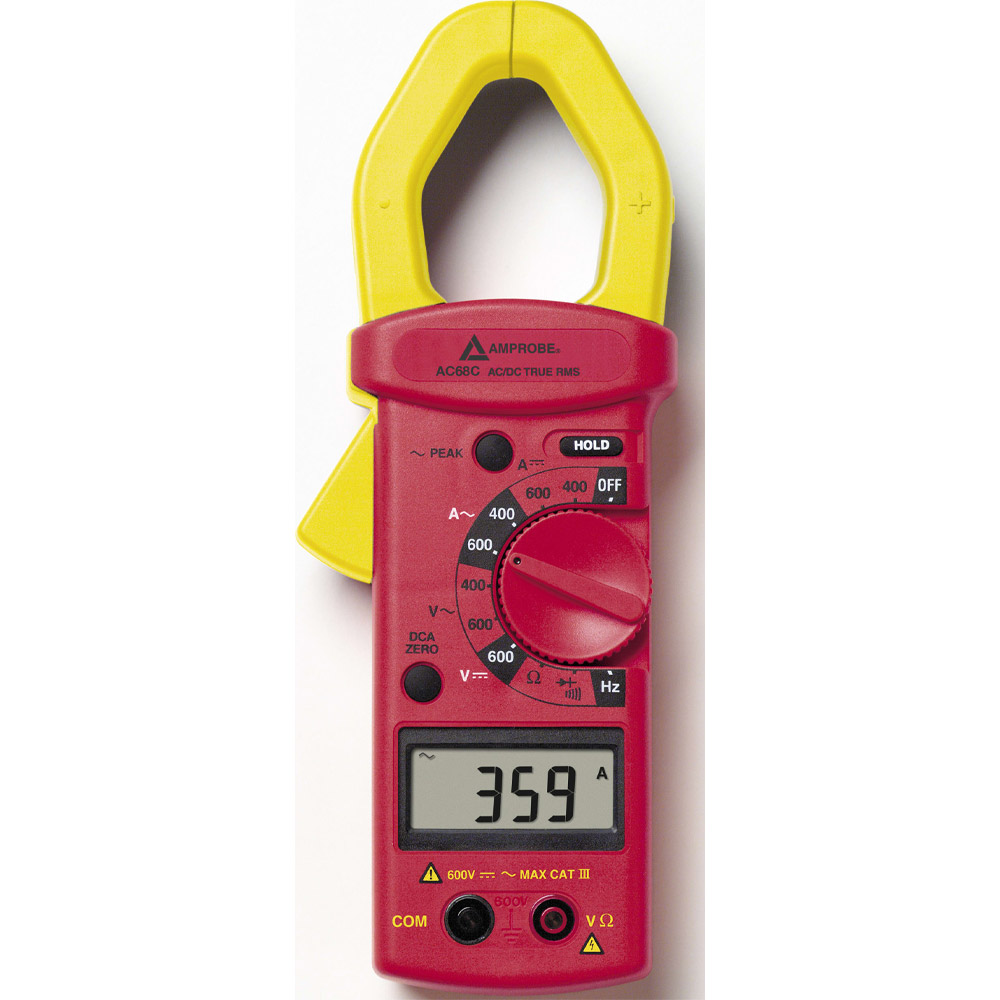

TRMS 600 A Clamp Meter
Amprobe AC68C TRMS 600 A Clamp Meter measures non-linear load current with true-RMS readings. This top-of-the-line professional clamp DMM is CAT II 600 V, CAT III 300 V rated.
Manufacturer Specs
| General Specifications | ||
| Display | 3-3⁄4 digit, LCD, max reading of 3999 | |
| Display Update Rate | 2/sec, nominal | |
| Power | 9 V battery (NEDA 1604, IEC 6F22) | |
| Battery Life | 200 hours(Alkaline) | |
| Operating Temperature | 0°C to + 40°C < 80 % R.H. | |
| Storage Temperature | – 10°C to + 60°C, < 70 % R.H. non-condensing | |
| Maximum Jaw Opening | 40 mm (1.57) | |
| Dimensions (WxHxD) | 76 x 228 x 39 mm (3 x 9 x 1.5) | |
| Weight (incl. Battery) | 465 grams | |
| Warranty | One-year | |
| Mechanical Specifications (23°C ± 5 °C; < 80 % R.H. non-condensing) | ||
| Function | Range | Accuracy |
| DC Voltage | ||
| Ranges | 600 V | ± (0.75 % rdg + 2 dgts) |
| Resolution | 1 V in 600 V range | |
| Input Impedance | 10 MΩ | |
| AC Voltage (40-450 Hz) | ||
| Range | 400 V, 600 V | ± (1.2 % rdg + 5 dgts) |
| Resolution | 0.1 V in 400 V range | |
| Input Impedance | 10 MΩ | |
| DC Current | ||
| Ranges | 400 A, 600 A | ± (2 % rdg + 5 dgts) |
| Resolution | 0.1 A in 400 A range | |
| AC Current (40-450 Hz) | ||
| Ranges | 400 A, 600 A | ± (2 % rdg + 5 dgts) |
| Resolution | 0.1 A in 400 A range | |
| Frequency (Hz), Current and Voltage | ||
| Ranges | 4 kHz, 20 kHz | ± (0.5 % rdg + 5 dgts) |
| Resolution | 1 Hz in 4 kHz range | |
| Sensitivity | 5 A/1 V in 4 kHz range | |
| 5 A/5 V in 20 kHz range | ||
| Resistance | ||
| Range | 4 kΩ | ± ( 1.0 % rdg + 5 dgts) |
| Resolution | 1 Ω in 4 kΩ range | |
| Open Circuit Volts | 0.5 V DC | |
| Max Short Circuit Current | 0.8 mA | |
| Diode Test | ||
| ± (1.0 % rdg + 2 dgts) | ||
| Resolution | 0.001 V | |
| Open Circuit Volts | 3.2 V DC | |
| Max Short Circuit Current | 0.8 mA | |
| Continuity | ||
| Range Threshold | Tone at 40 Ω ± 15 Ω | |
| Open Circuit Volts | 3.2 V DC | |
| Max Short Circuit Current | 0.8 mA | |
| Peak Hold Measurement AC Voltage (40-450 Hz) | ||
| Range | 400 V, 600 V | ± (1.5 % rdg + 10 dgts) |
| Resolution | 0.1 V in 400 V range | |
| Input Impedance | 10 MΩ | |
| Peak Hold Measurement AC Current (40-450 Hz) | ||
| Range | 400 A, 600 A | ± (2.0 % rdg + 10 dgts |
| Resolution | 0.1 A in 400 A range | |
| Overload Protection | ||
| Voltage | 1000 V DC/750 V AC | |
| Current | 800 Amps | |
| Resistance | 660 V RMS | |
| Diode | 660 V RMS | |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 600 A |
| Maximum Current DC | 600 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Both |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | DC Auto Zero, 8 Functions / 11 Ranges |
| Warranty | 1 YEARS |
| Additional Info/Comments | Basic Test Lead Kit, Deluxe Test Lead Kit, Test Lead Set with Alligator Clips |
| Product Weight | 465 GRAMS (1.03 LBS) |
| Product Height | 1.5 IN |
| Product Length | 9 IN |
| Product Width | 3 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030.32.0000 |
| ECCN Number | 3A992 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 2.00 IN |
| Shipping Length | 13.00 IN |
| Shipping Width | 8.50 IN |
