Amprobe ACD-22SW
- TRMS Measurement
- Advanced VoltTect non-contact voltage detection
- Measures AC Current up to 400 ACA, AC/DC Voltage up to 600V, Resistance and Capacitance
- Auto and manual ranging respectively for quick checks and precise measurements
- Accommodates conductors up to 1.18” (30mm) in diameter

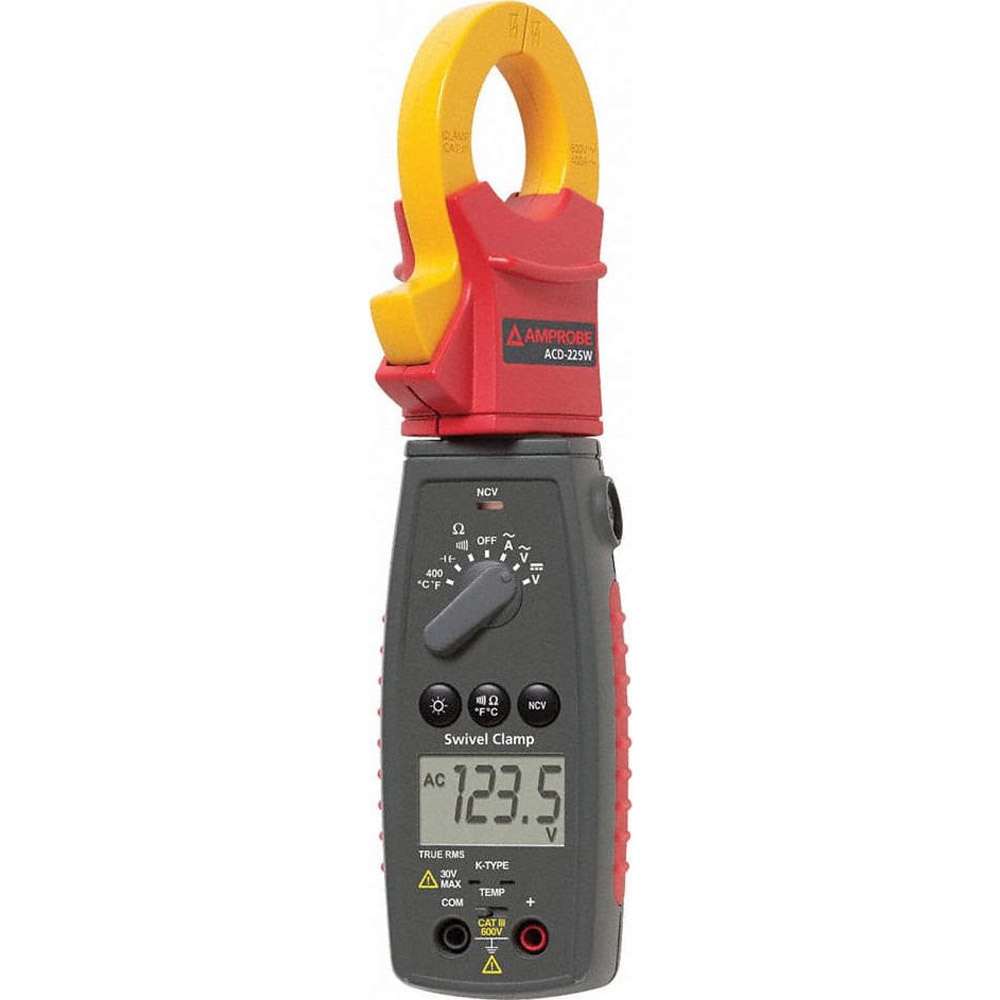

400A True-RMS Swivel Clamp Meter with VolTect
Amprobe’s new ACD-22SW Swivel™ Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places.
Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Feature-rich, measuring AC/DC currents, voltage, resistance, and capacitance as well as CAT III 600 V safety ratings make this clamp on meter something you should swivel to see.
Manufacturer Specs
| Display | 3¾ digit liquid crystal display (LCD) with a maximum reading of 3999. |
| Polarity | Automatic, positive implied, negative polarity indication. |
| Overrange | (OL) or (-OL) is displayed. |
| Zero | Automatic. |
| Low battery indication | Displayed when the battery voltage drops below the operating level. |
| Auto power off | Approx. 10 minutes. |
| Measurement rate | 2 times per second, nominal. |
| Operating Environment | 0°C to 50°C / 32°F to 122°F at <70% relativehumidity. |
| Storage Ttemperature | -20°C to 60° / -4°F to 140°F, 0 to 80% R.H. withbattery removed from meter. |
| Accuracy | Stated accuracy at 74°F ±8°F, <75% relative humidity. |
| Temperature Coefficient | 0.1 × (specified accuracy) per °F, (32°F to 66°F, 82°F to 122°F). |
| Altitude | 6561.7 Feet (2000m). |
| Jaw opening capability | 30mm (1.18 in) conductor. |
| Power | 1.5 volt battery x2, R03/SIZE AAA. |
| Isolated battery compartment. | |
| Battery life | 150 hours typical with carbon-zinc. 300 hours typical with alkaline. |
| Dimensions | 306 × 135 × 30mm (12 × 5.3 × 1.2 in). |
| Weight | Approx. 157g (1.26lb) including battery. |
| Safety | Designed to meet IEC 61010-1 (EN61010-1) and IEC 61010-2-032 (EN61010-2-032), CATIII 600V class II and pollution degree 2 indoor use comply with CE , UL |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 1.18 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Both |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | TRMS AC Current to 400A AC Voltage to 600V DC Voltage to 600V Resistance to 40MΩ VolTect™ non-contact voltage detection Jaw fits up to 1.18″ (30 mm) in diameter Backlight |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Additional Info/Comments | Low Battery Indication |
| Safety Approval | CE |
| Product Weight | 7.7 OUNCES (0.481 LBS) |
| Product Height | 1.6 IN |
| Product Length | 9.5 IN |
| Product Width | 2.8 IN |
| Data Logging | No |
| Calibration Included | None |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 4.00 IN |
| Shipping Length | 15.50 IN |
| Shipping Width | 8.00 IN |
