Amprobe ACD-23SW
- TRMS Measurement
- Advanced VoltTect non-contact voltage detection
- Measures AC Current up to 400 ACA, AC/DC, Voltage up to 600V, Resistance and Capacitance
- Auto and manual ranging respectively for quick checks and precise measurements
- Accommodates conductors up to 1.18” (30mm) in diameter
400A True-RMS Swivel Clamp Meter with Temperature and VolTect

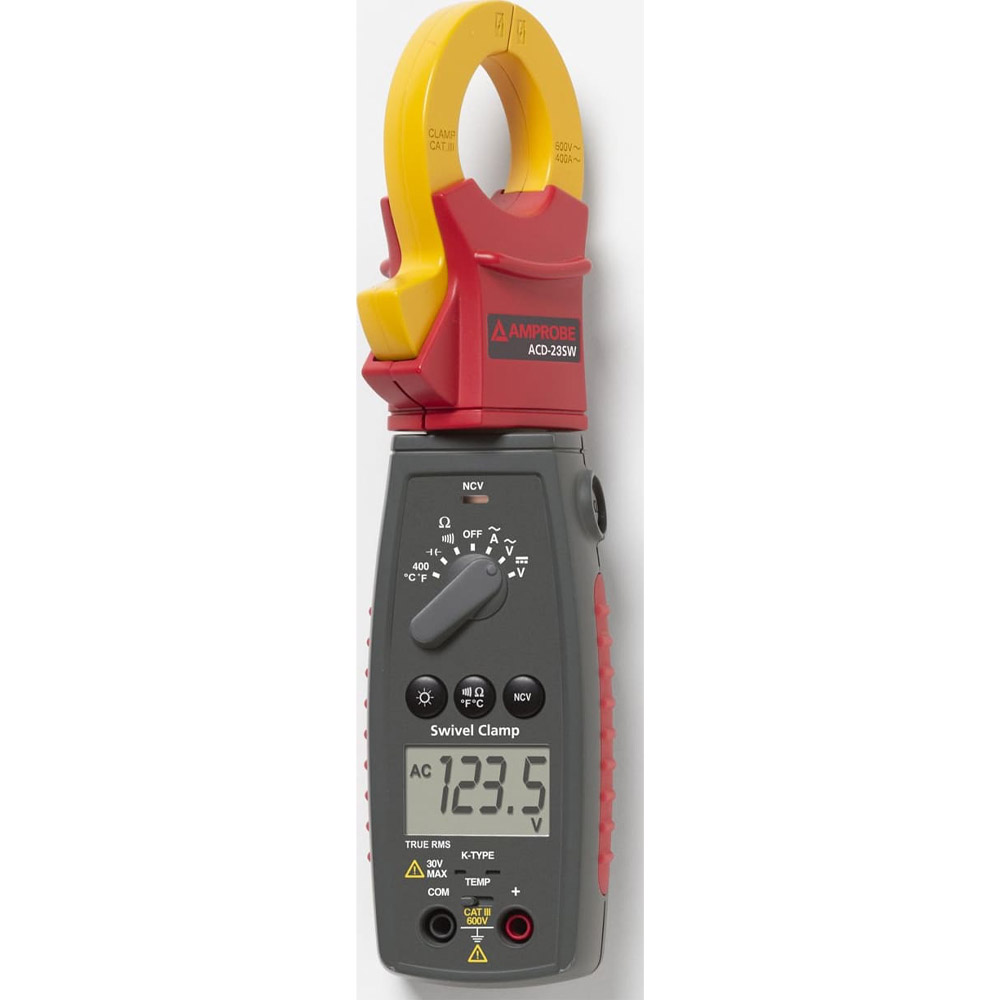

Amprobe’s ACD-23SW Swivel™ Clamp Meter features a patented 180-degree rotating head clamp design allowing easy views of measurements in tight or inconvenient to reach places.
Simply rotate the body of the clamp meter to get an unobstructed view of the LCD display. Feature-rich, measuring AC/DC currents, voltage, resistance, and capacitance as well as CAT III 600 V safety ratings make this clamp on meter something you should swivel to see.
Manufacturer Specs
| GENERAL SPECIFICATIONS | |
| Display | 3¾ digit liquid crystal display (LCD) with a maximum reading of 3999 |
| Polarity | Automatic, positive implied, negative polarity indication |
| Overrange | (OL) or (-OL) is displayed |
| Zero | Automatic |
| Low battery indication | The battery icon is displayed when the battery voltage drops below the operating level |
| Auto power off | Approx. 10 minutes |
| Measurement rate | 2 times per second, nominal |
| Operating Environment | 0°C to 50°C / 32°F to 122°F at <70% relative humidity |
| Storage Temperature | -20°C to 60° / -4°F to 140°F, 0 to 80% R.H. with battery removed from meter |
| Accuracy | Stated accuracy at 74°F ±8°F, <75% relative humidity |
| Temperature Coefficient | 0.1 × (specified accuracy) per °F, (32°F to 66°F, 82°F to 122°F). |
| Altitude | 6561.7 Feet (2000m) |
| Jaw opening capability | 30mm (1.18 in) conductor |
| Power | 1.5 volt battery x2, R03/SIZE AAA |
| Battery life | 150 hours typical with carbon-zinc. 300 hours typical with alkaline |
| Dimensions | 306 × 135 × 30mm (12 × 5.3 × 1.2 in) |
| Weight | Approx. 157g (1.26lb) including battery |
| Safety | Designed to meet IEC 61010-1 (EN61010-1) and IEC 61010-2-032 (EN61010-2-032), CATIII 600V class II and pollution degree 2 indoor use comply with CE , UL |
| ELECTRICAL SPECIFICATIONS | |||
| DC Volts | |||
| Ranges | 400mV, 4V, 40V, 400V, 600V | ||
| Resolution | 0.1mV | ||
| Accuracy | ±(0.5% rdg + 2 dgts) | ||
| Input Impedance | 400mV:>100MΩ; 4V:10MΩ;40V~600V:9.1MΩ | ||
| Overload Protection | 600V DC or AC rms to measure millivolts, use “RANGE “ button to manually select 400mV range | ||
| AC Volts (50Hz – 500Hz) | |||
| Ranges | 4V, 40V, 400V, 600V | ||
| Resolution | 1mV | ||
| Accuracy | ±(1.2% rdg + 5 dgts) ±(1.2% rdg + 5 dgts) |
||
| Input Impedance | 4V:10MΩ;40V~600V:9.1MΩ | ||
| Overload Protection | 600V DC or AC rms | ||
| AC Current (50Hz – 60Hz) | |||
| Ranges | 40A , 400A | ||
| Resolution | 0.01A | ||
| Accuracy | ±(2.0% rdg + 10 dgts) 50 ~ 60Hz | ||
| Overload Protection | 400A AC | ||
| Resistance | |||
| Ranges | 400Ω, 4kΩ, 40kΩ, 400kΩ, 4MΩ, 40MΩ | ||
| Resolution | 0.1Ω | ||
| Accuracy | ±(1.0% rdg + 5 dgts) on 400Ω to 400kΩ ranges | ||
| ±(1.5% rdg + 5 dgts) on 4MΩ range | |||
| ±(3.0% rdg + 5 dgts) on 40MΩ range | |||
| Open Circuit Volts | -0.45V DC typical, (-1.2Vdc on 400Ω range) | ||
| Overload Protection | 600V DC or AC rms | ||
| Capacitance | |||
| Ranges | 4uF , 40uF , 400uF , 4mF | ||
| Resolution | 1nF | ||
| Accuracy | ±(3.0% rdg + 15 dgts) | ||
| Minimum Input Range | >100nF | ||
| Overload Protection | 600V DC or AC rms when the capacitor to be tested is connected, if “dsc” symbol is indicated on LCD, it means there is voltage existing in the tested capacitor and needs to be discharged before testing. | ||
| Temperature | |||
| Range | -30°F ~ 400°F, -35°C ~ 400°C | ||
| Resolution | 0.1°F, 0.1°C | ||
| Accuracy | ±(1% + 2°F) 32°F ~ 400°F ±(1% + 1°C) 0°C ~ 200°C ±(2% + 6°F) -30°F ~ 32°F ±(2% +3°C) -35°C ~ 0°C |
||
| Sensor Type | K-type themocouple | ||
| Overload Protection | 60V DC or 30V AC rms | ||
| Continuity | |||
| Range | 400Ω | ||
| Resolution | 1Ω | ||
| Audible Indication | Less than 25Ω | ||
| Response Time | 500ms | ||
| Overload Protection | 500V DC or AC rms | ||
| Non-Contact Voltage Indicator | Senses voltage 70V to 600VAC (50Hz ~ 60Hz), beeper chirps and big bright red LED comes on, works when meter dial is on any range | ||
| Auxiliary Features | |||
| Hold | Freeze the latest reading on the display | ||
| Range | Excute manual range mode | ||
| Disable Auto Power Off | Set the DMM to off position, press (RANGE) button, and hold the (RANGE) button while turning the rotary knob to the desired range position. Release the button when LCD displays normally. Note “APO” annunciator is missing from the LCD. The Auto Power Off mode is activated with an “APO” symbol indicating on LCD. | ||
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 1.18 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Both |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | TRMS AC Current to 400A AC Voltage to 600V DC Voltage to 600V Resistance to 40MΩ VolTect™ non-contact voltage detection Capacitance to 4,000 µF Temperature from -30°F to 400°F Jaw fits up to 1.18″ (30 mm) in diameter |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Additional Info/Comments | Low Battery Indication |
| Safety Approval | CE |
| Product Weight | 1.26 LBS |
| Product Height | 1.2 IN |
| Product Length | 12 IN |
| Product Width | 5.3 IN |
| Data Logging | No |
| Calibration Included | None |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
| Shipping Height | 3.50 IN |
| Shipping Length | 14.40 IN |
| Shipping Width | 7.55 IN |
