Descripción

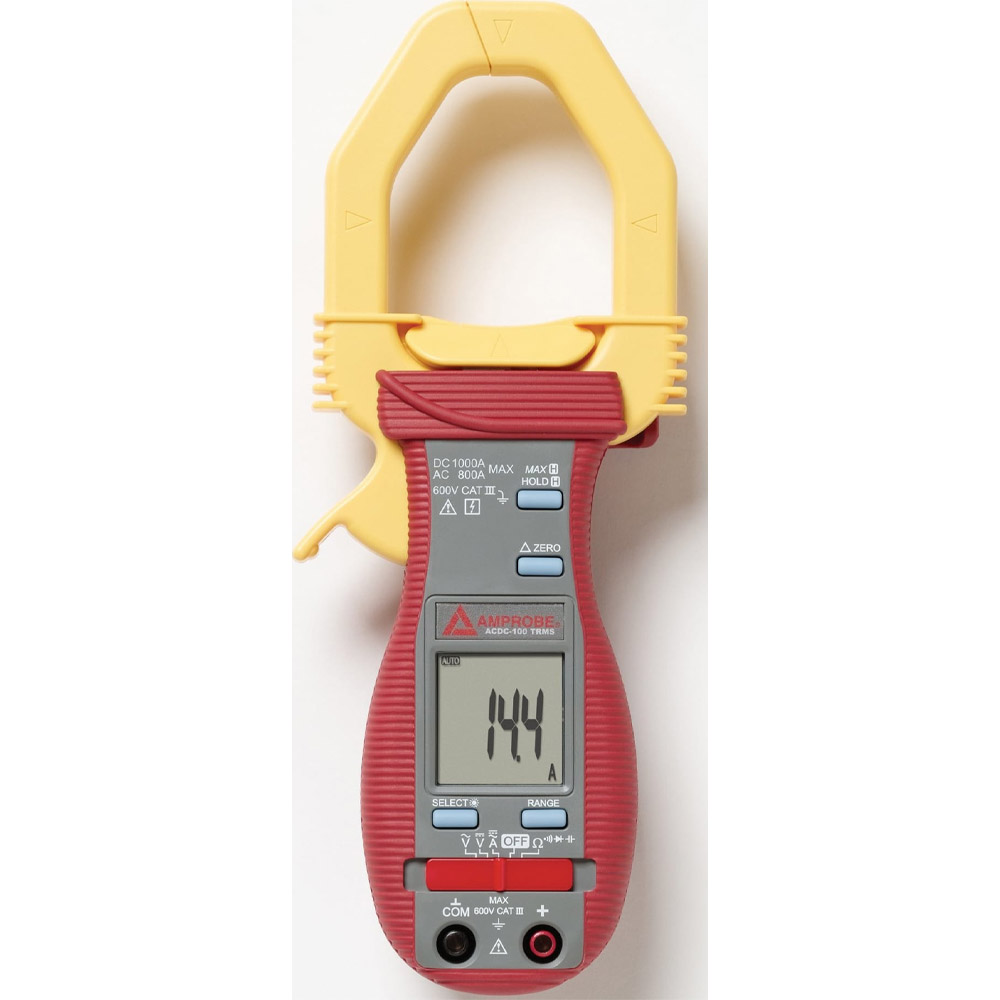

Amprobe ACDC-100 – TRMS 1000A AC/DC Digital Clamp Meter
- AC/DC voltage to 600V
- Relative zero mode
- Large, easy to read digital display
- Accommodates conductors up to 50mm (2.00″) in diameter
- MAX capture function for in rush current measurements (30 mS response)
- Rubber over-molded case with built-in probes storage
Where accuracy, quality, and the newest technology meet. The ACDC-100 TRMS offers superior AC/DC measurement capabilities, highest product quality, and enhanced ergonomic design.
With TRMS and Display Backlight
The ACDC-100 TRMS version addresses the needs of professionals who rely on performance and reliability. A large LCD for easy viewing.
Simplified Interface
These full-function clamp-ons have simplified interfaces to help your customers get their work done quickly. Easy-to-read oversize display screens feature the large digits. Each meter offers auto and manual ranging along with relative zero mode functions.
Manufacturer Specs
| General Specifications | |
| Display | 3-3/4 digits 4000 counts LCD display |
| Update Rate | 3 per second nominal |
| Polarity | Automatic |
| Low Battery | Below approx. 2.4V |
| Operating Temperature | 0C to 40C |
| Relative Humidity | Maximum relative humidity 80% for temperature up to 31C decreasing linearly to 50% relative humidity at 40C |
| Altitude | Operating below 2000m |
| Storage Temperature | -20C to 60C, < 80% R.H. (with battery removed) |
| Temperature Coefficient | nominal 0.15 x (specified accuracy)/ C @(0C -18C or 28C -40C), or otherwise specified |
| Sensing | True RMS |
| Safety | Meets EN61010-1:2001; IEC61010-2-032(2002), EN61010-2-032(2002), UL61010B-2-032(2003) Category III 600 Volts AC & DC. |
| Transient protection | 6.5kV (1.2/50μs surge) for all models |
| Pollution degree | 2 |
| E.M.C. | Meets EN61326-1 |
| Overload Protections | |
| Clamp-on jaws | DC 1000A or AC 800A rms continuous + & COM terminals (all functions) : 600VDC/VAC rms |
| Power Supply | standard 1.5V AAA Size (NEDA 24G or IEC R03) battery X 2; or 1.5V AAA Size (NEDA 24A or IEC LR03) alkaline battery X 2 |
| Power Consumption | typical 11mA for ACA/DCA and 2.9mA for other functions |
| APO Timing | Idle for 30 minutes |
| APO Consumption | typical 190μA |
| Dimension | L227mm X W78mm X H40mm |
| Weight | 290 gm approx |
| Jaw opening & Conductor diameter | 50mm max |
| Function | Range | Accuracy |
| Electrical Specifications | Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23? ± 5? & less than 75% R.H. | |
| DC Voltage | ||
| 400.0 mV | 0.3% + 3d | |
| 4.000V, 40.00V, 400.0V | 0.5% + 3d | |
| 600V | 1.0% + 4d | |
| NMRR : | >50dB @ 50/60Hz | |
| CMRR : | >120dB @ DC, 50/60Hz, Rs=1kΩ | |
| Input Impedance : | 10MΩ, 30pF nominal (1000MΩ for 400.0mV range) | |
| AC Voltage | ||
| 50Hz ~ 500Hz | 400.0mV 1) | 4.0% + 4d |
| 50Hz ~ 60Hz | 4.000V, 40.00V, 400.0V | 1.0% + 4d |
| 60Hz ~ 500Hz | 4.000V, 40.00V, 400.0V | 1.5% + 4d |
| 50Hz ~ 500Hz | 600V | 2.0% + 4d |
| CMRR : | >60dB @ DC to 60Hz, Rs=1kΩ | |
| Input Impedance: | 10MΩ, 30pF nominal | |
| ACDC-100 TRMS Crest Factor: | < 1.6 : 1 at full scale & < 3.2 : 1 at half scale | |
| 1) Selection by RANGE button manually, and is specified AC 60mV and up | ||
| Resistance | ||
| 400.0Ω | 0.8% + 6d | |
| 4.000kΩ, 40.00kΩ, 400.0kΩ | 0.6% + 4d | |
| 4.000MΩ | 1.0% + 4d | |
| 40.00MΩ | 2.0% + 4d | |
| Open Circuit Voltage : | 0.4VDC typical | |
| Audible Continuity Tester | ||
| Open Circuit Voltage: | 0.4VDC typical | |
| Range: 400.0Ω; Accuracy: | 1.5% + 6d | |
| Audible threshold: | between 10Ω and 120Ω. | |
| Diode Tester | ||
| Open Circuit Voltage | Test Current (Typical) | |
| < 1.6 VDC | 0.4mA | |
| Capacitance | ||
| 500.0nF, 5.000μF, 50.00μF, 500.0μF, 3000μF 1) |
3.5% + 6d2) 3) | |
| 1) Additional 50.00nF range accuracy is not specified 2) Accuracies with film capacitor or better 3) Specified with battery voltage above 2.8V (approximately half full battery). Accuracy decreases gradually to 12% at low battery warning voltage of approximately 2.4V |
||
| DC Current (Clamp-on) | ||
| 400.0A | 0.0A ~ 400.0A | 1.5% + 4d 1) 2) |
| 1000A | 400A ~ 800A | 1.5% + 4d 1) 2) |
| 800A ~ 900A | 2.0% + 4d 1) 2) | |
| 900A ~ 1000A | 5.0% + 30d 1) 2) | |
| 1) Induced error from adjacent current-carrying conductor: < 0.01A/A 2) Δ Zero mode must be applied to zero the unit before measurement to ensure accuracy. This is particularly important below 20A. |
||
| AC Current (Clamp-on) | ||
| 400.0A | ||
| 15Hz ~ 40Hz | 2.0% + 5d 1) 2) 3) | |
| 40Hz ~ 200Hz | 1.5% + 5d 1) 2) | |
| 200Hz ~ 400Hz @ <50A 4) | 1.5% + 5d 1) 2) | |
| 400Hz ~ 1kHz @ <50A 4) | 2.0% + 5d 1) 2) | |
| 800A | ||
| 15Hz ~ 40Hz @ 400A ~ 600A | 2.0% + 5d 1) 2) 3) | |
| 40Hz ~ 100Hz @ 400A ~ 600A | 1.5% + 4d 1) 2) | |
| 15Hz ~ 60Hz @ 600A ~ 800A | 5.0% + 30d 1) 2) | |
| 1) Induced error from adjacent current-carrying conductor: < 0.01A/A 2) ACDC-100 TRMS crest Factor: < 1.6 : 1 at full scale & < 3.2 : 1 at half scale 3) 4.0% + 5d for ACDC-100 TRMS 4) Accuracy is specified at <50A in this frequency bandwidth due to limited calibrator output capability for testing |
||
Tech Specs
Clamp Meters/Clamp Meters Template |
|||
|---|---|---|---|
| True RMS | Yes | ||
| Maximum Current AC | 800 A | ||
| Maximum Current DC | 1000 A | ||
| Maximum Voltage AC | 600 V | ||
| Maximum Voltage DC | 600 V | ||
| Maximum Conductor Size | 2 IN | ||
| Resistance | Yes | ||
| Capacitance | Yes | ||
| Auto Ranging/Manual | Both | ||
| In-Rush Current | Yes | ||
Test Equipment General Attributes |
|||
| Unique Features | Relative Zero Mode, Third Hand Test Probe Holder | ||
| Warranty | 1 YEARS | ||
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling | ||
| Additional Info/Comments | Line splitter (Energizer), 3000A AC Flexible Clamp-on Attachment, Single Input Thermocouple Temperature Attachment, Test Lead Kit | ||
| Product Weight | 290 GRAMS (0.639 LBS) | ||
| Product Height | 40 MM (1.57 IN) | ||
| Product Length | 227 MM (8.94 IN) | ||
| Product Width | 78 MM (3.07 IN) | ||
| Data Logging | No | ||
| Calibration Included | Factory Calibration | ||
| Battery Type | AAA | ||
| Power Supply Voltage | Battery Powered | ||
| Country of Origin | Taiwan | ||
| Shipping Height | 3.50 IN | ||
| Shipping Length | 12.00 IN | ||
| Shipping Width | 7.25 IN | ||
| Other Information | Display: 3-3/4 digits 4000 counts LCD display
Update Rate: 3 per second nominal Polarity: Automatic Low Battery: Below approx. 2.4V Operating Temperature: 0C to 40C Relative Humidity: Maximum relative humidity 80% for temperature up to 31C decreasing linearly to 50% relative humidity at 40C Altitude: Operating below 2000m Storage Temperature: -20C to 60C, 80% R.H. (with battery removed) Temperature Coefficient: nominal 0.15 x (specified accuracy)/ C @(0C -18C or 28C -40C), or otherwise specified Sensing: True RMS Safety: Meets EN61010-1:2001; IEC61010-2-032(2002), EN61010-2-032(2002), UL61010B-2-032(2003) Category III 600 Volts AC & DC. Transient protection: 6.5kV (1.2/50µs surge) for all models Pollution degree: 2 E.M.C.: Meets EN61326-1 Clamp-on jaws: DC 1000A or AC 800A rms continuous + & COM terminals (all functions) : 600VDC/VAC rms Power Supply: standard 1.5V AAA Size (NEDA 24G or IEC R03) battery X 2; or 1.5V AAA Size (NEDA 24A or IEC LR03) alkaline battery X 2 Power Consumption: typical 11mA for ACA/DCA and 2.9mA for other functions APO Timing: Idle for 30 minutes APO Consumption: typical 190µA Dimension: L227mm X W78mm X H40mm Weight: 290 gm approx Jaw opening & Conductor diameter: 50mm max Electrical Specifications |
Accuracy is ±(% reading digits + number of digits) or otherwise specified, at 23℃ ± 5℃ & less than 75% R.H. | |
| DC Voltage | |||
| : 400.0 mV | 0.3% + 3d
AC Voltage |
||
| 50Hz ~ 500Hz: 400.0mV 1) | 4.0% + 4d
Resistance |
||
| : 400.0O | 0.8% + 6d
Audible Continuity Tester |
||
| Open Circuit Voltage:: 0.4VDC typical |
Diode Tester |
||
| Open Circuit Voltage: Test Current (Typical) |
Capacitance |
||
| : 500.0nF, 5.000µF, 50.00µF, 500.0µF, 3000µF 1) |
3.5% + 6d2) 3)
DC Current (Clamp-on) |
||
| 400.0A: 0.0A ~ 400.0A | 1.5% + 4d 1) 2)
AC Current (Clamp-on) |
||
| 400.0A: | |||
