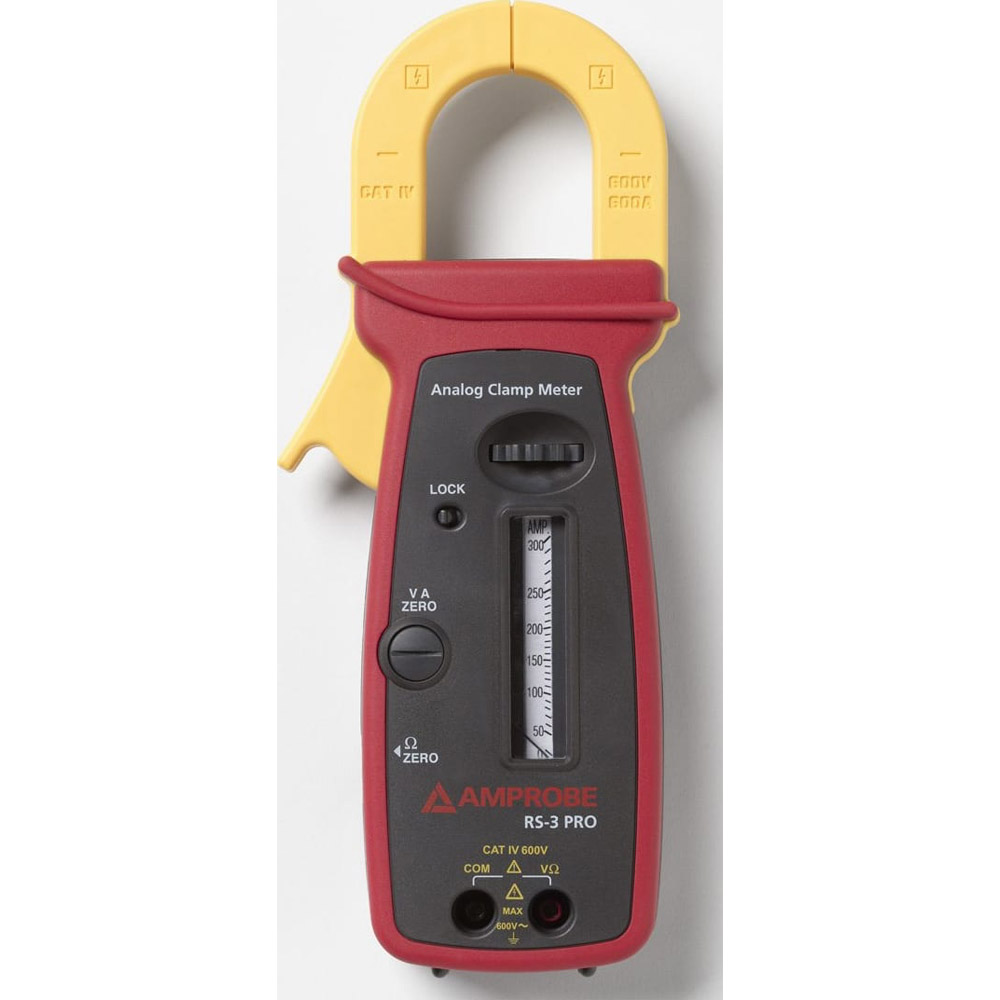

CAT IV Analog Clamp
This CAT IV 600V safety rated analog clamp is a great tool for tough electrical applications. The RS-3 PRO works well in extreme temperatures of 32°F to 5°F, while digital clamp LCD screens tend to freeze this anolog clamp measures up to the test. The RS-3 PRO does not require batteries for measuring Amps and Volts.
Manufacturer Specs
| Display | Analog scales with clamping needle |
| Dimension | 243 x 102 x 41 mm (10.3 x 4.0 x 1.6 in.) |
| Weight | 0.455 kg (1.0 lb.) |
| Jaw opening / Conductor diameter | 41mm (1.64″) max |
| Volt/ amp | powered by circuit under test |
| Ohm | 1.5 V AAA battery (ANSI/NEDA-24A, IEC LR03) |
| Low Battery | Below approx. 1.2 V |
| Environmental | Indoor operation; below 2000m (6,562ft) |
| Operating Temperature | -15°C to 50°C (5°F to 122°F) ; < 80% |
| Storage Temperature | -20ºC to 60ºC (-4ºF to 140ºF), < 80% R.H. (with battery removed) |
| Temperature Coefficient | nominal 0.15 x (specified accuracy)/ ºC @ 0ºC – 18ºC or 28ºC – 40ºC (32°F – 64°F or 82°F – 104°F) |
| Safety LVD | Category IV – 600 Volts ac Meets EN60101-1:2001; EN61010-2-032(2002; pollution degree : II; class 2 |
| Electrical | [23ºC ± 5ºC (73ºC ± 9ºC)] |
| AC Voltage | (50/60 Hz) |
| Ranges | 150 / 300 / 600 Vrms |
| Accuracy | ± 3 % of Full Scale. |
| Input Impedance | 1.5 MΩ |
| OL Protection | 600 V ac rms |
| AC Amp | (50/60 Hz) |
| Ranges | 6 / 15 / 40 / 100 /600 Arms |
| Accuracy | ± 3 % of Full Scale |
| Ohms | |
| Range | 1000 ohms; 25 Ohms mid-scale |
| Accuracy | ± 3 degrees of Arc |
| Open Circuit voltage | 1.5v |
| Short circuit Current | xx mA |
| OL Protection | (F 0.5 A / 1000 V, size 6 x 32 mm IR fast blow ceramic) |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | No |
| Maximum Current AC | 300 A |
| Maximum Voltage AC | 600 V |
| Maximum Conductor Size | 1.64 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
General Attributes |
|
| Warranty | 1 YEARS |
| Product Weight | 1 LBS |
| Warranty Details | 1 Year from the Date of Purchase, This Warranty Does Not Cover Fuses, Disposable Batteries or Damage from Accident, Neglect, Misuse, Alteration, Contamination or Abnormal Conditions of Operation or Handling |
| Product Height | 1.6 IN |
| Product Length | 10.3 IN |
| Product Width | 4 IN |
| Country of Origin | Taiwan |
Test Equipment General Attributes |
|
| Unique Features | Pointer Lock – Data Hold, Easy to Use Rotary Scale, Operates on 50Hz and 60Hz Frequency, No Batteries Required |
| Additional Info/Comments | Test Leads with Set of Alligator Clips, Deluxe Carrying Case |
| Data Logging | No |
| Calibration Included | Factory Calibration |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
