True RMS AC/DC Mini Clamp Meter

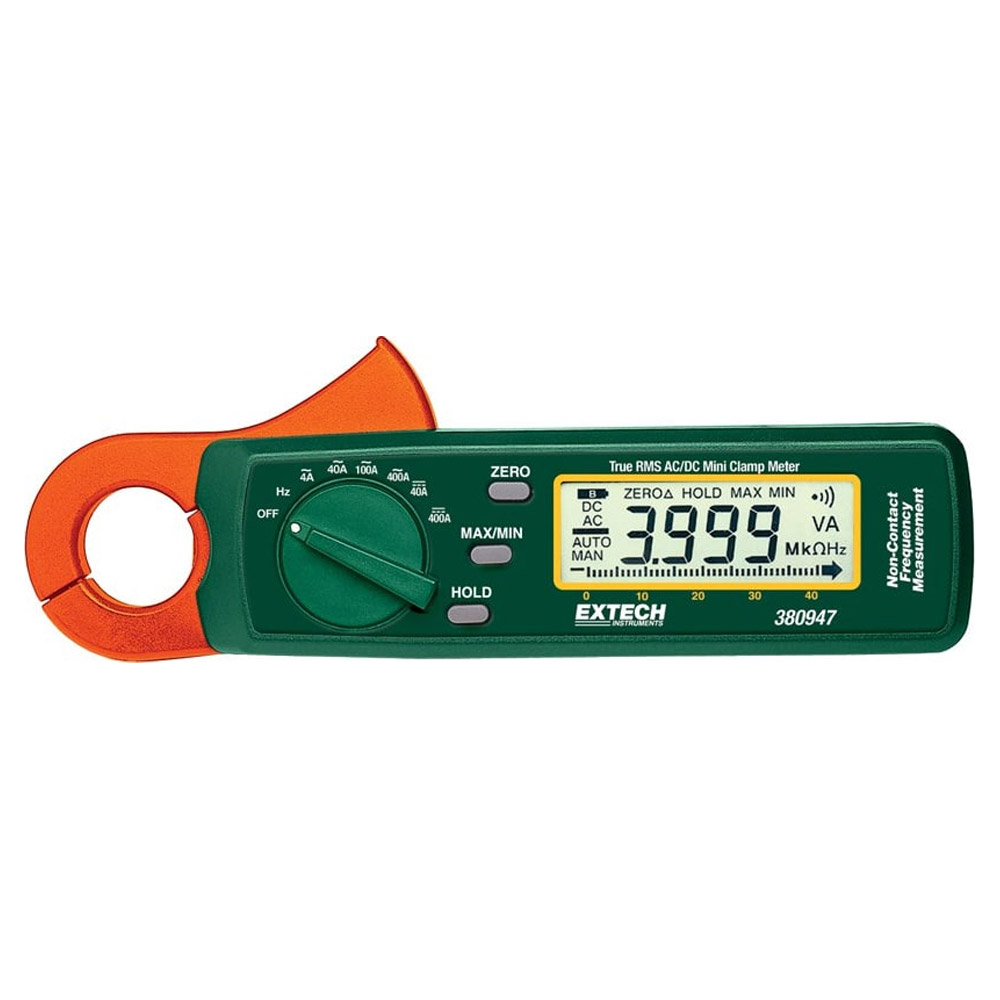

The compact Extech 380947 is a 400A True RMS mini clamp meter with a small diameter jaw designed to reach in small areas while providing 1mA resolution and very low-current sensitivity. This mini clamp meter is useful for current- and frequency-related troubleshooting in plant maintenance, electrical, HVAC, and telecom work, as well as home electrical, fleet maintenance, marine, and motorcycle repairs.
Key Functionality
Depending on a given job, you can select from several AC current ranges: 4A/40A/100A/400A. The 4A AC range with 1mA resolution is optimized for finding problems where low current variances would be missed by standard clamp meters. DC current can be measured in two useful ranges: 40A/400A. In addition to AC/DC current, this mini clamp meter measures frequency to 10kHz.The 380947 features True RMS to compensate for distortion from electronic components, such as fluorescent lights, motor drives, computer power supplies, and other electronic systems that can distort the AC waveform, which make it difficult for averaging meters to obtain accurate readings. This meter’s True RMS capability uses a more advanced formula to adjust for this kind of distortion.
Other Features
This meter’s multiple ranges, ergonomic design, and go-anywhere 0.9″ (23mm) jaw opening provide versatility whether you are checking amp draws on industrial equipment and building circuits or taking readings in a tight areas like inside engine bays. The useful Data Hold function freezes the display while the Min/Max function tracks and displays minimum and maximum values – useful for blind measurements and start-up draws. The Zero function makes it easy to perform relative measurements. The 4-digit (4,000-count) readout is easy to read and a 40 segment bar graph helps simulate an analog display, better illustrating swings in readings captured by this meter.
Manufacturer Specs
| General Specifications | |
| Display | 3-3/4 Digit LCD with 40 segment bargraph |
| Functions | Current (ACA, DCA) and Frequency (Hz) |
| Polarity | “-“ indicates negative polarity (positive polarity assumed) |
| Current sensor | Hall effect |
| Overload Display | indicates “1___” or “-1___” |
| DCA zero adjust | One-touch zero key (also used as a Relative function) |
| Display rate | 2 readings/second (20 readings/second for bargraph) |
| Battery | Two 1.5V AA batteries |
| Operating temperature | 4°F to 122°F (-10°C to 50°C) |
| Operating Humidity | < 85% RH |
| Power consumption | 10mA DC approx. |
| Weight | 6.2 oz. (190g) including battery |
| Dimensions | 7.2 x 2.5 x 1.4” (183 x 63.6 x 35.6mm) (H x W x D) |
| Jaw opening | 0.9” (23mm) |
| Standards | IEC 1010 Category III 300V, Category II 600V |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Current DC | 400 A |
| Maximum Conductor Size | 0.9 IN |
| Resistance | No |
| Capacitance | No |
| Auto Ranging/Manual | Manual |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Provide High Accuracy and Resolution, One Touch Auto Zero for DCA Measurements, Data Hold Display |
| Warranty | 1 YEARS |
| Warranty Details | 1 Year from Date of Shipment, Six Month Limited Warranty Applies to Sensors and Cables |
| Additional Info/Comments | Optional 3-prong AC Line Separator Enables Safe and Easy Measurements on Power Cables with Molded Plugs |
| Product Weight | 6.2 OUNCES (0.388 LBS) |
| Product Height | 1.4 IN |
| Product Length | 7.2 IN |
| Product Width | 2.5 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Taiwan |
