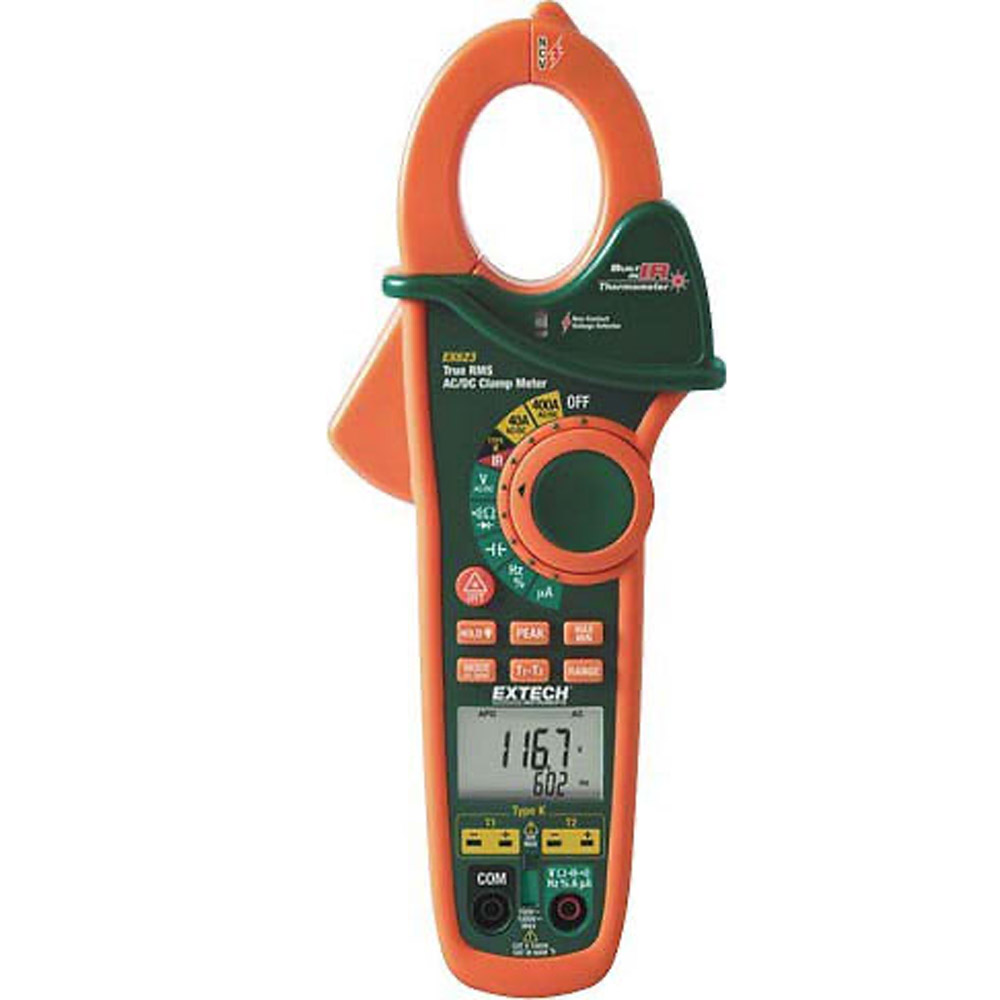

The Extech EX613-NIST is an EX600 series true RMS clamp meter with AC/DC current and non-contact voltage detector and NIST certificate.
Features of this device include a non-contact Voltage detector that has been already built in to the system and also a True RMS measuring device that accurately takes AC current and voltage measurements without any extra effort on your part. Supporting these two features is a dual type K thermocouple input device that also takes differential temperature functions such as T1, T2 and T1 to T2. One of the most notable features of this Extech product is the non-contact Voltage detector that has an LED alert warning light built in. The DC µA multimetre function has been specifically installed for the distinct purpose of HVAC flame rod current measurements.
For added ease of use, the data hold ability can store the measurements that you take inside the voltage detector to be recalled later, as well as fast Peak Hold ability that can monitor the current surges that occur during the start-up of the motor.
The measurements that are taken are displayed on the LCD display that is housed inside the rugged double moulded case. Although you don’t need to worry about doing any damage to your Extech clamp meter measuring device as it also comes with double moulded test leads and a carry case that also allows for easy transportation.
Manufacturer Specs
| General | |
| IR Temperature | – |
| AC Current | 400.0A |
| DC Current | 400.0A |
| Max resolution | 10mA |
| Basic ACA accuracy | ±1.5% |
| AC/DC Voltage (Max Res.) | 600V (0.1mV)/600V (0.01mV) |
| DC µA Current | 4000µA (0.01µA) |
| Resistance (Max Res.) | 40.000MO (0.01) |
| Capacitance (Max Res.) | 10pF to 40,000µF (0.01nF) |
| Frequency (Max Res.) | 40MHz (0.001Hz) |
| Temperature (Type K) | -58 to 1832°F (-50 to 1000°C) |
| Diode Test | < 2.8V |
| Duty Cycle | 0.5 to 99.0% |
| Dimentions | 9×3.1×1.9″ (229x80x49mm) |
| Weight | 10.7oz (303g) |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Current DC | 400 A |
| Maximum Voltage AC | 600 V |
| Maximum Voltage DC | 600 V |
| Maximum Conductor Size | 1.25 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Both |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Built-in Non-contact Voltage Detector with LED Alert, Data Hold |
| Additional Info/Comments | DC Current Function Ideal for Automotive, Heavy Equipment and Marine Applications |
| Safety Approval | ETL |
| Product Weight | 13.6 OUNCES (0.85 LBS) |
| Product Height | 1.75 IN |
| Product Length | 9.5 IN |
| Product Width | 3.8 IN |
| Data Logging | No |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
