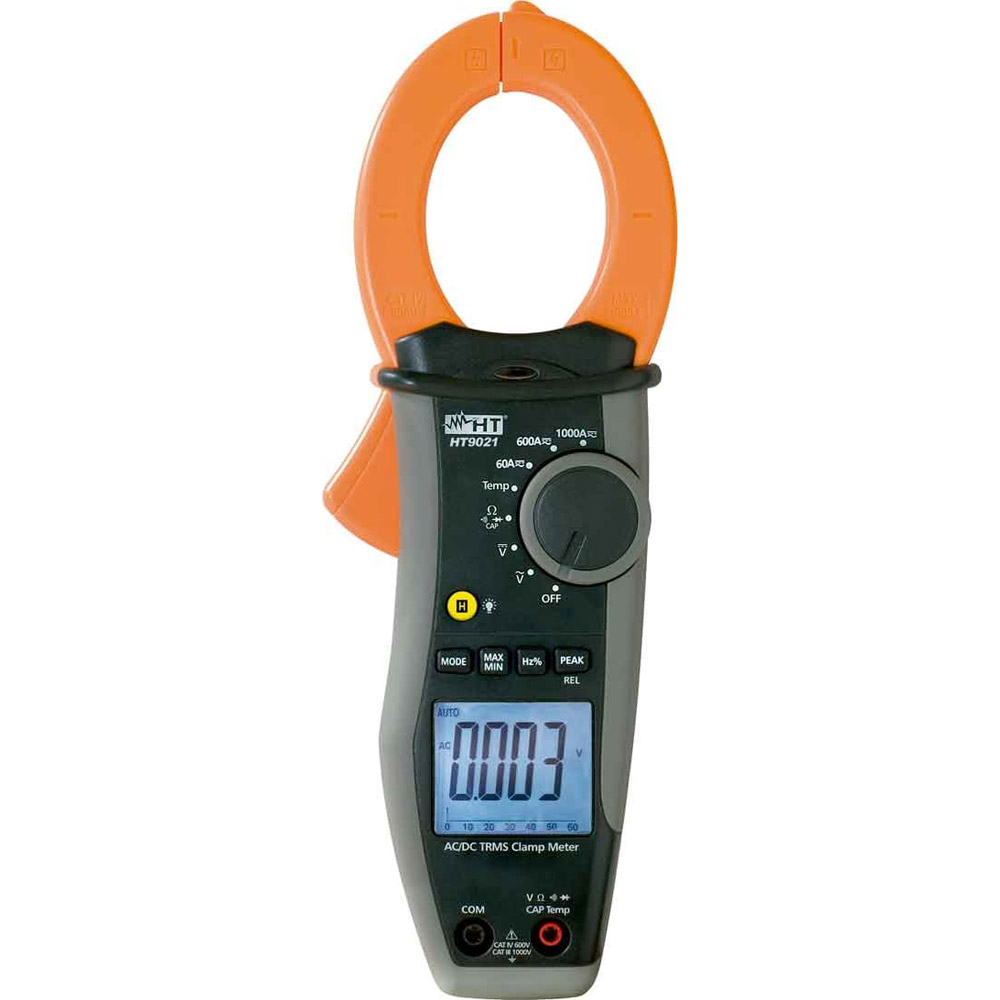

HT Instruments HT9021 AC/DC TRMS Professional Clamp Meter up to 1000A
AC/DC TRMS Clamp Meter 1000A, 6000 Points – CAT IV
 |
HT9021 professional clamp meter is designed for DC/AC TRMS current measurement up to 1000A, and DC/AC voltage for achieve safety CAT IV 1000V according to IEC/EN61010-1 safety standard. The model have a large LCD 4 digit display (6000counts), with backlight and bar graph to more easy reading in critical environments. The model perform also resistance, continuity test, frequency, capacitance, diode test, duty cycle and temperature with type K probe measurements. The Autopower OFF feature is also available for the meter in order to preserve it’s internal battery charge.
LEGEND:
|
key
CAP Temp input jackIn The Box
STANDARD:
- 4413-2 : Couple of test leads
- Adapter for type K probes
- TK101 : Type K bead probe
- Cordura Carry Case
- Battery
- User manual
OPTIONAL:
- TK107 : Type K probe for air/gas temperature
- TK108 : Type K probe for semi-solid substances temperature
- TK109 : Type K probe for liquid temperature
- TK110 : Type K probe for surface temperature
- TK111 : Type K probe for surface temp. with 90 degree tip
Manufacturer Specs
| HT Instruments HT9021 Technical Specifications | |
| Accuracy is calculated as [% rdg + (number of dgt) x resolution]. It is referred to the following reference conditions: 18°C ÷ 28°C (65°F ÷ 83°F), < 75%RH | |
| ELECTRICAL SPECIFICATIONS | |
| DC Voltage (Autorange) | 600.0mV – 1000V |
| AC Voltage TRMS (Autorange) | 6.000V – 1000V |
| Resistance and Continuity test (Autorange) | 600.0Ω – 60.00MΩ |
| DC Current | 60.00A – 1000A |
| AC TRMS Current | 60.00A – 1000A |
| Capacitance (Autorange) | 40.00nF – 4000µF |
| Frequency with jaws (Autorange) | 99.99Hz – 9.999kHz |
| Temperature with type K probe (Autorange) | -20.0°C ÷ 400.0°C – 752 ÷ 1400°F |
| GENERAL SPECIFICATIONS | |
| Mechanical characteristics | |
| Dimensions (L x W x H) | 252 x 88 x 44mm ; 10 x 3 x 2 in |
| Weight (including battery) | 442g (16 ounces) |
| Max conductor size | 45mm (2 in) |
| Supply | |
| Battery type | 1 battery 9V NEDA 1604 IEC 6F22 JIS 006P |
| Battery life | about 200 hours. |
| Auto power OFF | after 15 minutes of idleness (not disabled) |
| Display | |
| Characteristics | 4 LCD (max 6000 counts), decimal point, unit symbol indication, bargraph and backlight |
| Sample rate | 2 times/sec |
| Conversion mode | TRMS |
| Climatic conditions | |
| Reference temperature | 18°C ÷ 28°C (65°F ÷ 83°F) |
| Operating temperature | 0 ÷ 40 °C (32°F ÷ 104°F) |
| Operating humidity | <75%RH |
| Storage temperature | -20 ÷ 60 °C (-4°F ÷ 140°F) |
| Storage humidity | <80%RH |
| Reference Standards | |
| Comply with | IEC/EN 61010-1 |
| Insulation | double insulation |
| Pollution | Level 2 |
| For inside use, max height | 2000m (6562 ft) |
| Installation category | CAT IV 600V, CAT III 1000V to ground, |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 1000 A |
| Maximum Current DC | 1000 A |
| Maximum Voltage AC | 1000 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 45 MM (1.77 IN) |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Auto Ranging |
Test Equipment General Attributes |
|
| Unique Features | TRMS measurement DC/AC current up to 1000A DC/AC voltage up to 1000V |
| Safety Approval | CE |
| Product Weight | 422 GRAMS (0.930 LBS) |
| Product Height | 44 MM (1.73 IN) |
| Product Length | 252 MM (9.92 IN) |
| Product Width | 5.50 IN |
| HTS/Schedule B Number | 90303330 |
| ECCN Number | 8.03377E+12 |
| Battery Type | 9v |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 2.75 IN |
| Shipping Length | 12.50 IN |
| Shipping Width | 5.50 IN |
