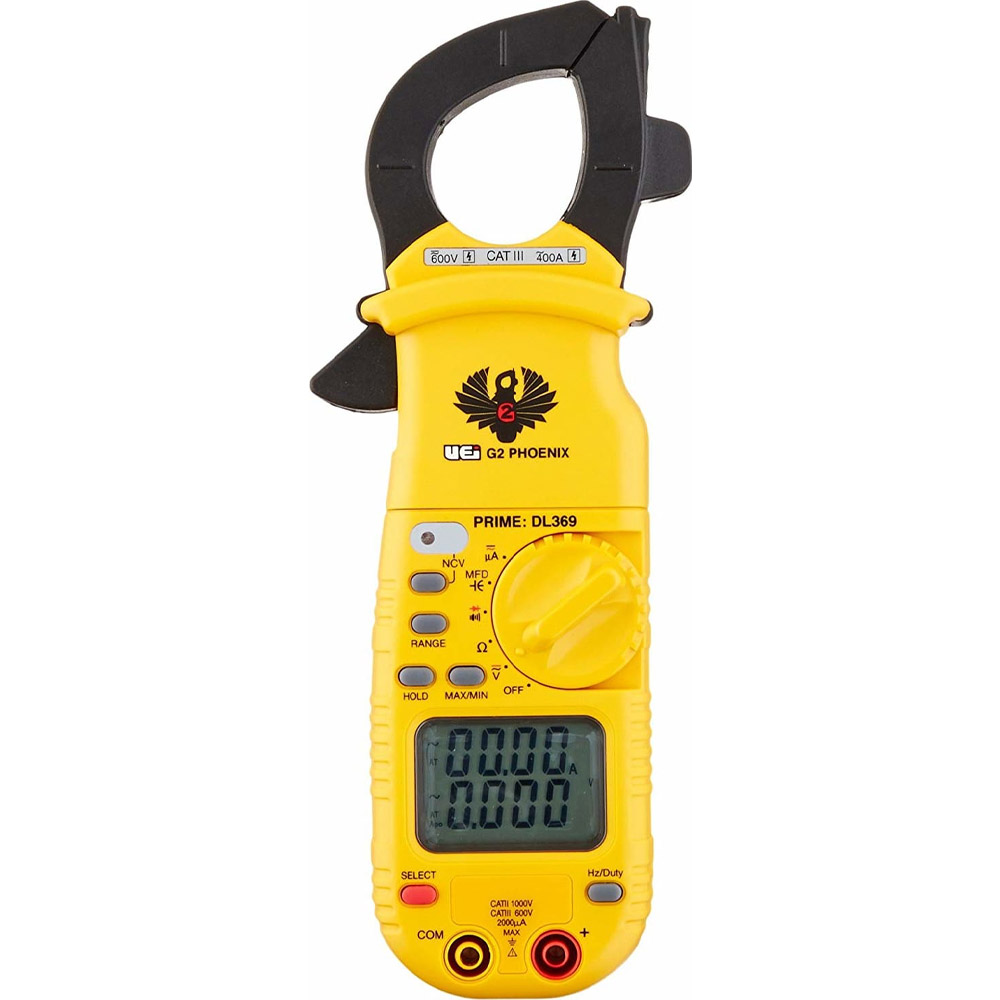

Uei DL369
- 750V AC / 1000V DC
- 400A AC
- 2000µA AC / DC
- 40MO Resistance / Continuity
- 4000µF Capacitance
Dual Display Clamp Meter
The PHOENIX Clamp meter series starts with the DL369, the perfect meter for contractors who need basic features without all the extras. Great for general troubleshooting and electrical maintenance, this isn’t just a stripped-down model, the PRIME is a fully functional tough meter made to get the job done.
Manufacturer Specs
| AC Amps Measurement (45Hz to 400Hz JAW INPUT) | |||
| Range | Resolution | Accuracy | Overload Protection |
| 40A | 0.01A | ±2.9% +15 dgts | 600V |
| 400A | 0.1A | ±1.9% +8 dgts | |
| (Crest factor <3:1) | |||
| DC Low Amps Measurement (TEST LEAD INPUT) | |||
| Range | Resolution | Accuracy | Overload Protection |
| 400µA | 0.01µA | ±1.2% +3 dgts | 2000µA / 600V |
| 2000µA | 0.1µA | ||
| DC Volts Measurement | |||
| Range | Resolution | Accuracy | Overload Protection |
| 400mV | 0.1mV | ±0.5% +4 dgts | 600V |
| 4V | 1mV | ||
| 40V | 10mV | ||
| 400V | 100mV | ||
| 1000V | 1V | ±0.8% +10 dgts | |
| AC Low Amps Measurement (TEST LEAD MEASUREMENT) | |||
| Range | Resolution | Accuracy | Overload Protection |
| 400µA | 0.01µA | ±2.0% +5 dgts | 2000µA / 600V |
| 2000µA | 0.1µA | ±1.5% +5 dgts | |
| (Crest factor <3:1) | |||
| AC Volts Measurement (45Hz to 400Hz) | |||
| Range | Resolution | Accuracy | Overload Protection |
| 4V | 1mV | ±2.0% +5 dgts | 600V |
| 40V | 10mV | ||
| 400V | 100mV | ||
| 750V | 1V | ||
| Crest factor <3:1 | |||
| Ohms Measurementt | |||
| Range | Resolution | Accuracy | Overload Protection |
| 400 | 100m | ±1.0% +4 dgts | 600V |
| 4k | 1 | ||
| 40k | 10 | ||
| 400k | 100 | ||
| 4M | 1k | ||
| 40M | 10k | ±2.0% +4 dgts | |
| Capacitance Measurement | |||
| Range | Resolution | Accuracy | Overload Protection |
| 40nF | 0.1µF | ±3.5% +6 dgts | 600V |
| 400nF | 0.1nF | ||
| 4µF | 0.001µF | ||
| 40µF | 0.01µF | ||
| 400µF | 0.1µF | ||
| 4000µF | 1µF | ||
| Temperature Measurement (DL279 & DL289 only) | |||
| Range | Resolution | Test Current (typical) | Overload Protection |
| -22° to 14°F (-30° to -10°C) |
0.1° (0.1°) |
±5.4°F (±3.0°C) |
30V |
| 15° to 752°F (-9° to 400°C) |
0.1°F (0.1°C) |
±1.0% +3.6°F (±1.0% +2.0°C) |
|
| Frequency Measurement | |||
| Range | Resolution | Accuracy | Overload Protection |
| 9.999Hz | 0.001Hz | ±0.1% +4 dgts | 600V |
| 99.99Hz | 0.01Hz | ||
| 999.9Hz | 0.1Hz | ||
| 9.999kHz | 1Hz | ||
| 99.99kHz | 10Hz | ||
| Continuity Measurement | |||
| Open Circuit voltage <2.7V | Overload Protection | ||
| Threshold Approximately <20 | 600V | ||
| Duty(%) Cycle Measurement | |||
| Range | Resolution | Accuracy | Overload Protection |
| 01. to 99.9% | 0.1% | ±(0.2% per kHz +0.1%) +5 count | 600V |
| General Specifications | |||
| Operating temperature | 32° to 113°F (0° to 45°C) | ||
| Storage temperature | 32° to 140°F (0° to 60°C) | ||
| Relative humidity | 0% to 80% RH | ||
| Weight | 11.3Oz (320 grams) | ||
| Calibration Frequency | Annual | ||
| UL Listing | UL 61010-1 | ||
| Battery | 2 x 1.5V LR03 AAA Size | ||
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | No |
| Maximum Current AC | 400 A |
| Maximum Current DC | 2000 A |
| Maximum Voltage AC | 750 V |
| Maximum Voltage DC | 1000 V |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Auto Ranging |
Test Equipment General Attributes |
|
| Product Height | 4.00 IN |
| Product Length | 13.00 IN |
| Product Width | 7.00 IN |
| HTS/Schedule B Number | 9030.31.0000 |
| ECCN Number | EAR99 |
| Country of Origin | United Kingdom |
