UEi DL389B Series True RMS Dual Display Clamp Meter with Temperature

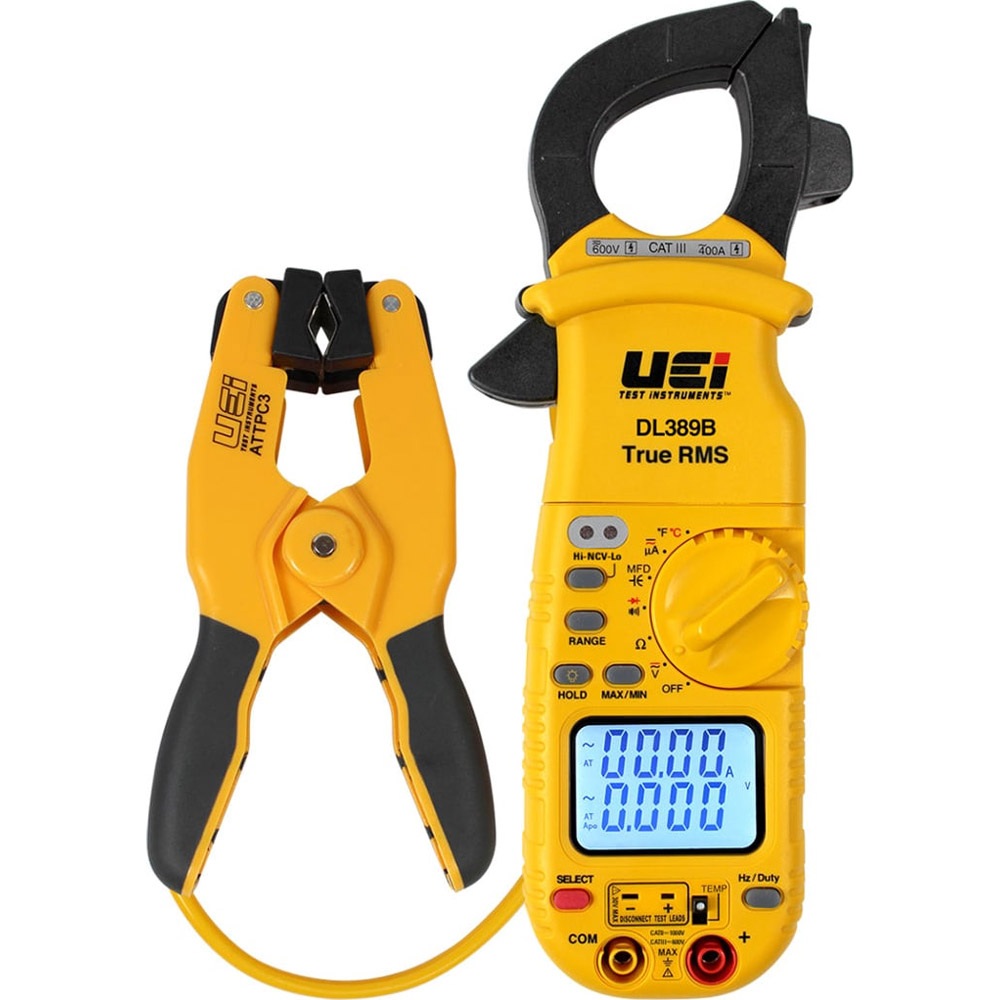

True RMS CLAMP METER DL389B AND ATTPC3
- Magnetic mount
- User temperature calibration
- Auto power off
- Degree ºF or ºC
The UEi DL389B Measure distorted and non-distorted sine waves Measure linear electrical loads. Control voltage or system board checks. Circuit continuity or specified resistance. Motor run or fault starts. Quick check of live wires. Diode test malfunctions/ unbroken paths.
Manufacturer Specs
| General Specifications | |
| Operating Temperature | 32° to 104°F |
| Storage Temperature | -4° to 140°F |
| Operating Humidity | < 80% Max |
| Operating Altitude | 6,562 ft (2000m) |
| Pollution Degree | 2 |
| Display | 4,000 Count |
| Back Light | YES |
| Refresh Rate | 3 per Sec. |
| Over-range | “OL” is displayed |
| Dimensions | 8.70 in x 3.23 in x 1.50 in |
| Item Weight | 11.1 oz |
| Calibration | Recommended Annually |
| CAT Rating | CATIII 600V/CATll 1000V |
| Certifications | CATlll 600V/CATII 1000V, cETLus UL61010-1:2012 |
| Battery Type | (AAA) 2 |
| Includes | Test leads (ATL55), K-Type temperature probe, 2 (AAA) batteries, Manual, Pouch |
| Accuracy | ± (% of reading + # of least significant digits) |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 400 A |
| Maximum Voltage AC | 750 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 0.76 IN |
| Resistance | Yes |
| Capacitance | Yes |
| Auto Ranging/Manual | Both |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Warranty | 2 YEARS |
| Warranty Details | 2-Year limited warranty |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
