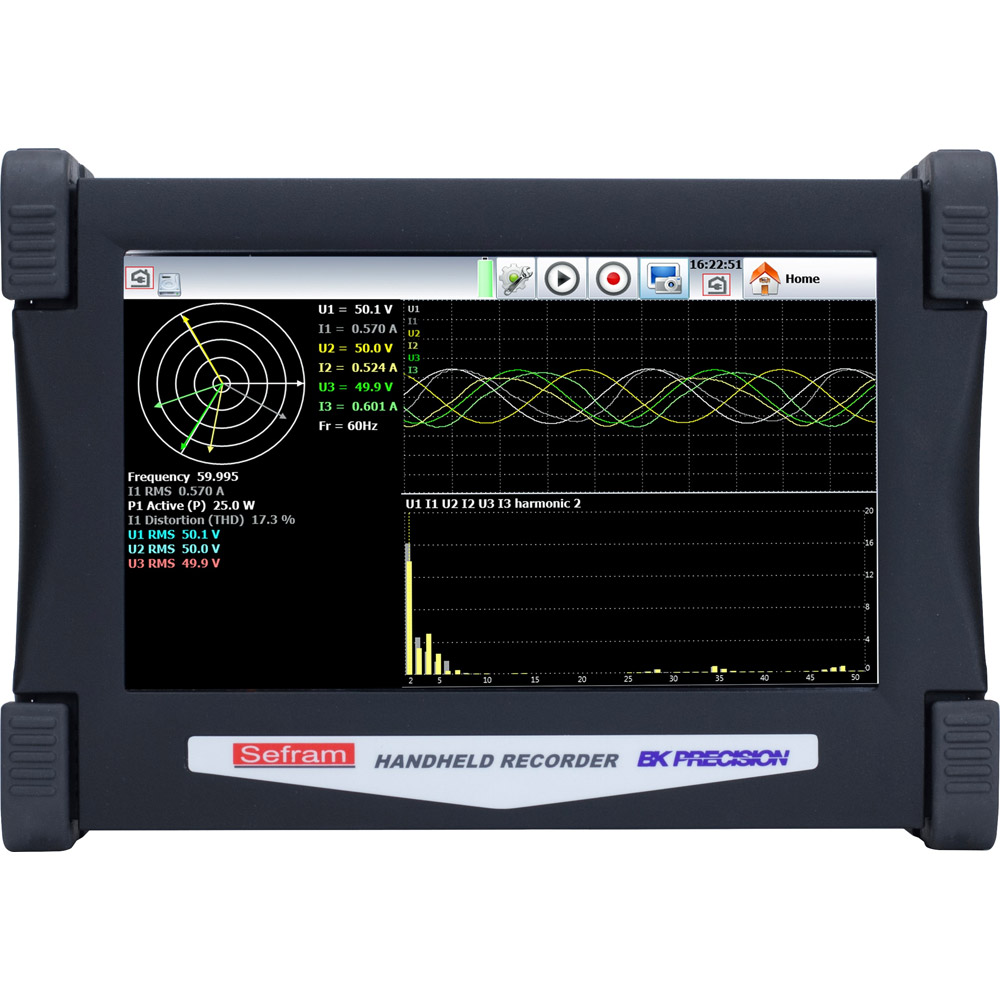

BK Precision DAS60 – 6 Channel High Speed Multi-Function Data Recorder
- 6 analog input channels
- 64 GB internal solid-state memory
- Wide 10-inch touchscreen TFT display
- Battery life up to 9.5 hours
The DAS 30/50/60 high-speed multi-function recorders feature versatile channel configurability, high-speed sampling (1 MSa/s), a wide input range (±5 mv to ±500 V), large internal solid-state memory (up to 64 GB), and 9.5 hours of battery life. Combined with the CAT III isolation rating, these instruments are well suited for applications ranging from small sensor signal logging to electrical power analysis.
The best-in-class 2 μs sampling interval in file mode lets you capture transient events with confidence. Additionally, the large built-in memory allows for data recording over longer periods of time.
Each channel can record a different signal such as voltage, temperature, current or frequency simultaneously, using a common time base. The next-generation touchscreen features unlimited data scrolling, zoom in/out function as well as drag and drop delta cursors for precision measurements.
| Feature | DAS30 | DAS50 | DAS60 |
| Isolated Universal Channels | 2 | 4 | 6 |
| File Mode Sampling Interval | 5 µs (200 kSa/s) | 2 µs (500 kSa/s) | |
| Memory | 32 GB | 32 GB | 64 GB |
| 110 mm Thermal Printer | Factory option | Factory option | Factory option |
| 2 Pt100/Pt1000 Inputs | Factory option | Factory option | Included |
| Power Analysis | Single-Phase | Single-Phase & Delta (Aron) | Single-Phase, & Delta (Aron), Star |
| Power Analysis Frequency | 50/60 Hz | 50/60 Hz | 50/60 and 400 Hz |
| PWM Analysis | – | – | Included |
| Alarms | 2 | 2 | 4 |
Operation Highlights
Channel setup displays all parameters on a single screen
Oscilloscope like display mode with 100 kHz bandwidth
Numerical display of measured values
XY mode for plotting one varying signal versus another
The BK DAS data recorder is available in several configurations, as shown below:
| Model | 2 Pt100/Pt1000 Inputs Factory Installed |
110mm Thermal Printer Factory Installed |
| DAS30 | – | – |
| DAS30-P | – | ✔ |
| DAS30-T | ✔ | – |
| DAS30-PT | ✔ | ✔ |
| DAS50 | – | – |
| DAS50-P | – | ✔ |
| DAS50-T | ✔ | – |
| DAS50-PT | ✔ | ✔ |
| DAS60 | Standard | – |
| DAS60-P | Standard | ✔ |
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Screen Size | 10 IN |
Test Equipment General Attributes |
|
| Warranty | 2 YEARS |
| Product Weight | 5.5 LBS |
| Product Height | 11.5 IN |
| Product Length | 4.1 IN |
| Product Width | 8.25 IN |
| Shipping Weight | 7 LBS |
| Country of Origin | France |
