Descripción
Oakton WD-20250-40 Digi-Sense Temperature/RH Touch Screen Recorder with NIST Traceable Calibration
- Comes with NIST calibration
- Wall mount or desk mount operation
- Resident self-booting software, no installation necessary
- Stored data downloads to computer via USB cable provided in CSV format

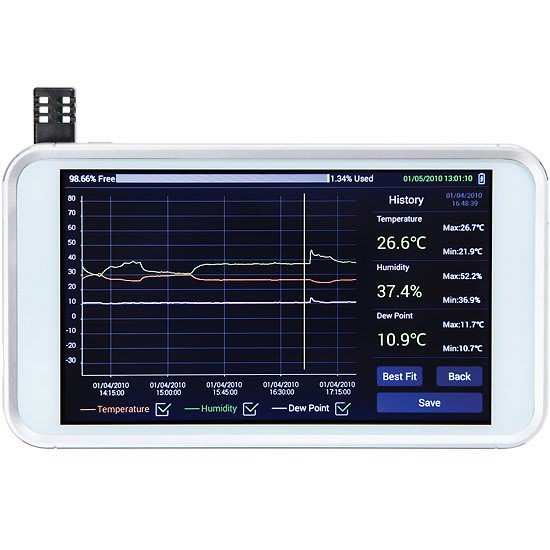

The Digi-Sense Temperature/RH Touch-Screen Monitor (Model 20250-40) measures and logs temperature, relative humidity, and dew point readings in real time and displays them in digital and graphic forms. Intuitive touch-screen menu allows you to program data collection parameters and adjust the graphic display for the best presentation of the data. Software is pre-installed so no downloading is required; just turn the instrument on and it is ready to run. The 8 GB of memory means you have nearly unlimited data collection capability which is easily downloaded to a computer in CSV format for simple integration with standard applications. The instrument is fully tested and calibrated to NIST-traceable standards. Careful use of this unit will provide years of reliable service.
This tablet based instrument measures, displays, and logs temperature, relative humidity and dew point conditions. Measured values are simultaneously displayed both graphically and digitally on a high-resolution color touch-screen display. Monitor conditions related to pharmaceutical, food, and chemical processing and storage. Also ideal for use in greenhouses, museums, laboratories and warehouses.
Operation is very simple out of the box. Push the on/off button and the resident operating software self-boots. Set up data logging attributes including sample frequency, sample size, alarm settings, and units of measure through an intuitive touchscreen menu. The instrument can be placed in real-time mode or set to start logging at some future time.
The instrument mounts on a wall using included bracket. A built-in stand allows the instrument to also be set on a horizontal surface. The temperature/RH sensor plugs directly onto the back of the tablet or can be positioned remotely with use of a 6’ extension cable which is included. Additional 20250-47 extension cables, sold separately, can be linked to extend the sensor up to 9’ from the instrument.
Monitor and log environmental conditions in food, pharmaceutical, laboratory, green house, museum or other sensitive areas.
A 110VAC adapter powers the instrument and a 2500mAH on-board battery provides backup up to six hours in case of power interruption.
Applications
- Food processing
- Environmental monitoring
- Health care
- Storage and warehouse monitoring
- Office and workspace monitoring
Manufacturer Specs
| Oakton WD-20250-40 General Specifications | |
| Max Temperature (° F) | 176 |
| Min Temperature (° F) | 14 |
| Max Temperature (° C) | -10 |
| Min Temperature (° C) | 80 |
| Temperature Resolution (° F) | 0.1 |
| Temperature Accuracy (° F) | 0.9 |
| Temperature Resolution (° C) | 0.1 |
| Temperature Accuracy (° C) | 0.5 |
| Max Humidity RH (RH) | 100 |
| Min Humidity RH (RH) | 0 |
| Humidity Resolution (%) | 0.1 |
| Humidity Accuracy | 2.0% (at 25 degrees C, 20% to 80% RH) 2.5 (at other ranges) |
| Sampling Rate | 1 second up to 24 hour |
| Memory Size | 8GB |
| Interface | USB |
| Alarm | user adjustable high and low level |
| Battery Life | 6 hour typical (backup) |
| Battery Type | 2500 mAH rechargable |
| Display Type | 6″ x 3.5″, 1024 x 600dpi color LCD |
| Height (in) | 4 1/4 |
| Width (in) | 7 5/8 |
| Depth (in) | 5/8 |
| Height (cm) | 10.8 |
| Width (cm) | 19.3 |
| Depth (cm) | 1.6 |
| Description | Temperature/RH Touch Screen Recorder with NIST Traceable Calibration |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| HTS/Schedule B Number | 9025.80.5000 |
| ECCN Number | EAR99 |
| Country of Origin | China |
