Descripción

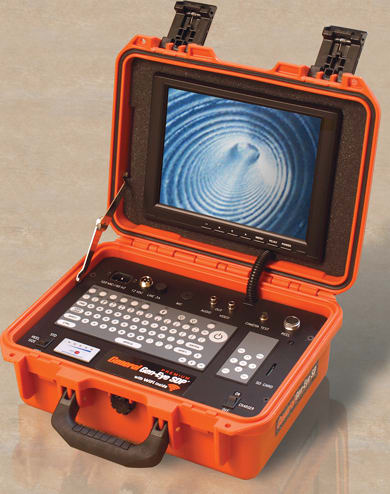

Gen-Eye SL-SDP-B SDP – Sewer Camera Premium Command Module with 200 ft. Gel-Rod, Self-Leveling Color Camera, Open Reel, and 2″, 3″ & 6″ Trap Skids plus Hot Spot Locator with Padded Bag
- 10.4″ LCD Screen
- SD Card Reader
- Waterproof Full Keyboard
- Wi-Fi Transmitter
- 200 ft. Gel-Rod®
- Self-Leveling Color Camera
- Open Reel
- 2″, 3″ & 6″ Trap Skids
- Hot Spot Locator with Padded Bag
The Gen-Eye SDP SL-SDP-B GEN-EYE SDP Premium Package comes complete with 10.4″ LCD screen, SD card reader, waterproof full keyboard, Wi-Fi transmitter, 200 ft. Gel-Rod®, self-leveling color camera, open reel, and 2″, 3″ & 6″ trap skids plus hot spot locator with padded bag.
Weighing just 14 lbs., the versatile, rugged Gen-Eye SDP offers all the features of full-size video inspection systems in a compact, lightweight package. Use the docking arm to mount it on a full size reel to trouble-shoot 3” to 10” lines – or on a mini-reel for 2” to 4” lines.
The Gen-Eye SDP also sports a built-in voice-over microphone with switch, LED dimmer control, camera test port, video and audio out connections for external recording devices, and AC and DC power cords.
Gel-Rod® Push Rods
Patented Gel-Rod push rod withstands tough abuse in the line. The Gel in the cable keeps the moisture away from the wires if it’s ever cut or abraded. Further, the dual layer/dual color construction let’s you see cable wear so it can be repaired before it becomes a problem. The Kevlar® braid, fiberglass core, and durable sheath provide for maximum pushing and pulling power.
Big Capacity Reels
The standard reel holds 200 ft., 300 ft., or 400 ft. of push rod on a sturdy frame and takes up little space in your truck. Eight inch wheels ensure easy transport to and from the job. The mini reel carries 100 ft. or 200 ft. of push rod in a compact frame for easy handling without taking up too much room in your truck.
Advanced Skid Designs Skids keep the camera centered in the pipe for a better view, while reducing drag on longer runs. Standard systems include both 2″, 3″ and 6″ trap skids that protect the camera from abrasion as it slides through cast iron traps. Optional 3-in-1 skid set for 4″, 6″ and 8″ lines, and Universal Roller Skid for 6″ to 12″ lines are also available.
Manufacturer Specs
| General Specifications | ||||
| Self-Leveling Color Camera | Standard Color Camera | Mini Self-Leveling Color Camera | Color Mini Camera | |
| Line Capacity | 3” to 10” | 3” to 10 | 2” to 4” | 2” to 4” |
| Reel Capacity | 200, 300, 400 ft. | 200, 300, 400 ft. | 100 or 200 ft. | 100 or 200 ft. |
| Sensitivity | 0.5 Lux | 0.5 Lux | 0.008 Lux | 0.5 Lux |
| Lighting | 16 White LED’s 88K MCD |
16 White LED’s 88K MCD |
4 Super Bright White LED’s 78K MCD |
12 White LED’s 68K MCD |
| White Balance | Auto High Speed | Auto High Speed | Auto High Speed | Auto High Speed |
| Camera Dimensions | 1.625” Dia. X 2.7” Long | 1.625” Dia x 2.2” Long | 1.125” Dia. X 1.74” Long | 1.125” Dia. X 1.625” Long |
| Push-Rod Diameter | .475” Gel-Rod® | .475” Gel-Rod® | .400” Gel-Rod® | .400” Gel-Rod® |
| Reel Dimensions | 29” L x 16” W x 33-1/2” H | 29” L x 16” W x 33-1/2” H | 18” L x 16” W x 19” H | 18” L x 16” W x 19” H |
| Gen-Eye SDP Case Dimensions | 10-1/2” L x 14” W x 6” H (Closed) 12-1/2” H (Open) |
10-1/2” L x 14” W x 6” H (Closed) 12-1/2” H (Open) |
10-1/2” L x 14” W x 6” H (Closed) 12-1/2” H (Open) |
10-1/2” L x 14” W x 6” H (Closed) 12-1/2” H (Open) |
| LCD Screen Size | 10.4″ Sunlight Readable | 10.4″ Sunlight Readable | 10.4″ Sunlight Readable | 10.4″ Sunlight Readable |
| Video Format | NTSC or PAL | NTSC or PAL | NTSC or PAL | NTSC or PAL |
| Power | 110v/60 Hz AC, 12 VDC 4 hr. Rechargeable Battery |
110v/60 Hz AC, 12 VDC 4 hr. Rechargeable Battery |
110v/60 Hz AC, 12 VDC 4 hr. Rechargeable Battery |
110v/60 Hz AC, 12 VDC 4 hr. Rechargeable Battery |
| Operating Temperature | 14° F to 122° F -10° C to 50° C |
14° F to 122° F -10° C to 50° C |
14° F to 122° F -10° C to 50° C |
14° F to 122° F -10° C to 50° C |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 200 Ft (2400 IN) |
| Shaft Diameter | 1.375 IN (0.025 M) |
| Screen Size | 10.4 IN |
| Screen Type | LCD |
| Video Output Format | NTSC, PAL |
| Max Transmission Range for Wireless | 300 Ft |
Test Equipment General Attributes |
|
| Product Weight | 84 LBS |
