Description
General Pipe Cleaners SL-USBP-A – Gen-Eye USB-P Inspection System Package (Catalog 117420)
- Includes USBP-500 Command Module with Wi-Fi, Sunlight Readable Screen, 4 hr battery, SL-GL-200 reel with Self-Leveling Color Camera, Docking Arm and 2, 3, & 6″ skids
- 10.4″ LCD color screen for crisp clear pictures
- USB recording drive – Can handle up to 128 GB flash drive
- Waterproof keyboard permits on-screen titling
- Internal microphone and speaker for voice over recording

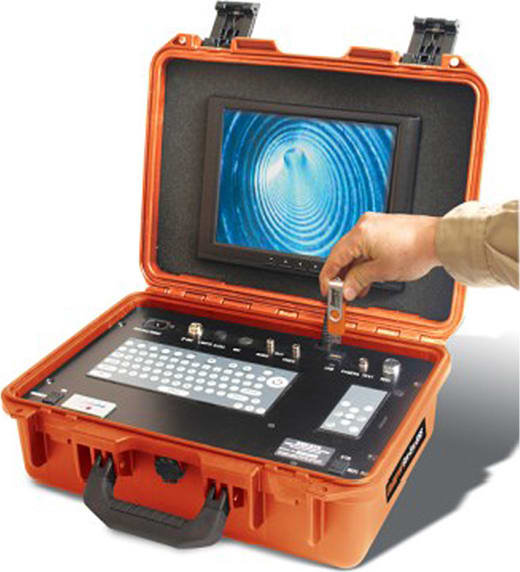

The new Gen-Eye USB Series includes a USB port to record on a flash drive. The Gen-Eye USB packs the features of the Gen-Eye SD Series into a compact package, including up to 128 GB of USB recording capability, a 10.4″ LCD color screen and a waterproof keyboard protected by a heavy-duty Pelican case.
Interested in adding Wi-Fi to your inspection system? You can with the Gen-Eye USB-W. It includes all the features of the Gen-Eye USB, plus a Wi-Fi transmitter inside so you can send video or photos to your smartphone or tablet.
Or upgrade to the Gen-Eye USB-P Premium inspection system that includes all of the features of the Gen-Eye USB, plus a sunlight readable screen, a rechargeable battery that lasts up to 4 hours, as well as the Wi-Fi transmitter.
All units include on-screen distance counter, voice-over recording, camera test port, and date and time stamp.
Gel-Rod Push Rods
Patented Gel-Rod push rod withstands tough abuse in the line. The Gel in the cable keeps the moisture away from the wires if it’s ever cut or abraded. Further, the dual layer/dual color construction let’s you see cable wear so it can be repaired before it becomes a problem. The Kevlar braid, fiberglass core, and durable sheath provide for maximum pushing and pulling power.
Big Capacity Reels
The full size reels feature a self-leveling color camera and 200 ft., 300 ft. or 400 ft. Gel-Rod for inspecting 3″ to 10″ drain lines. Ten inch wheels ensure easy transport to and from the job. The compact Mini-Reels carry 100 ft. or 200 ft. of Gel-Rod with mini self-leveling camera for trouble shooting 2″ and 3″ lines. The tough steel frame can be operated vertically or horizontally, so you can handle nearly any application.
Advanced Skid Designs
Skids keep the camera centered in the pipe for a better view, while reducing drag on longer runs. Standard systems include both 2″, 3″and 6″ trap skids that protect the camera from abrasion as it slides through cast iron traps. Optional 3-in-1 skid set for 4″, 6″ and 8″ lines, and Universal Roller Skid for 6″ to 12″ lines are also available.
Manufacturer Specs
| Line Capacity | Self-Leveling Color Camera – 3″ to 10″ |
| Reel Capacity | Self-Leveling Color Camera – 200, 300, 400 ft. |
| Sensitivity | Self-Leveling Color Camera – 0.5 Lux |
| Lighting | Self-Leveling Color Camera – 16 White LED’s 88K MCD |
| White Balance | Auto High Speed |
| Camera Dimensions | Self-Leveling Color Camera – 1.625″ Dia. X 2.7″ Long |
| Push-Rod Diameter | Self-Leveling Color Camera – .475″ Gel-Rod® |
| Reel Dimensions | Self-Leveling Color Camera – 29″ L x 16″ W x 33-1/2″ H |
| Gen-Eye USB Case Dimensions | 10-1/2″ L x 14″ W x 6″ H (Closed) 12-1/2″ H (Open) |
| LCD Screen Size | 10.4″ |
| Video Format | NTSC or PAL |
| Power | 110v/60 Hz AC, 12 VDC |
| Operating Temperature | 14° F to 122° F -10° C to 50° C |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 100 Ft (1200 IN) |
| Shaft Diameter | 0.4 IN (0.025 M) |
| Screen Size | 7 IN |
| Detachable Screen | No |
| Screen Type | LCD |
| Video Output Format | NTSC, PAL |
Test Equipment General Attributes |
|
| Warranty | 1 YEARS |
| Interfaces I/O | USB |
| Storage | USB Flash Drive |
| Product Weight | 79 LBS |
| Product Height | 19 IN |
| Product Length | 18 IN |
| Product Width | 16 IN |
| Shipping Weight | 91 LBS |
| Power Supply Voltage | 110V |
