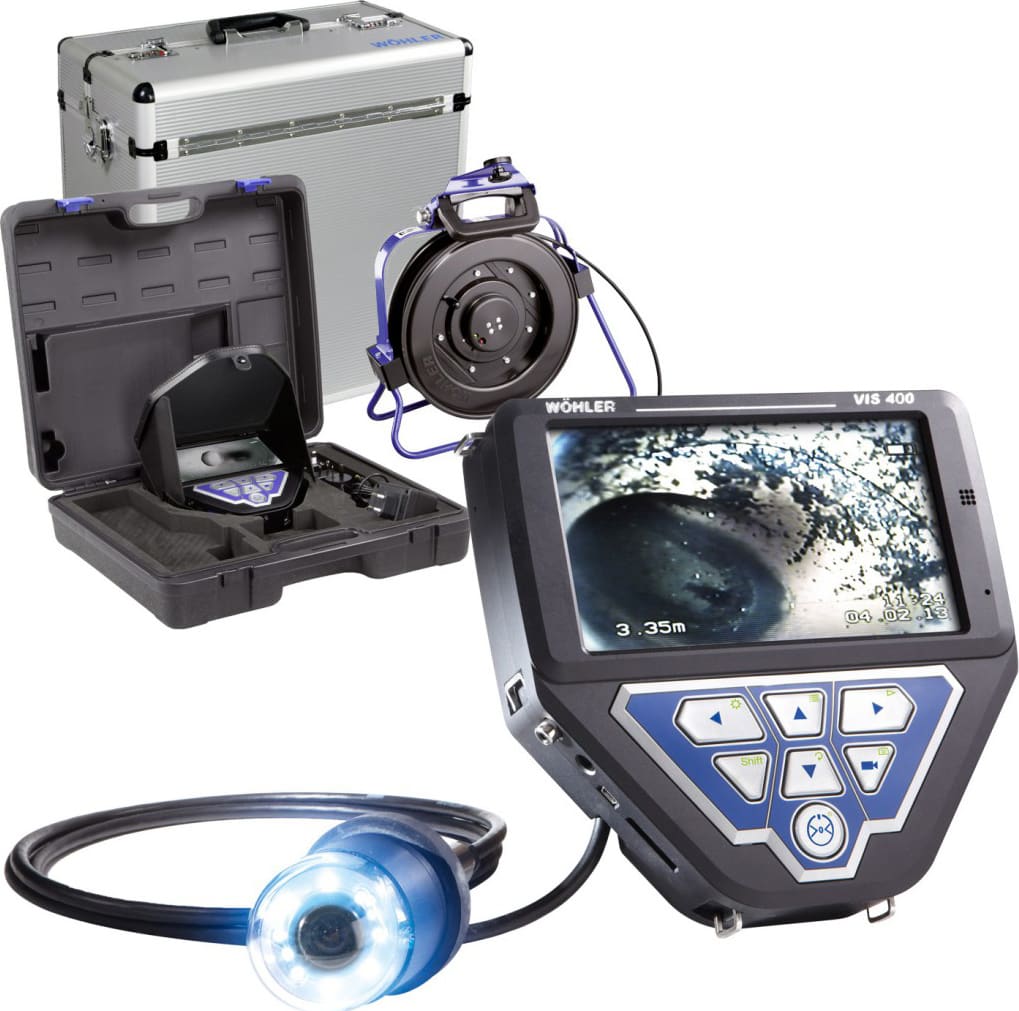

The Wohler VIS 400 Reel Kit is designed for bottom up chimney inspection, and inspection of vents and flues.
Modular by design, it is possible to combine the Wohler VIS 400 Visual Inspection System with a variety of camera vipers, camera cable and camera heads. For instance, simply connect either the Wohler 2″ diameter or the 1.5″ diameter pan & tilt camera head to carry out a variety of inspections. Both of these cameras pan 360 and tilt 180 while offering the best possible lighting. After panning and tilting, the home function automatically aligns the angle of the 1.5″ diameter color camera to straight ahead with a simple push of a button.
View, speak and save
The Wohler VIS 400 will make a video recording of the inspected line run. When damage is discovered, begin the voice recording function to annotate the recording. As well as recording video, you may also take and save still photos at the press of a button.
Knowing where really matters
To be able to assess and specifically target repair work, we at Wohler have perfected the technique of precisely locating the camera head. The distance and the position of the head are displayed on the monitor. The top and bottom of the pipe are displayed on the monitor at all times, even if the camera is being guided up or down or if it is moving left or right. It is even possible to locate the 1.5″ diameter color camera head wirelessly – utilizing the new Wohler L 200 Locator.
Overview of Functions
| Wohler VIS 250 Visual Inspection System |
Wohler VIS 350 Visual Inspection System |
Wohler VIS 400 Modular Visual Inspection System |
|
| APPLICATIONS | |||
| Dry environments – e.g. Flue Gas Systems: |
|||
| 5″ dia or larger | • (1) | • | |
| 4″ dia to 5″ dia | • | • | • |
| 3″ dia to 4″ dia | • | • | • |
| 1.5″ dia to 3″ dia | • | • | |
| Wet environments – e.g. Waste Water Pipes: |
|||
| 5″ dia or larger | • (4) | • | |
| 3″ dia to 5″ dia | • (4,5) | • (4) | • |
| 1.5″ dia to 3″ dia | • (4,5) | • | |
| Twin walls, cavaties, ducts | • | • | |
| FEATURES | |||
| Video Memory | 2 GB SD-Card (VIS 250) | 2 GB SD-Card (VIS 350) | 2 GB SD-Card |
| DM = Digital Meter Counter (Increments of 0.10 ft) | DM | DM | DM with Camera Viper or Cable Reel |
| Video Output | RCA | RCA | RCA |
| Built-in sonde for location (8.9 kHz) | with Wohler L 200 Locator | with Wohler L 200 Locator | |
| Audio recording | • | ||
| TECHNICAL DATA | |||
| Monitor: | |||
| Display | 7″ TFT | 7″ TFT | 7″ TFT |
| Battery Voltage & Technology / Main Supply | 1 x 12 V NiMH battery (Space to store 2 rechargeable NiMH batteries) / Main Supply | 2 x 12 V NiMH batteries / Main Supply | 1 x 12 V NiMH battery / Main Supply |
| Operation Time with batteries | 1 x 120 min = approx. 2 h | 2 x 120 min = approx. 4 h | approx. 2 h |
| Camera Head: | |||
| Dimensions | 1″ x 1.5″ | Ø 1.5″ x 2.4″ | |
| Pan-and tilt range | 360° / 180° | ||
| Protection class | IP 68 (5) | IP 67 | |
| Field of View (FOV) | 120° | 120° | |
| Lighting | 12 x LED white | 12 x LED white | |
| Cable/Push Rod: Length/Diameter |
100 ft, 0.25″ dia | 100 ft, 0.25″ dia | |
| Total Dimensions | 20″ x 17″ x 7″ | 20″ x 17″ x 7″ | 8″ x 8″ x 1.6″ (without bag) |
| Weight | 18 lbs | 18 lbs | 2.6 lbs (without bag) |
(1) top down and bottom top inspection (2) limited use in bends (3) with roller guide, see accessories; splash water proof only (4) recommended for wet applications; (5) waterproof up to 6.5 ft of water
Manufacturer Specs
| Technical Data | |
| Monitor | |
| TFT display | 7″ / 16:9 format |
| Video out | FBAS signal |
| Power supply | 12 V NiMH rechargeable battery, 2.000 mAh |
| Battery operating time | 2 h (battery status in display) |
| Distance measurement | Digital meter counter in conjunction with the camera viper and cable reel |
| Storage | 2 GB SD card (2.5 h recording capacity) |
| Interface | Mini USB port |
| Operating temperature | 32…104 °F |
| Storage temperature | -4…122 °F |
| Dimensions housing without pouch | 8″ x 8″ x 2″ |
| Dimensions housing with pouch | 9″ x 9″ x 3″ |
| Weight | Without pouch 3 lbs; with pouch 4 lbs |
| Connection, stand | Standard |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 100 Ft (1200 IN) |
| Shaft Diameter | 2 IN (0.025 M) |
| Screen Size | 7 IN |
| Screen Type | TFT LCD |
Test Equipment General Attributes |
|
| Country of Origin | Germany |
