Locate damage and inspect:
|
Unique pan & tilt camera head, position indicator, home function and sonde with the Wohler VIS 350

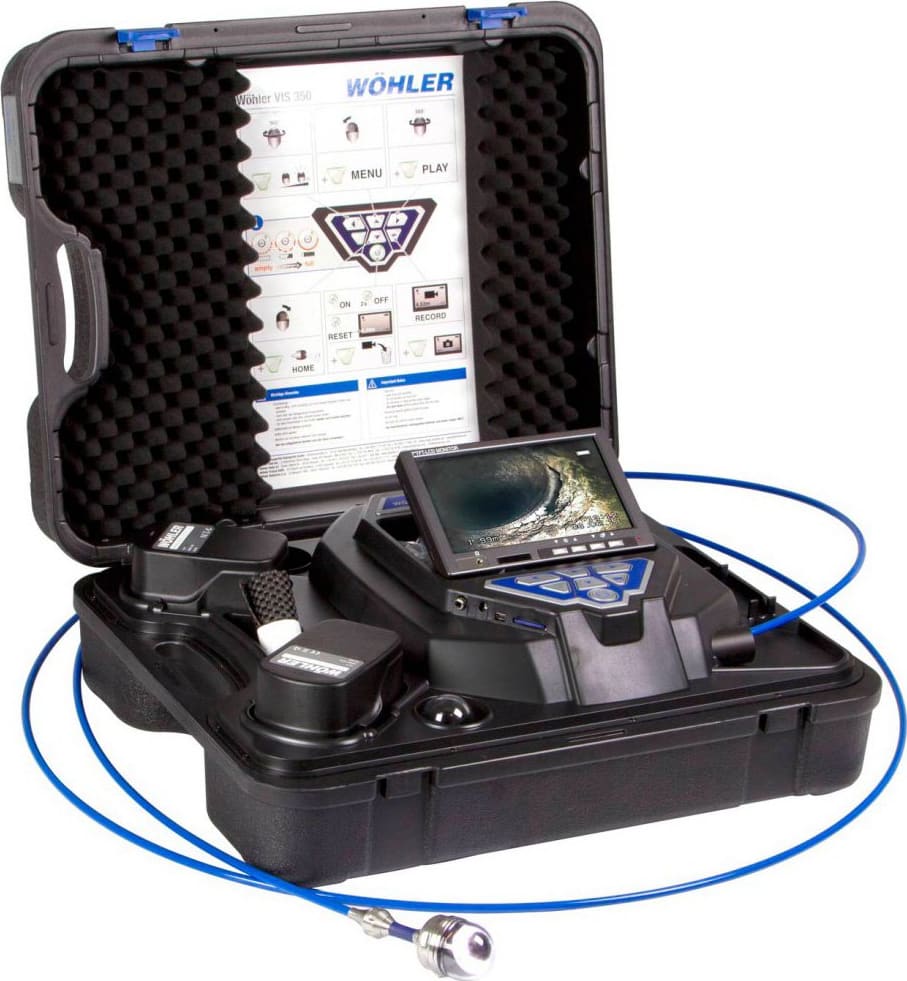

Visual inspection in a case: With the new Wohler VIS 350 camera system, you not only have everything you need to inspect waste water pipes, flue gas, ventilation lines and industrial piping – you can also precisely locate the damage and accurately document the results of the inspection.
| Chimneys, vents and waste water pipes | ||
| Wohler VIS | 350 | 350PLUS |
| Features | ||
| Pan and tilt color camera head 1.5″ dia | • | • |
| Detachable 1″ dia camera head | • | |
| Digital distance measurement | • | • |
| Photo & video record | • | • |
| Menu /Video settings | • | • |
| Transmitter/ Sonde | • | • |
| Angle and gravity indicator | • | • |
| Home-function | • | • |
| Wohler VIS 250 Visual Inspection System |
Wohler VIS 350 Visual Inspection System |
Wohler VIS 400 Modular Visual Inspection System |
|
| APPLICATIONS | |||
| Dry environments – e.g. Flue Gas Systems: |
|||
| 5″ dia or larger | • (1) | • | |
| 4″ dia to 5″ dia | • | • | • |
| 3″ dia to 4″ dia | • | • | • |
| 1.5″ dia to 3″ dia | • | • | |
| Wet environments – e.g. Waste Water Pipes: |
|||
| 5″ dia or larger | • (4) | • | |
| 3″ dia to 5″ dia | • (4,5) | • (4) | • |
| 1.5″ dia to 3″ dia | • (4,5) | • | |
| Twin walls, cavaties, ducts | • | • | |
| FEATURES | |||
| Video Memory | 2 GB SD-Card (VIS 250) | 2 GB SD-Card (VIS 350) | 2 GB SD-Card |
| DM = Digital Meter Counter (Increments of 0.10 ft) | DM | DM | DM with Camera Viper or Cable Reel |
| Video Output | RCA | RCA | RCA |
| Built-in sonde for location (8.9 kHz) | with Wohler L 200 Locator | with Wohler L 200 Locator | |
| Audio recording | • | ||
| TECHNICAL DATA | |||
| Monitor: | |||
| Display | 7″ TFT | 7″ TFT | 7″ TFT |
| Battery Voltage & Technology / Main Supply | 1 x 12 V NiMH battery (Space to store 2 rechargeable NiMH batteries) / Main Supply | 2 x 12 V NiMH batteries / Main Supply | 1 x 12 V NiMH battery / Main Supply |
| Operation Time with batteries | 1 x 120 min = approx. 2 h | 2 x 120 min = approx. 4 h | approx. 2 h |
| Camera Head: | |||
| Dimensions | 1″ x 1.5″ | Ø 1.5″ x 2.4″ | |
| Pan-and tilt range | 360° / 180° | ||
| Protection class | IP 68 (5) | IP 67 | |
| Field of View (FOV) | 120° | 120° | |
| Lighting | 12 x LED white | 12 x LED white | |
| Cable/Push Rod: Length/Diameter |
100 ft, 0.25″ dia | 100 ft, 0.25″ dia | |
| Total Dimensions | 20″ x 17″ x 7″ | 20″ x 17″ x 7″ | 8″ x 8″ x 1.6″ (without bag) |
| Weight | 18 lbs | 18 lbs | 2.6 lbs (without bag) |
(1) top down and bottom top inspection (2) limited use in bends (3) with roller guide, see accessories; splash water proof only (4) recommended for wet applications; (5) waterproof up to 6.5 ft of water
In The Box
- Wohler VIS 350 NTSC Visual Inspection System with detachable 1.5″ color pan & tilt camera head
- Detachable pan and tilt color camera head 1.5″ diameter, V2 NTSC
- 2 GB SD card
- Mini USB cable
- 7″ TFT color monitor
- 6 ft. connection cable (removable monitor)
- 100 ft. push rod (0.26“ dia)
- 5 plastic domes
- 1 anti-slide mat
- 2 NiMH batteries with charger
- Heavy duty carrying case
Manufacturer Specs
| TECHNICAL DATA | |
| Monitor | |
| Dimensions housing | 7″ x 4.5″ x 1.3″ |
| TFT-Display | 7″ / 16:9 format |
| Video-Out | FBAS signal |
| Weight | 1 lbs |
| Power Supply | |
| Power supply | Space for 2 rechargeable batteries, each 12 V or via power pack |
| Battery operating time | Max. 2 rechargeable batteries, each 120 mins. = 4 h (battery status in display) |
| Pan & tilt 1.5″ dia color camera head | |
| Type | 1/3″ COLOR CMOS |
| Pixels | 656 x 492 (NTSC) |
| Light sensitivity | 0.5 Lux |
| Lens | f = 0.09″, F = 2.5 |
| Viewing angle | 115° |
| Light source | 12 white LEDs |
| Degree of protection | Waterproof to IP 67 |
| Dimensions | 1 1/2″ dia x 2″ |
| Operating temperature | 32…104 °F, RH 95 % MAX |
| Storage temperature | -4…122 °F, RH 95 % MAX |
| Locator transmitter | |
| Transmission frequency | 8.9 kHz |
| Push rod | |
| Length | 100 ft. |
| Diameter | 0.33″ |
| Plastic case | |
| Dimensions | 20″ x 17″ x 7″ (l x w x h) |
| Weight | 18 lbs |
| Distance measurement | |
| Wohler VIS 350 / VIS 300 | Electronic meter counter |
| Locator receiver | |
| Display | Graphic visualization of transmitted position |
| Output impedance | |
| Headphones | 32 Ohm |
| Power supply | 12 V MiMH battery (rechargeable) |
| Operating temperature | 32…104 °F |
| Storage temperature | 14 °F…104 °F |
| Weight | 1.3 lbs |
| Dimensions | 13″ x 6″ x 3″ cm (l x w x h) |
| Memory | |
| Recording | 4 GB SD card (2.5 h recording capacity) |
| Interface | Mini USB port |
Tech Specs
Borescopes / Boroscopes/Video Borescopes Template |
|
|---|---|
| Shaft Length | 100 Ft (1200 IN) |
| Shaft Diameter | 0.33 IN (0.025 M) |
| Screen Size | 7 IN |
| Detachable Screen | Yes |
| Screen Type | TFT LCD |
| Video Output Format | NTSC |
Test Equipment General Attributes |
|
