Descripción

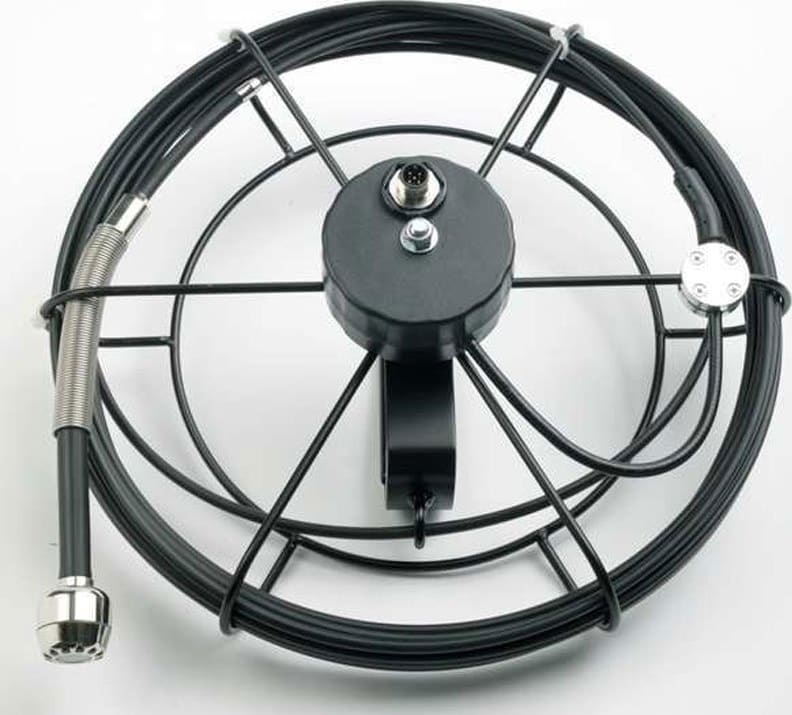

Extech HDV-25CAM-30G – 25mm VideoScope Camera Head with 30m Fiberglass Cable
- HDV-25CAM-30G 25mm VideoScope Camera Head
- 25mm Camera head
- 73° FOV / Long Depth of Field lens
- 30m Fiberglass Cable
73° FOV / Long Depth of Field lens and 30m Fiberglass Cable
The HDV-25CAM-30G is an optional camera for use with the HDV600 VideoScope series. This 25mm Camera head with a long depth of field lens, features a 73° field of view. Thirty meter fiberglass cable length. Minimum focus distance at 0.59 in. (15mm).
Manufacturer Specs
| General Specifications | |
| — | Range |
| Resolution | 640 x 480 pixels |
| Length | 30m (98.4′) |
| Outer diameter (O.D.) | 25mm (0.98″) |
| Focus distance | 6cm to ∞ (2.36″ to ∞) |
| Housing | Copper with Nickel Coating |
| Field of View | 73º |
| Number of Lamps | 12 |
| Lamp Output | max 8000 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
Tech Specs
Accessories/Borescope Probes and Camera Heads Template |
|
|---|---|
| Shaft Length | 30 M (1181.10 IN) |
| Shaft Diameter | 25 MM (0.025 M) |
Test Equipment General Attributes |
|
| Unique Features | 25mm VideoScope Camera Head with long depth of field and 10m Fiberglass Cable |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Product Height | 5.00 IN |
| Product Length | 12.00 IN |
| Product Width | 12.00 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9002119000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Country of Origin | Taiwan |
| Shipping Height | 5.00 IN |
| Shipping Length | 12.00 IN |
| Shipping Width | 12.00 IN |
