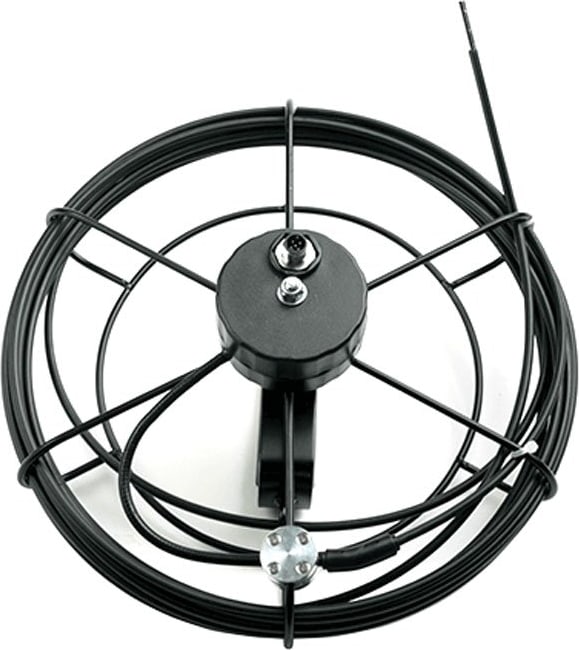

Extech HDV-5CAM-10F – 5.5mm VideoScope Camera Head
- HDV-5CAM-10F 5.5mm VideoScope Camera Head with Macro lens
- 65° FOV / Long Depth of Field lens
- 10m Flexible Cable
- 10m semi-rigid cable length
The HDV-5CAM-10F is an optional camera for use with the HDV600 VideoScope series. This 5.5mm Camera head with a long depth of field lens features a 65° field of view. Ten-meter semi-rigid cable length. Minimum focus distance at 0.59 in. (15mm).
Manufacturer Specs
| General Specifications | |
| — | Range |
| Resolution | 640 x 480 pixels |
| Length | 10m (32.8′) |
| Outer diameter (O.D.) | 25mm (0.98″) |
| Focus distance | 6cm to ∞ (2.36″ to ∞) |
| Housing | copper with nickel coating |
| Field of View | 73° |
| Number of LEDs | 12 |
| Lamp Output | 8000 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
Tech Specs
Accessories/Borescope Probes and Camera Heads Template |
|
|---|---|
| Shaft Length | 10 M (393.70 IN) |
| Shaft Diameter | 5.5 MM (0.0055 M) |
Test Equipment General Attributes |
|
| Unique Features | 5.5mm VideoScope Camera Head with long depth of field and 10m Flexible Cable |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Product Height | 12.50 IN |
| Product Length | 12.25 IN |
| Product Width | 5.50 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9031.49.9000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Country of Origin | Taiwan |
| Shipping Height | 12.50 IN |
| Shipping Length | 12.25 IN |
| Shipping Width | 5.50 IN |
