5.8mm VideoScope Camera Head
°60 FOV / Long Depth of Field lens and 1m Semi-Rigid Cable
°60 FOV / Long Depth of Field lens and 1m Semi-Rigid Cable

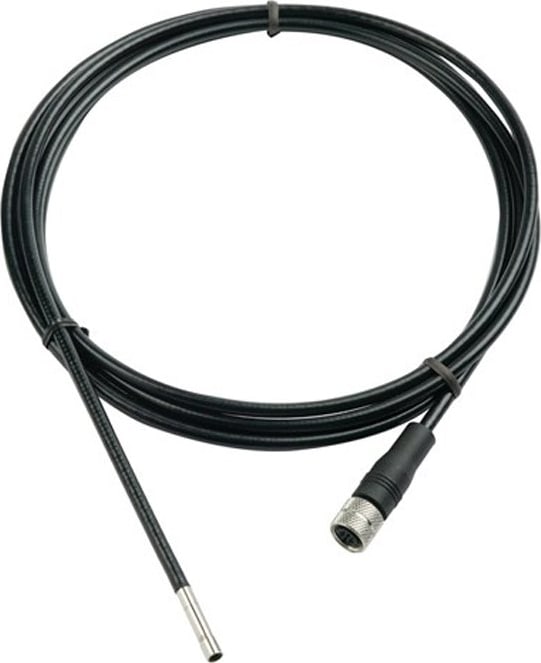

Extech HDV-5CAM-1R 5.8 mm Videoscope Camera Head (1m Cable).
5.5mm camera head with 60 degree FOV / Long Depth of Field lens with 2.3 inch minimum focus. 1m Semi-Rigid Cable.
Manufacturer Specs
| Specifications | |
| Specifications | HDV-5CAM-1R |
| Resolution | 640 x 480 pixels |
| Length | 1 m (3.3’) |
| Outer diameter (O.D.) | 5.5mm (0.22”) |
| Focus distance | 6cm to 8 (2.36” to 8) |
| Housing | Stainless Steel |
| Field of View | 65º |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
Tech Specs
Accessories/Borescope Probes and Camera Heads Template |
|
|---|---|
| Shaft Length | 1 M (39.37 IN) |
| Shaft Diameter | 5.8 MM (0.0058 M) |
Test Equipment General Attributes |
|
| Unique Features | 5.8mm VideoScope Camera Head with long depth of field and 1m Semi-Rigid Cable |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Data Logging | No |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Country of Origin | Taiwan |
