Descripción

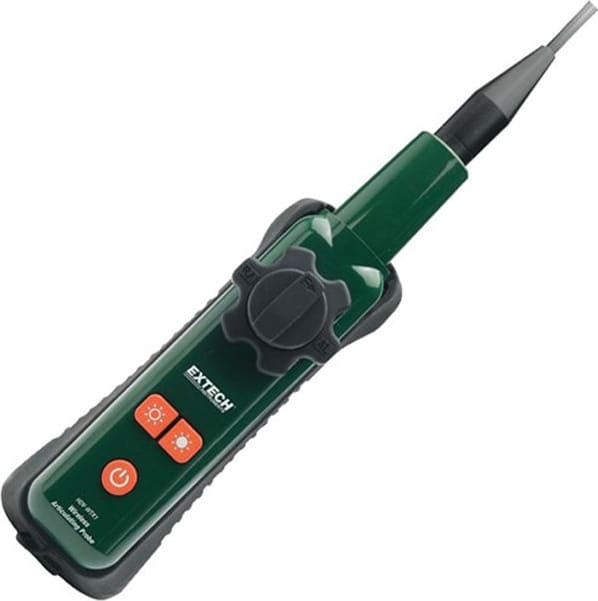

The HDV-WTX1 is a Two-Way Articulating VideoScope Camera with Wireless Transmitter. Probe is one meter fully extended. The HDV-WTX1 features Wireless transmission to Extech’s HDV600 Video Scope. Probe features a 6mm diameter camera, and a 60° FOV. Semi-rigid probe (1m) with 6mm diameter camera & Macro lens.
Manufacturer Specs
| General Specifications | |
| Resolution | 640 x 480 pixels |
| Length | 1m (3.3’) |
| Outer diameter (O.D.) | 6mm (0.02”) |
| Battery | 3.7V rechargeable Li-Polymer |
| Focus distance | 2 to 6cm (0.79 to 2.36”) |
| Housing | Stainless Steel |
| Field of View | 60° |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Warranty | 1 year |
Tech Specs
Accessories/Borescope Probes and Camera Heads Template |
|
|---|---|
| Shaft Length | 1 M (39.37 IN) |
| Shaft Diameter | 6 MM (0.006 M) |
Test Equipment General Attributes |
|
| Unique Features | 6mm Wireless Articulating VideoScope Camera Head w/Macro lens & 1m Semi-Rigid Cable |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Product Height | 2.75 IN |
| Product Length | 14.50 IN |
| Product Width | 17.50 IN |
| Data Logging | No |
| HTS/Schedule B Number | 9013.80.9000 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Country of Origin | Taiwan |
| Shipping Height | 2.75 IN |
| Shipping Length | 14.50 IN |
| Shipping Width | 17.50 IN |
