Extech HDV-WTX1L – 6mm Wireless Articulating VideoScope Camera Head w/ Long Focus Lens & 1m Semi-Rigid Cable
- 1m semi-rigid nondetachable probe (camera head)
- 6mm diameter camera, 60° FOV, Long Depth of Field
- Wireless transmission to HDV600 VideoScope
- Articulation knob, Brightness and Power On/Off controls
The HDV-WTX1L is a Wireless Handset and Articulating Probe with a Long Focus Range. Probe is one meter fully extended. The HDV-WTX1L features Wireless transmission to HDV600 Video Scope. Semi-rigid probe (1m) with 6mm diameter camera & Long Depth of Field lens.

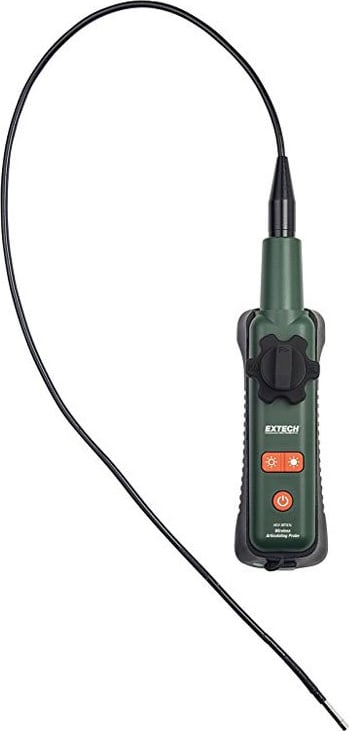

Articulating Probe Description
- Articulation knob
- Articulation tension knob
- Articulating camera
- Light intensity buttons
- Power button
- AC Adaptor jack, charging LED, & extension cable socket
- Carrying strap
Manufacturer Specs
| General Specifications | |
| Resolution | 640 x 480 pixels |
| Length | 1m (3.3’) |
| Outer diameter (O.D.) | 6mm (0.02”) |
| Battery | 3.7V rechargeable Li-Polymer |
| Focus distance | 2 to 6cm (0.79 to 2.36”) |
| Housing | Stainless Steel |
| Field of View | 60° |
| Number of LEDs | 4 |
| Lamp Output | 3500 Lux at 20mm |
| Operating Temperature | -20 to 70°C (-4 to 158°F) |
| Storage Temperature | -20 to 70°C (-4 to 158°F) |
| Warranty | 1 year |
Tech Specs
Accessories/Borescope Probes and Camera Heads Template |
|
|---|---|
| Shaft Length | 1 M (39.37 IN) |
| Shaft Diameter | 6 MM (0.006 M) |
Test Equipment General Attributes |
|
| Unique Features | 6mm Wireless Articulating VideoScope Camera Head w/Long Focus lens & 1m Semi-Rigid Cable |
| Warranty | 1 YEARS |
| Safety Approval | CE |
| Data Logging | No |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Country of Origin | Taiwan |
