Descripción

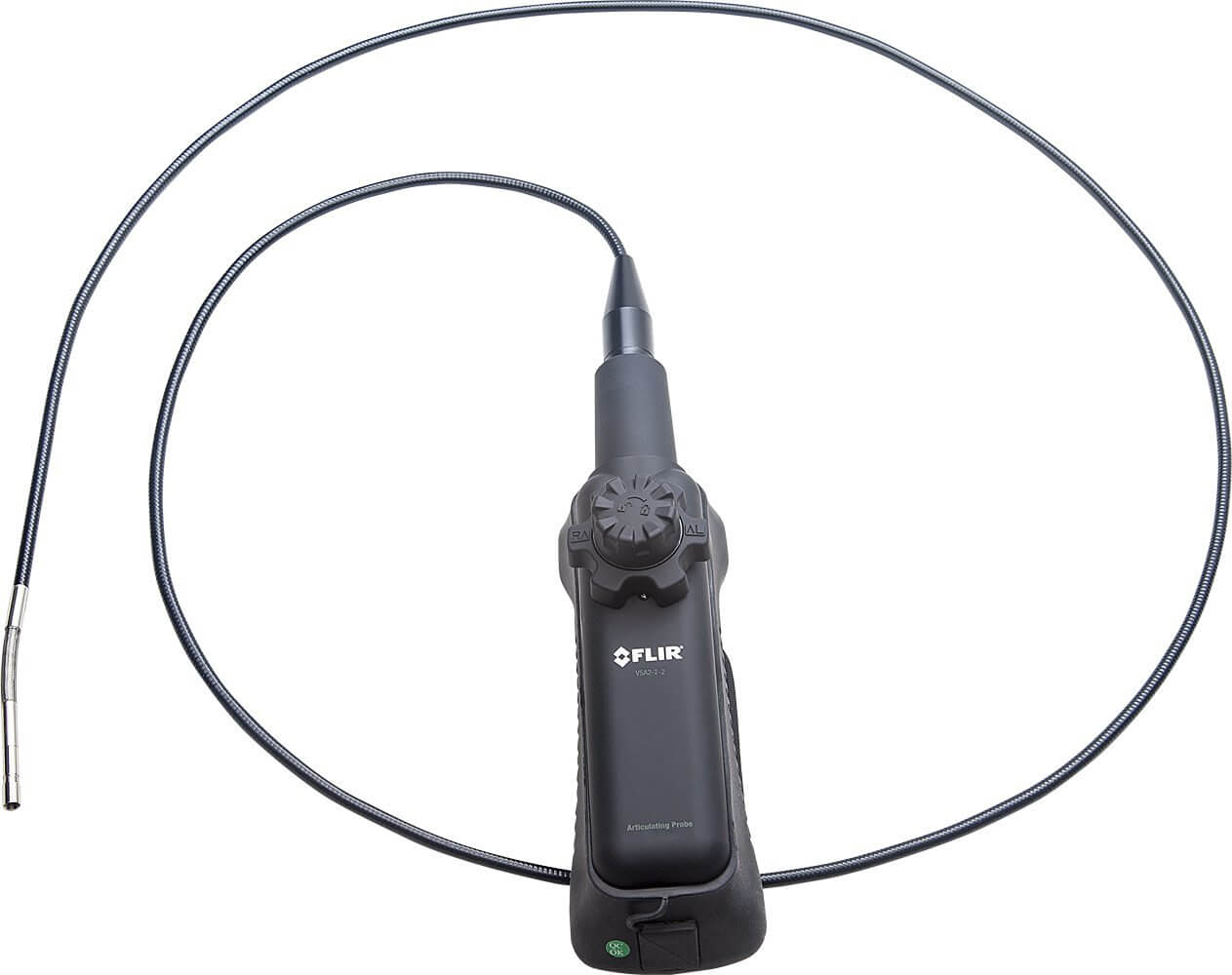

FLIR VSA2-2 Long Focus Videoscope 2 Way 6mm Articulation Camera with 2m Probe
The FLIR VSA2-2 is a wired 2-Way Articulating Videoscope measures 6mm x 2 Meters in length with a focal length of 65 to infinity and a 56 degree FOV.
Manufacturer Specs
| General info | |
| Short description | Two-way 6 mm (0.24″) articulating camera with 2 m (78″) probe with long focus |
| Compatible main unit | VS70 |
| Integrated handset | Yes |
| Wireless capabilities | No |
| Compatible wireless handset | N/A |
| Compatible detachable cameras | N/A |
| Camera specifications | |
| Articulation | Two-way 240 ± 20° manual tip articulation |
| Diameter | 6 mm |
| Resolution | VGA ( 640 × 480 pixels) |
| Probe length | 2 m |
| Focal length | 65 mm to infinity |
| Field of view | 56° |
| Imaging sensor | CMOS |
| Video format | NTSC |
| Brightness control | Manual with variable options |
| Lamp type | LED |
| Power system | |
| Power requirements | N/A |
| Environmental data | |
| Operating temperature | –10 to 50°C (14–122°F) |
| Operating humidity | 80% maximum |
| Storage temperature | –40 to 80°C (–40 to 176°F) |
| Physical data | |
| Weight | 0.43 kg (0.95 lb.) |
| Dimensions (H × W × L) | 190 mm × 70 mm × 63.5 mm (7.5″ × 2.75″ × 2.5″) |
| Material | PC-ABS, rubber hand grip, nylon strap |
| Color | Gray, black |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Weight | 0.95 LBS |
| Product Height | 7.5 IN |
| Product Length | 2.5 IN |
| Product Width | 2.75 IN |
| Shipping Weight | 4 LBS |
| Country of Origin | Taiwan |
| Shipping Height | 43 CM (16.93 IN) |
| Shipping Length | 7.5 CM (2.95 IN) |
| Shipping Width | 43 CM (16.93 IN) |
