Descripción

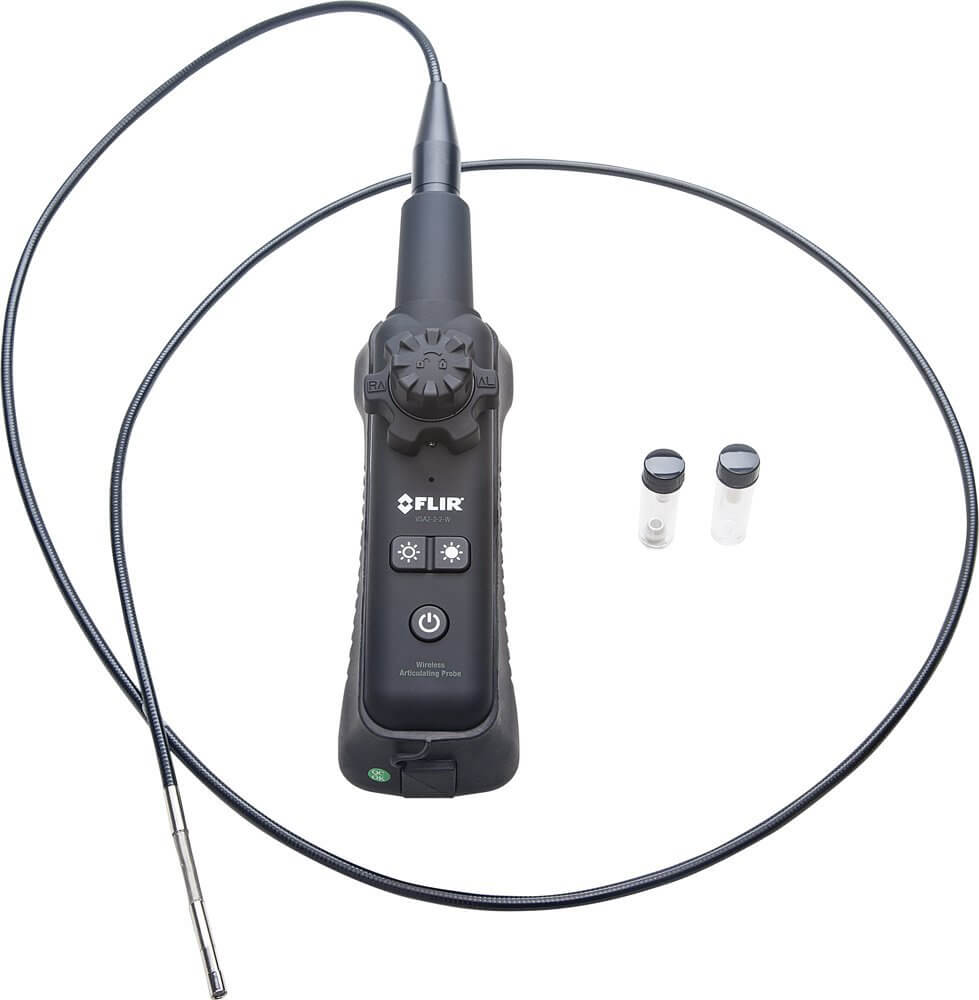

The FLIR VSA2-2-W is a wireless 2-Way Articulating Videoscope measures 6mm x 2 Meter in length with a focal length of 65 to infinity and a 56 degree FOV.
Manufacturer Specs
| General information | |
|---|---|
| Short description | Wireless two-way 6 mm (0.24″) articulating camera with 2 m (78″) probe with long focus |
| Compatible main unit | VS70 |
| Integrated handset | Yes |
| Wireless capabilities | 2.4 GHz to main unit |
| Compatible wireless handset | N/A |
| Compatible detachable cameras | N/A |
| Camera specifications | |
| Articulation | two-way 240 ± 20° manual tip articulation |
| Diameter | 6 mm |
| Resolution | VGA ( 640 × 480 pixels) |
| Probe length | 2 m |
| Focal length | 65 mm to inifinity |
| Field of view | 56° |
| Imaging sensor | CMOS |
| Video format | NTSC |
| Brightness control | Manual with variable options |
| Lamp type | LED |
| Power system | |
| Power requirements | Integrated rechargable battery |
| Run time | 2 hours continuous use |
| Auto power off | No |
| Power adapter | 100–240 V input/5 V DC output |
| Environmental data | |
| Operating temperature | –10 to 50°C (14–122°F) |
| Operating humidity | 80% maximum |
| Storage temperature | –40 to 80°C (–40 to 176°F) |
| Physical data | |
| Weight | 0.43 kg (0.95 lb.) |
| Dimensions (H × W × L) | 190 mm × 70 mm × 63.5 mm (7.5″ × 2.75″ × 2.5″) |
| Material | PC-ABS, rubber hand grip, nylon strap |
| Color | Gray, black |
| Shipping information | |
| Packaging type | White box with FLIR accessory printing |
| Packaging contents | White box with FLIR accessory graphic, VSA2-2-W, camera attachments: mirror, anti-snag tip, magnet |
| Packaging weight | 1.4 kg |
| Packaging dimensions (H × W × L) | 43 cm × 37 cm × 7.5 cm |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Weight | 0.95 LBS |
| Product Height | 7.5 IN |
| Product Length | 2.5 IN |
| Product Width | 2.75 IN |
| Shipping Weight | 3 LBS |
| Country of Origin | Taiwan |
| Shipping Height | 43 CM (16.93 IN) |
| Shipping Length | 7.5 CM (2.95 IN) |
| Shipping Width | 37 CM (14.57 IN) |
