Descripción

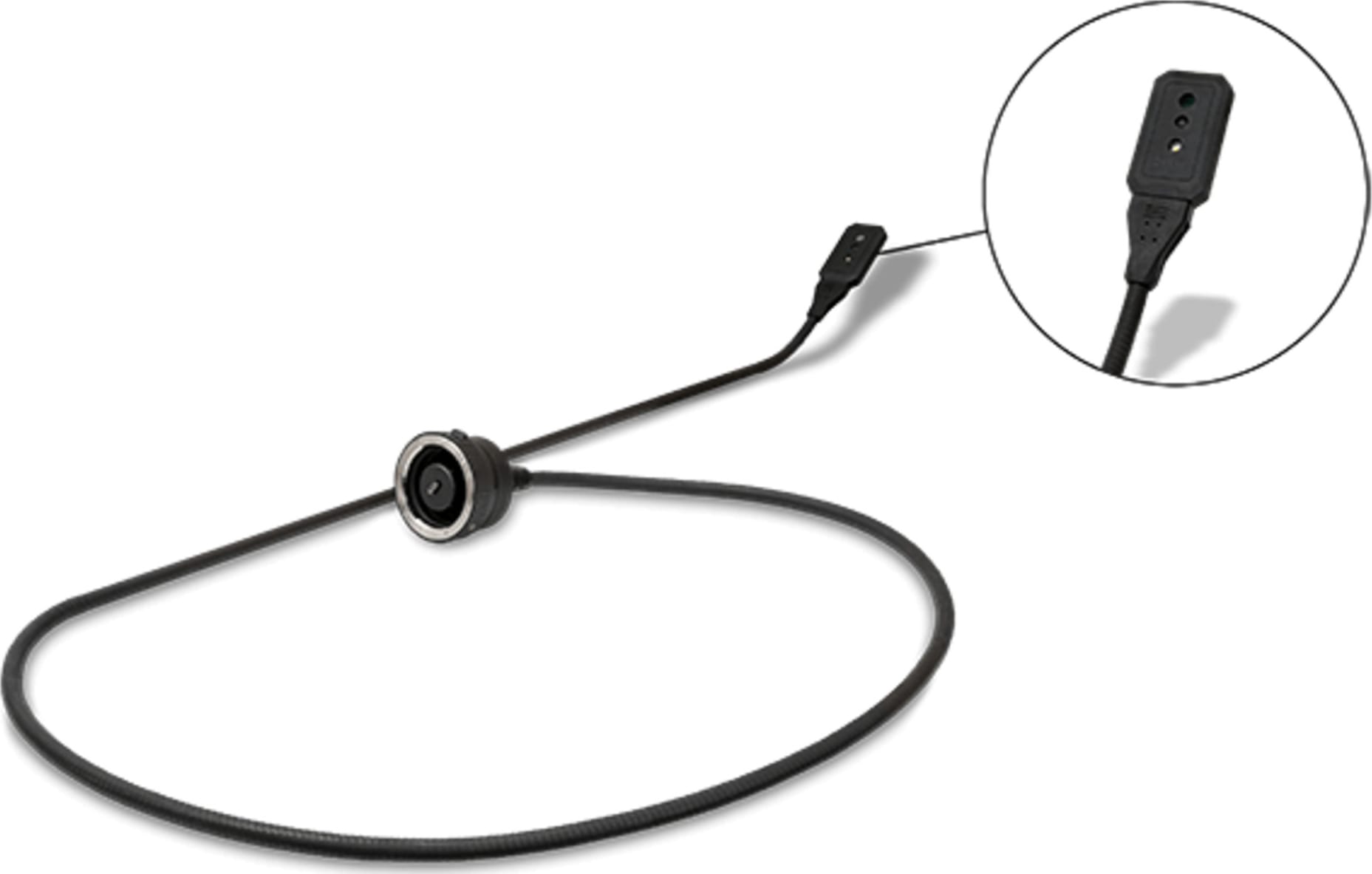

The FLIR VSC-IR32 is a replacement probe for the VS290 videoscope.
Manufacturer Specs
| Imaging and optical data | |
|---|---|
| IR resolution | 160 × 120 pixels |
| Digital image enhancement | Yes |
| Thermal sensitivity/NETD | <100 mK |
| Field of view (FOV) | 57° × 44° |
| Minimum focus distance | 0.15 m |
| Minimum focus distance with MSX | 0.65 m |
| Image frequency | 8.7 Hz |
| Focus | Fixed |
| Detector data | |
| Focal plane array/spectral range | Uncooled microbolometer/7.5–14 µm |
| Detector pitch | 12 μm |
| Measurement | |
| Object temperature range | –10°C to 400°C (14°F to 752°F) (at room temperature) |
| Accuracy | At ambient temp. 15 to 35°C (59 to 95°F) and object temp. above 0°C (32°F). 0 to 100°C (32 to 212°F): ±3°C (±5.5°F) 100 to 400°C (212 to 752°F): ±3% |
| Probe | |
| Structure and Dimensions | 2 m total length with 3 segments:
Probe tip dimensions: 71.7 x 40.5 x 11 mm (2.8 x 1.6 x 0.43 in) |
| Probe Insulation | 2-layers of ruggedized insulating material. Black outer layer and bright yellow inner layer. |
| Digital camera | |
| Resolution | 2 MP (1600 × 1200 pixels) |
| Field of view | 83° |
| Worklight | |
| Model | CREE XPG2 |
| LED CCT | 6500 K |
| LED CRI | 70 |
| Beam angle | 120° |
| Rated power | 0.7 W |
| Light output (Lumens) | 117 lm |
| Encapsulation | Probe tip : IP67 (IEC 60529) |
| Safety | CAT IV 600 V |
| Physical data | |
| Weight (including battery) | 470 g (1.04 lbs) |
| Size (L × W × H) | 212.2 x 0.69 cm (83.5 x 0.3 in) |
| Warranty and service | |
| Shipping information | |
| Packaging, type | Cardboard box |
| Packaging, contents | Thermal MSX camera probe |
| Packaging, weight | 1.26 kg (2.78 lbs) |
| Packaging, size | 32 x 17 x 11.5 cm (12.6 x 6.69 x 4.5 in) |
Tech Specs
Test Equipment General Attributes |
|
|---|---|
| Product Weight | 1.04 LBS |
| Product Height | 4.53 IN |
| Product Length | 12.60 IN |
| Product Width | 6.70 IN |
| Shipping Weight | 2.78 LBS |
| HTS/Schedule B Number | 9013907000 |
| ECCN Number | 6A993.a |
| Country of Origin | Taiwan |
| Shipping Height | 4.53 IN |
| Shipping Length | 12.60 IN |
| Shipping Width | 6.70 IN |
