VGA Resolution Articulating Probes with Light Boost and Anti-Reflection

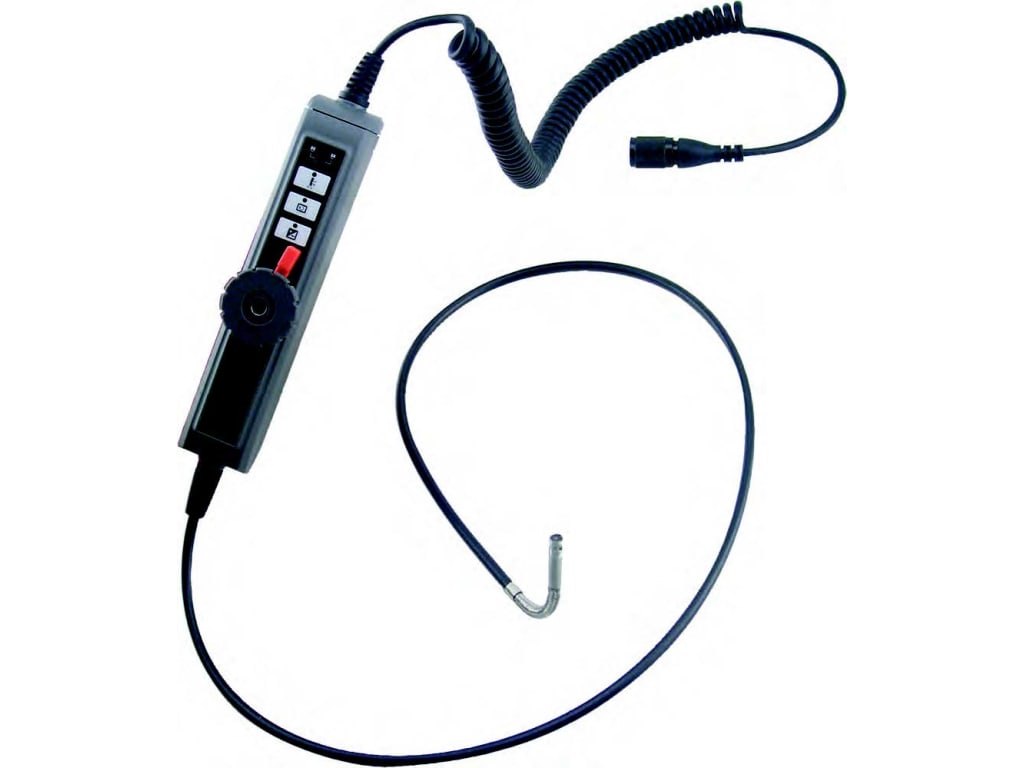

The General Tools P16HPART VGA Resolution Articulating Probe is ideal for capturing high-quality (640 x 480 pixel) video and images of hard-to-reach or hard-to-see areas and equipment. Light boost, anti-reflection and image flip functions extract clear images from even the darkest spaces. General Tools P16HPART VGA Resolution Articulating Probe is compatible with General’s DCS1600, DCS1600ART and DCS1800 high-performance video borescope inspection systems, H16 handheld recording console and DCS1800-TR wireless probe handle/controller.
Manufacturer Specs
| General Tools P16HPART Specification | |
| Probe Type | Soft metal |
| Probe Length | 1m/3.3 ft. |
| Camera Head Diameter, Type | 0.23 in. (6mm), Stainless steel |
| Camera Head Diameter with Thread Protector | 0.26 in. (6.5mm) |
| Camera Head Length | 0.9 in. (23mm) |
| Camera Resolution | VGA (640 x 480 pixels) |
| Camera Depth of Field | 0.25 to 12 in. (6.4 to 300mm) |
| Camera Field of View | 87° (diagonal) |
| Camera Lighting | 3 forward-facing LEDs + 2 side-facing LEDs |
| LED Brightness | 224 mcd (millicandela) each |
| Operating Temperature | -4° to 150°F (-20° to 65°C) |
| Dimensions of Probe Controller | 5.47 x 1.38 x 1.26 in. (139 x 35 x 32mm) |
| Weight of Controller | 7.76 oz. (220g) |
Tech Specs
Accessories/Borescope Probes and Camera Heads Template |
|
|---|---|
| Shaft Length | 1 M (39.37 IN) |
| Shaft Diameter | 4.9 nm (0.0000000049 M) |
Test Equipment General Attributes |
|
| IP Rating | IP67 |
| Product Weight | 7.76 OUNCES (0.485 LBS) |
| Product Length | 39 IN |
| Product Width | 0.23 IN |
| HTS/Schedule B Number | 8529.90.9900 |
| ECCN Number | EAR99 |
| Country of Origin | Taiwan |
| Other Information | Resolution: 640 x 480 pixel (VGA)
Light Type: LED Probe articulates: 155° up and 155° down with radius of 50 ± 5mm Light boost: Yes Anti-reflection: Yes Image rotation: 90° Superior optics tailored for close-focus viewing: 0.4 in. to 12 in. (10 to 300mm) over 87° (diagonal) Steel Camera Head Length: 0.9 in. (23mm) Waterproof: Yes Dimensions of Handle: 5.47 x 1.38 x 1.26 in. (139 x 35 x 32mm) |
