Descripción

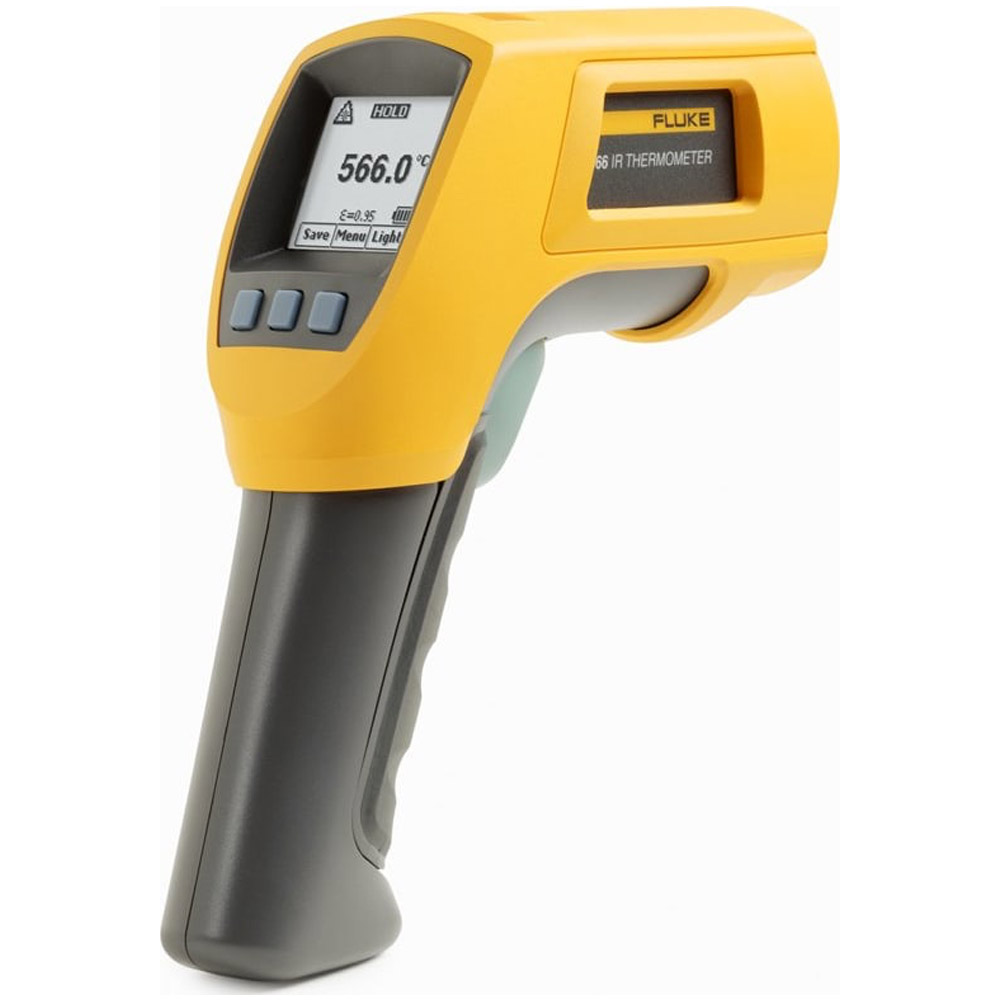

Two-in-one infrared and contact thermometer with an innovative dot matrix display.
Just when you thought advanced IR temperature measurement could be easier! With a straight-forward user interface and soft-key menu, the Fluke 566 makes even complex measurements easy. You can quickly navigate and adjust emissivity, start data logging, or turn on and off alarms, with just a few pushes of a button.
With a rugged, easy-to-use, ergonomic design, the Fluke 566 can stand up to tough industrial, electrical, and mechanical environments. The Fluke 566 has a distance-to-spot ratio of 30:1, enabling users to measure smaller objects or from further away; and the adjustable emissivity feature with built-in materials table or numerical setting allows users to measure a wide variety of surfaces more accurately and to easily compensate for shiny surfaces.
The thermometer provides a broad temperature measurement range from -40 °C to 650 °C/-40 °F to 1202 °F at one percent measurement accuracy, making it appropriate for a wide variety of inspection applications.
A three button on-screen menu interface (with six language options) makes even complex measurements easy. The display has two levels of backlight to facilitate viewing even in challenging lighting conditions.
Manufacturer Specs
| Infrared temperature range | -40 °C to 650 °C (-40 °F to 1202 °F) |
| Infrared accuracy | < 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F); > 0 °C (32 °F): ± 1 % or ± 1.0 °C (± 2.0 °F), whichever is greater |
| Display resolution | 0.1 °C / 0.1 °F |
| Infrared spectral response | 8 μm to 14 μm |
| Infrared response time | < 500 msec |
| Thermocouple Type-K input temperature range | -270 °C to 1372 °C (-454 °F to 2501 °F) |
| Thermocouple Type-K input accuracy | -270 °C to -40 °C: ± (1 °C + 0.2 °/1 °C) (-454 °F to -40 °F: ± (2 °F + 0.2 °/1 °F)) -40 °C to 1372 °C: ± 1 % or 1 °C (-40 °F to 2501 °F: ± 1 % or 2 °F), whichever is greater |
| D | S (distance to measurement spot size): 30:1 |
| Laser sighting | Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm |
| Minimum spot size | 19 mm (0.75 in) |
| Emissivity adjustment | By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 |
| Data storage with Date/Time stamp | 20 points |
| PC Interface and cable | None |
| Hi/Low alarms | Audible and two-color visual |
| Min/Max/Avg/Dif | Yes |
| Display | Dot matrix 98 x 96 pixels with function menus |
| Backlight | Two levels, normal and extra bright for darker environments |
| Trigger lock | Yes |
| Switchable Celsius and Fahrenheit | Yes |
| Power | 2 AA/LR6 Batteries |
| Battery life | If used continuously: laser and backlight on,12 hours; laser and backlight off, 100 hours |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | -20 °C to 60 °C (-40 °F to 140 °F) |
| Bead thermocouple Type-K range | -40 °C to 260 °C (-40 °F to 500 °F) |
| Bead thermocouple Type-K accuracy | ± 1.1 °C (2.0 °F) from 0 °C to 260 °C (32 °F to 500 °F), typically within 1.1 °C (2.0 °F) from -40 °C to 0 °C (-40 °F to 32 °F) |
Tech Specs
Thermometers/IR Thermometers Template |
|
|---|---|
| IR Temperature Max | 1202 F |
| IR Temperature Min | -40 F |
| Field View Ratio (Spot Ratio) | 30:1 |
| Accuracy | < 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F); > 0 °C (32 °F): ± 1 % or ± 1.0 °C (± 2.0 °F), whichever is greater |
| Laser Pointer | Yes |
| Backlight | Yes |
| Emissivity Adjustable | Yes |
| Alarm | Yes |
| Data Hold | Yes |
| Max./Min. | Yes |
| Memory Recall | Yes |
| Thermocouple Input | Yes |
Test Equipment General Attributes |
|
| Unique Features | Measure -40 °C to 800 °C /-40 °F to 1472 °F (568) or -40 °C to 650 °C/-40 °F to 1202 °F (566). Easily access advanced features with the soft-key buttons and dot-matrix display. Measure smaller objects from further away, with a distance-to-spot ratio of 50:1 (568) or 30:1 (566). Compatibility with all standard miniconnector Type-K thermocouples allow you to preserve your thermocouple investments. Confidently measure a wide variety of surfaces, with the adjustable emissivity feature, including a built-in material table. Capture multiple points of data (up to 99 with the 568, and 20 with the 566), for downloading and recalling later. Easily adapt to lighting conditions with 2 levels of backlight. Audible and visual alarms instantly alert you to measurements outside of your set limits. Quickly identify problems with the MIN, MAX, AVG, and DIF functions. Make contact thermometer measurements right away with the included Type-K thermocouple bead probe. |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Interfaces I/O | USB |
| Product Weight | 2.51 LBS |
| Product Height | 2.76 IN |
| Product Length | 7.87 IN |
| Product Width | 7.87 IN |
| Shipping Weight | 2.76 LBS |
| Data Logging | No |
| Calibration Included | None |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 2.76 IN |
| UPC | 095969400367 |
| Shipping Length | 7.87 IN |
| Shipping Width | 2.76 IN |
