Descripción
This tool goes beyond other IR thermometers and pyrometers, helping you work more efficiently in more applications.

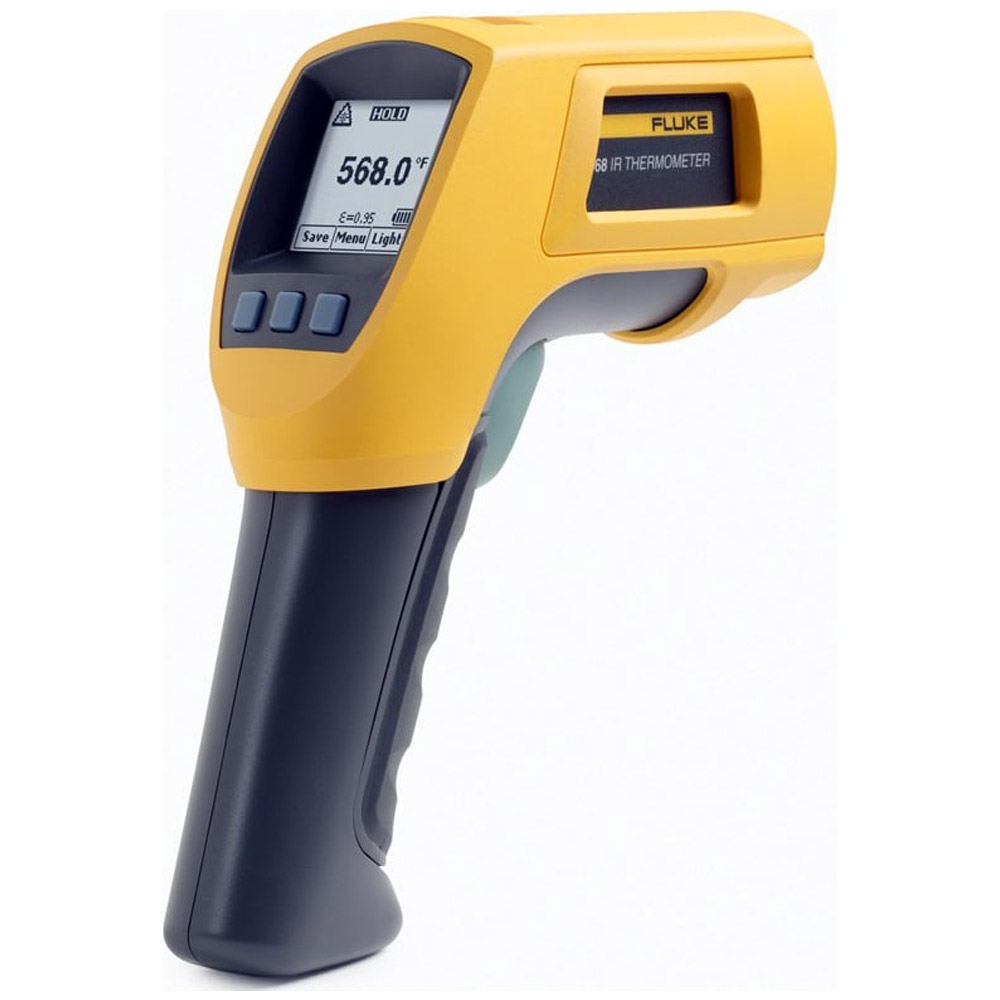

With a rugged, easy-to-use, ergonomic design, the Fluke 568 can stand up to tough industrial, electrical, and mechanical environments. With a straight-forward user interface and soft-key menus, the Fluke 568 Thermometer makes even complex measurements easy. Quickly navigate and adjust emissivity, start data logging, or turn on and off alarms, with just a few pushes of a button.
With a user interface designed for intuitive operation and available in six languages, users can access advanced features such as adjustable emissivity, alarms and data logging easily via a soft-key menu displayed on the dot-matrix LCD screen. The display has two levels of backlight to facilitate viewing even in challenging lighting conditions.
The Fluke 568 Thermometer can capture and store up to 99 points of data, which can be viewed on the thermometer or downloaded quickly to a computer via USB connection for later analysis and trending, using the included FlukeView Forms software. With the USB connection and FlukeView Forms software, the Fluke 568 also can be used for real-time, hands-free monitoring of temperatures to troubleshoot processes and equipment.
Added functionality available only on the 568:
- Quickly download stored data with USB connection
- See your data right away without leaving the site, using the USB and your laptop
- Extend your battery life by powering the digital thermometer from your laptop via the USB
In The Box
- Thermocouple K Bead Probe
- Durable Hard Case
- 2 AA Batteries
- Getting Started guide in six languages
- USB Cable
- FlukeView Forms software on CD
- User’s Manual on CD in six languages (English, Spanish, French, German, Portuguese, and Simplified Chinese)
- 2-year Warranty
Manufacturer Specs
| Infrared temperature range | -40 °C to 800 °C (-40 °F to 1472 °F) |
| Infrared accuracy | < 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F); > 0 °C (32 °F): ± 1 % or ± 1.0 °C (± 2.0 °F), whichever is greater |
| Display resolution | 0.1 °C / 0.1 °F |
| Infrared spectral response | 8 μm to 14 μm |
| Infrared response time | < 500 msec |
| Thermocouple Type-K input temperature range | -270 °C to 1372 °C (-454 °F to 2501 °F) |
| Thermocouple Type-K input accuracy | -270 °C to -40 °C: ± (1 °C + 0.2 °/1 °C) (-454 °F to -40 °F: ± (2 °F + 0.2 °/1 °F)) -40 °C to 1372 °C: ± 1 % or 1 °C (-40 °F to 2501 °F: ± 1 % or 2 °F), whichever is greater |
| D | S (distance to measurement spot size): 50:1 |
| Laser sighting | Single-point laser < 1 mw output Class 2 (II) operation, 630 nm to 670 nm |
| Minimum spot size | 19 mm (0.75 in) |
| Emissivity adjustment | By built-in table of common materials or digitally adjustable from 0.10 to 1.00 by 0.01 |
| Data storage with Date/Time stamp | 99 points |
| PC Interface and cable | USB 2.0 with FlukeView® Forms software |
| Hi/Low alarms | Audible and two-color visual |
| Min/Max/Avg/Dif | Yes |
| Display | Dot matrix 98 x 96 pixels with function menus |
| Backlight | Two levels, normal and extra bright for darker environments |
| Trigger lock | Yes |
| Switchable Celsius and Fahrenheit | Yes |
| Power | 2 AA/LR6 Batteries and USB when used with a PC |
| Battery life | If used continuously: laser and backlight on,12 hours; laser and backlight off, 100 hours |
| Operating temperature | 0 °C to 50 °C (32 °F to 122 °F) |
| Storage temperature | -20 °C to 60 °C (-40 °F to 140 °F) |
| Bead thermocouple Type-K range | -40 °C to 260 °C (-40 °F to 500 °F) |
| Bead thermocouple Type-K accuracy | ± 1.1 °C (2.0 °F) from 0 °C to 260 °C (32 °F to 500 °F), typically within 1.1 °C (2.0 °F) from -40 °C to 0 °C (-40 °F to 32 °F) |
Tech Specs
Thermometers/IR Thermometers Template |
|
|---|---|
| IR Temperature Max | 1472 F |
| IR Temperature Min | -40 F |
| Field View Ratio (Spot Ratio) | 50:1 |
| Accuracy | < 0 °C (32 °F): ± (1.0 °C (± 2.0 °F) + 0.1°/1 °C or °F); > 0 °C (32 °F): ± 1 % or ± 1.0 °C (± 2.0 °F), whichever is greater |
| Laser Pointer | Yes |
| Backlight | Yes |
| Emissivity Adjustable | Yes |
| Alarm | Yes |
| Data Hold | Yes |
| Max./Min. | Yes |
| Memory Recall | Yes |
| Thermocouple Input | Yes |
Test Equipment General Attributes |
|
| Unique Features | Easily trend and analyze data with included FlukeView® Forms software. Quickly download stored data with USB connection. See your data right away without leaving the site, using the USB and your laptop. Extend your battery life by powering the digital thermometer from your laptop via the USB. |
| Warranty | 2 YEARS |
| Safety Approval | CE |
| Product Weight | 2.51 LBS |
| Product Height | 2.76 IN |
| Product Length | 7.87 IN |
| Product Width | 7.87 IN |
| Shipping Weight | 2.76 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9025.80.1000 |
| ECCN Number | EAR99 |
| Calibration Included | None |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 2.76 IN |
| UPC | 095969400374 |
| Shipping Length | 7.87 IN |
| Shipping Width | 2.76 IN |
