Descripción

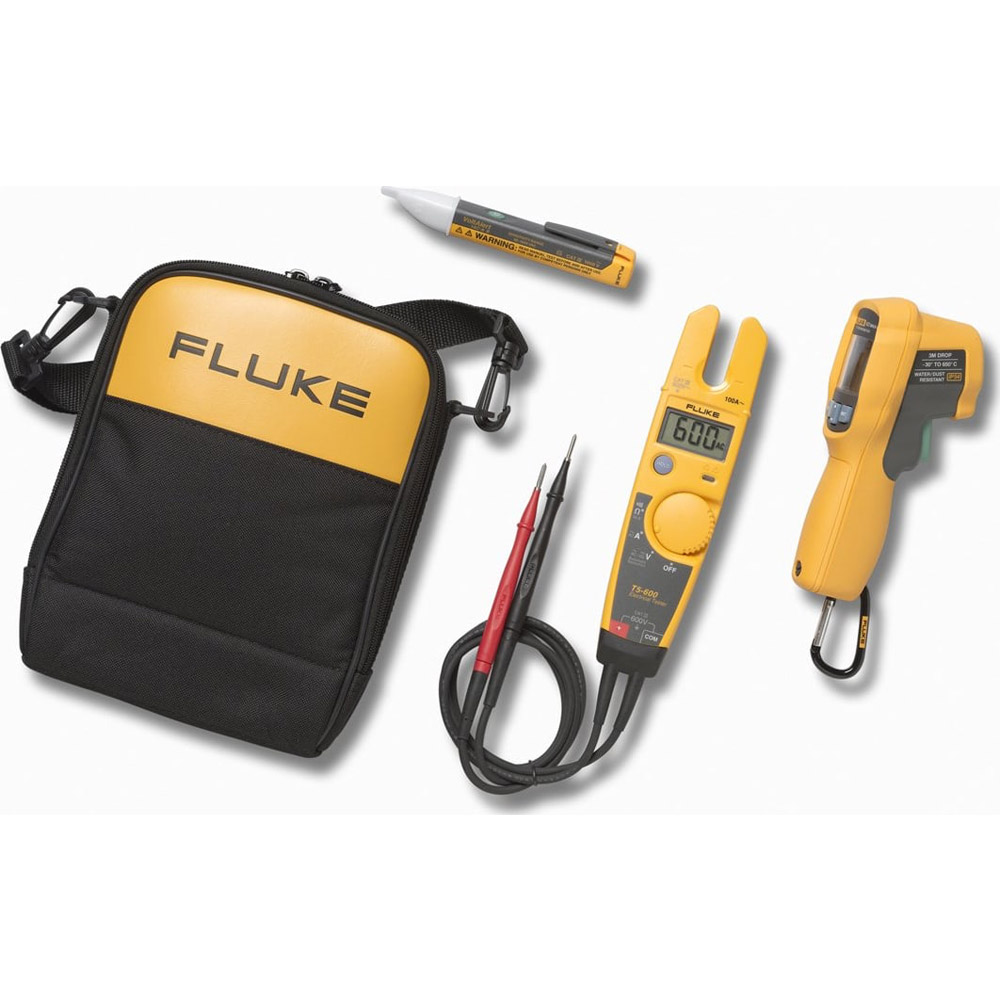

Fluke T5-600 Electrical tester with OpenJaw Current
The Fluke T5 Electrical Testers let you check voltage, continuity and current with one compact tool. With the T5, all you have to do is select volts, ohms, or current and the tester does the rest. OpenJaw™ current lets you check current up to 100A – without breaking the circuit. Its tough test leads stow neatly in the back of the t ester, making it easy to tote the T5 in your tool pouch. Detachable SlimReach™ test probes are customized for national electrical standards. The test leads accept optional accessories such as clips and specialty probes. The optional H5 holster lets you clip the T5 onto your belt.
62 MAX + IR Thermometers: Small in size. Big on toughness.
Designed with your on-the-job needs in mind, the new Fluke 62 MAX and 62+ MAX infrared thermometers are everything you’d expect from the experts in measurement tools. Small in size, extremely accurate and very easy to use. IP54 rated for dust and water resistance. Precise yet rugged enough to take a 3-meter drop. In fact, the 62 MAX and 62+ MAX are so tough, they’re the only IR thermometers around you can handle without care.
The Fluke 62 MAX is ideal for quick temperature scans of systems to look for anything from unusual hot spots that signal electrical and electro-mechanical malfunctions to undesirable air intake/output patterns in the building envelope. Because infrared measurement does not require making contact with the surface being measured, technicians can make the measurements from a distance, away from moving machinery or live electrical connections.
The 62 MAX has a distance-to-spot ratio of 10:1 and measures temperatures from 30°C to 500°C with an accuracy ± 1.5% of the reading. The 62+ MAX has a distance-to-spot ration of 12:1 and measures 30°C to 650°C with an accuracy ± 1.0% of the reading.
Both IR thermometers operate on a single AA battery.
Fluke – 1AC-A1-II The pocket-sized voltage detector
The next generation VoltAlert AC non-contact voltage testers from Fluke are easy to use — just touch the tip to a terminal strip, outlet, or supply cord. When the tip glows red and the unit beeps, you know there’s voltage present. Electricians, maintenance, service, safety personnel, and homeowners can quickly test for energized circuits in the workplace or at home.
Manufacturer Specs
Fluke – T5-600 USA
| Battery | Type | Two AA zinc chloride |
| Life | 200 hour zinc chloride, 400 hour alkaline; low battery indicator | |
| Test leads | Type | Heavy duty, flexible leads rated for 1000V use. Field replaceable leads terminate in male shrouded banana plugs |
| Probes | One red, one black. Detachable Slim-ReachT probe tips in one of two tip | |
| Styles | TP1 flat blade (US style) or TP4 4 mm round (European style) | |
| Continuity beeper | Threshold | On at <25W, off at >400W |
| Volts indicator LED | Threshold | Guaranteed on by 30V ac |
| Environmental | Operating temperature | -10°C to 50°C |
| Storage temperature | -30°C to 60°C | |
| Temperature coefficient | 0.1 x (specified accuracy)/degree C (<18°C or >28°C) | |
| Relative humidity | 0% to 95% (5°C to 30°C) 0% to 75% (30°C to 40°C) 0% to 45% (40°C to 50°C) |
|
| Operating altitude | 2000 meters max Dust and water resistant |
|
| Mechanical | Size | 30.5 mm H x 51 mm W x 203 mm L (1.2″ x 2.0″ x 8.0″) approximate |
| Weight | 0.3 kg (10 oz) approximate | |
| Current sensor opening | 12.9 mm (.508″) | |
| Safety | Maximum operating voltage | 600V ac/dc, Overvoltage Category III |
| Agency approvals | UL, CSA, and VDE | |
| General | Warranty | 2 years |
| Calibration cycle | 1 year |
Fluke – 62 MAX+
| Specifications | |||||||||||||||||||||||
| Temperature Range | Fluke 62 MAx -30 °C to 500 °C (-22 °F to 932 °F) Fluke 62+ MAx -30 °C to 650 °C (-22 °F to 1202 °F) |
||||||||||||||||||||||
| Accuracy |
|
||||||||||||||||||||||
| Response Time (95%) | Fluke 62 MAx <500 ms (95% of reading)
Fluke 62+ MAx <300 ms (95% of reading) |
||||||||||||||||||||||
| Display Resolution | 0.1 °C (0.2 °F) | ||||||||||||||||||||||
| Repeatability of Readings | Fluke 62 MAx ±0.8% of reading or <±1.0 °C (2 °F), whichever is greater Fluke 62+ MAx ±0.5% of reading or <±0.5 °C (1 °F), whichever is greater |
||||||||||||||||||||||
| Power | AA battery | ||||||||||||||||||||||
| Battery Life | Fluke 62 MAx 10 hours with laser and backlight on Fluke 62+ MAx 8 hours with laser and backlight on |
||||||||||||||||||||||
| Physical Specifications |
|
||||||||||||||||||||||
| Standards and Agency Approval | Compliance EN/IEC 61010-1: 2001 Laser Safety FDA and EN 60825-1 Class II |
||||||||||||||||||||||
Fluke – 1AC-A1-II
| Operating principle | Senses the steady state electrostatic ?eld produced by ac voltage through insulation without requiring contact to the bare conductor. A red glow at the tip and a beeping noise (if not switched OFF) indicates the presence of voltage. |
| Voltage sensing ranges | Nominally, 90 V AC to 1000 V AC or 200 V AC to 1000 V AC depending on model, 45 Hz to 405 Hz; also a 20 V to 90 V control circuit model |
| Detector tip style | Blade or round, depending on model |
| Light source | One high intensity red LED |
| Agency Approvals | c CSA us, CE, TUV, C-Tick |
| Safety Rating | 1000 V, CAT IV |
| IP Rating | IP 40 |
| Operating temperature | -10 °C to 50 °C |
| Operating humidity ranges | 0 % to 95 % (0 °C to 30 °C) 0 % to 75 % (30 °C to 40 °C) 0 % to 45 % (40 °C to 55 °C) |
| Operating Altitude | 3000 meters |
| Batteries | 2 AAA alkaline batteries included |
Tech Specs
Voltage / Continuity and Non-Contact Testers/Voltage and Continuity Testers Template |
|
|---|---|
| Type (Voltage Testers) | Non-Contact |
| Style (Voltage Testers) | Hand Held |
| Voltage Tested | AC/DC |
| Continuity | Yes |
| Solenoid Tester | No |
| Current Measurement | Yes |
| Resistance Measurement | Yes |
| Polarity Indication | No |
| Vibration Indiciation | No |
| Diode Testing | No |
| Visual Alarm | No |
| Audible Alarm | Yes |
| CAT Voltage Rating | III |
| Safety Voltage Rating | 600V |
Test Equipment General Attributes |
|
| Unique Features | •Automatically measures volts AC and volts DC with precise digital resolution
•Displays resistance to 1000Ω •Easy and accurate OpenJaw™ current measurement •Continuity beeper •Compact design with neat probe storage •Rugged enough to withstand a 10-foot (3m) drop •Detachable SlimReach™ probe tips are customized for national electrical standards •Test leads accept Fluke accessory test clips •600V model •Can stay connected much longer than solenoid type tester •Auto off mode to conserve battery life •Optional holster attaches to a belt and neatly stows test leads •AC current •Display hold |
| Warranty | 2 YEARS |
| Safety Approval | CSA, UL |
| Interfaces I/O | Analog Output, Other |
| Product Weight | 0.66 LBS |
| Product Height | 1.2 IN |
| Product Length | 7.99 IN |
| Product Width | 2.01 IN |
| Shipping Weight | 0.78 LBS |
| Data Logging | No |
| ECCN Number | 3A992 |
| Calibration Included | NIST Calibration |
| Battery Type | AA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Malaysia |
| Shipping Height | 2.01 IN |
| UPC | 095969659468 |
| Shipping Length | 10.51 IN |
| Shipping Width | 2.99 IN |
