Digilent
Mostrando 1–9 de 32 resultadosOrdenado por los últimos
-

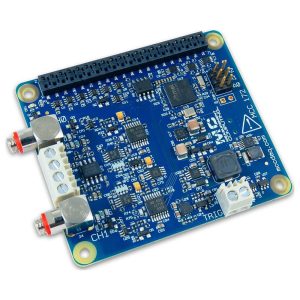

DataloggersData Logger Digilent MCC 172 w/ cables – 24-Bit IEPE Measurement DAQ HAT w/ 2 Coaxial Cables for Raspberry Pi
MCC 172: IEPE Measurement DAQ HAT for Raspberry Pi with two coaxial cables
- Comes with two coaxial cables
- Two IEPE inputs
- Two 24-bit, 51.2 kS/s A/D converters (one per channel)
- AC coupled at ±5 V
- 10-32 and screw terminal connections for OEM support
- Synchronous ADC conversions between multiple boards
- Onboard sample buffers allow high-speed acquisition
- External digital trigger input.
(0 reviews) -

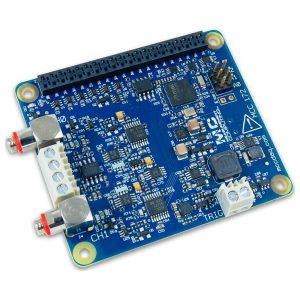

DataloggersData Logger Digilent MCC 172 – 24-Bit IEPE Measurement DAQ HAT for Raspberry Pi
MCC 172: IEPE Measurement DAQ HAT for Raspberry Pi
- Two IEPE inputs
- Two 24-bit, 51.2 kS/s A/D converters (one per channel)
- AC coupled at ±5 V
- 10-32 and screw terminal connections for OEM support
- Synchronous ADC conversions between multiple boards
- Onboard sample buffers allow high-speed acquisition
- External digital trigger input.
(0 reviews) -

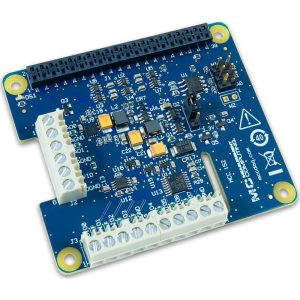

DataloggersData Logger Digilent MCC 152 – 12-Bit Analog Voltage Output & DIO DAQ HAT for Raspberry Pi
MCC 152: Voltage Output and DIO DAQ HAT for Raspberry Pi
- Two 12-bit simultaneous voltage outputs
- 5 mA output drive, sourcing
- 0.8 V/µs slew rate
- Eight bidirectional digital bits
- 5V / 3.3V operation; CMOS input thresholds
- Programmable input polarity
- Screw terminal connections.
(0 reviews) -

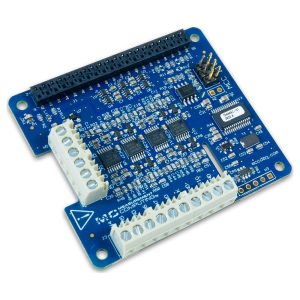

DataloggersData Logger Digilent MCC 118 – 12-Bit, 8-Channel Voltage Measurement DAQ HAT for Raspberry Pi
MCC 118: 12-bit, 100 kS/s, 8 SE Analog InputsVoltage Measurement DAQ HAT for Raspberry Pi
- 8 SE 12-bit voltage inputs
- 100 kS/s max sample rate (320 kS/s aggregate for stacked boards)
- +/-10 V input range
- Onboard sample buffers allow high-speed acquisition
- External scan clock I/O
- External digital trigger input
- Screw terminal connections.
(0 reviews) -

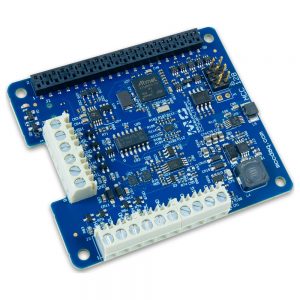

Dataloggersmedidor de Voltaje Digilent MCC 128 – 16-Bit Voltage Measurement DAQ HAT for Raspberry Pi
MCC 128: 16-bit, 100 kS/s, 8 SE/4 DIFF Analog Inputs, Multiple Input RangesVoltage Measurement DAQ HAT for Raspberry Pi
- 8 SE/4 DIFF 16-bit voltage inputs
- 100 kS/s max sample rate (320 kS/s aggregate for stacked boards)
- Multiple input ranges (+/-10 V, +/-5 V, +/-2 V, +/-1 V)
- Onboard sample buffers allow high-speed acquisition
- External scan clock
- External digital trigger input
- Screw terminal connections.
(0 reviews) -
DataloggersData Logger Digilent MCC USB-2020
MCC USB-2020: Ultra High-Speed Simultaneous USB Digitizer.
(0 reviews) -
DataloggersData Logger Digilent MCC WebDAQ 904 – Internet Enabled Universal
MCC WebDAQ 904: Internet Enabled Universal Input Data Logger
- Four simultaneous analog inputs
- Support for voltage (up to ±60 V), current, RTD, thermocouples, resistance, and bridge-based sensors
- 24-bit A/D converter
- Up to 100 S/s/ch sample rate
- Log data to internal storage or mapped network storage
- Internal 3GB memory – optional SD card, and USB slots
- Built-in web server allows access from any device with a web browser
- Alarming and notifications with email and SMS messaging
- Export data to csv, UFF, or binary for other applications
- No driver software to install.
(0 reviews) -
DataloggersData Logger Digilent MCC WebDAQ 504 – Internet Enabled Vibration-Acoustic Data Logger
MCC WebDAQ 504: Internet Enabled Vibration-Acoustic Data Logger
- Four simultaneous IEPE inputs
- 24-bit A/D converter
- Up to 51 kS/s/ch sample rate
- Real-time FFTs for continuous monitoring and analysis
- Log data to internal storage or mapped network storage
- Internal 3GB memory – optional SD card, and USB slots
- Built-in web server allows access from any device with a web browser
- Alarming and notifications with email and SMS messaging
- Export data to csv, UFF, or binary for other applications
- No driver software to install.
(0 reviews) -
DataloggersData Logger Digilent MCC USB-TEMP-AI – Temperature and Voltage Measurement USB DAQ Device (4 temperature inputs, 4 voltage inputs)
MCC USB-TEMP-AI: Temperature and Voltage Measurement DAQ Device (thermocouple, RTD, thermistor, semiconductor sensor, and voltage)
- Eight DIFF analog inputs
- 24-bit resolution
- USB-TEMP-AI: Four temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor) plus four voltage inputs (±10 V, ±5 V, 0-10 V, 0-5 V input ranges)2 S/s/ch sample rate
- Eight digital I/O
- One counter input (USB-TEMP-AI only)
- No external power required.
(0 reviews)
