Digilent
Mostrando 10–18 de 32 resultadosOrdenado por los últimos
-
DataloggersData Logger Digilent MCC USB-ERB24 – Electromechanical Relay USB Device
MCC USB-ERB24: Electromechanical Relay USB Device
- 24 relay channels 24 Form C (SPDT)
- Contact rating: 6 amps at 240 VAC/28 VDC
- USB interface
- Externally powered with included 9 VDC power supply.
(0 reviews) -
DataloggersData Logger Digilent MCC USB-DIO96H – 96 Channel Digital I/O USB Device
MCC USB-DIO96H: 96 Channel Digital I/O USB Device
- 96 channels
- 5.5 V input voltage, 64 mA sink and 24 mA source
- One 32-bit event counter
- USB interface
- Externally powered with included 5 VDC power supply.
(0 reviews) -
DataloggersData Logger Digilent MCC USB-DIO32HS – 32 Channel High-Speed Digital I/O USB Device
MCC USB-DIO32HS: 32 Channel High-Speed Digital I/O USB Device
- 32 channels
- Input scan rate up to 8 MS/s
- Update rate up to 8 MS/s
- Pattern detection and generation
- Independent input and output scan clocks
- 24 mA source, 10 mA sink output current
- External trigger and clock inputs
- No external power required.
(0 reviews) -
DataloggersData Logger Digilent MCC USB-CTR08 – Counter/Timer USB Device (48 MHz)
MCC USB-CTR08: Counter/Timer USB Device
- 8 counter inputs
- 48 MHz maximum input frequency
- Software-selectable resolution up to 64-bits
- Aggregate scan rate of 8 MB/s
- Supports Totalize, Period, Pulsewidth, and Timing counter input modes
- Four independent pulse-width modulation (PWM) timers
- Eight bit-configurable digital I/O channels
- Synchronous high-speed reads of digital and counter inputs.
(0 reviews) -
DataloggersData Logger Digilent MCC USB-2637 – High-Speed High-Channel USB DAQ Device (64 SE Analog Inputs)
MCC USB-2637: 16-bit, 1 MS/s Multifunction DAQ Device with 64 SE Analog Inputs
- USB-2637: 64 SE analog inputs
- 16-bit resolution
- 1 MS/s sample rate
- ±10 V input range
- Four 16-bit analog outputs
- 24 digital I/O
- Four counter inputs
- Four timer outputs
- No external power required.
(0 reviews) -

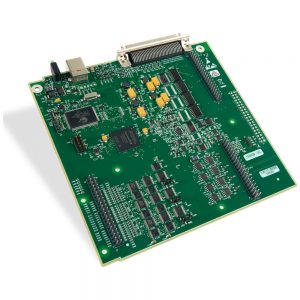

DataloggersData Logger Digilent MCC USB-2627 – High-Speed High-Channel USB DAQ Device (16 SE Analog Inputs)
MCC USB-2600 Series: High-Speed, High-Channel USB DAQ Devices
- USB-2627: 16 SE analog inputs
- 16-bit resolution
- 1 MS/s sample rate
- ±10 V input range
- Four 16-bit analog outputs
- 24 digital I/O
- Four counter inputs
- Four timer outputs
- No external power required.
(0 reviews) -

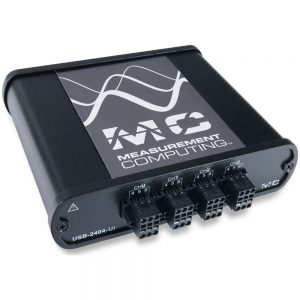

DataloggersData Logger Digilent MCC USB-2404-UI – Universal Input USB DAQ Device
MCC USB-2404-UI: Universal Input USB DAQ Device
- 4 simultaneous analog inputs
- 24-bit resolution
- 100 S/s/ch sample rate
- Universal inputs measure voltage, current, thermocouples, RTDs, resistance, and bridge-based sensors
- ±60 V, ±15 V, ±10 V, ±4 V, ±1 V, ±125 mV input ranges
- 250 Vrms channel to channel isolation
- No external power required.
(0 reviews) -

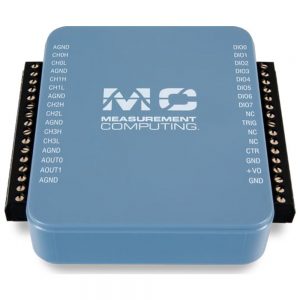

DataloggersData Logger Digilent MCC USB-234 – Multifunction USB DAQ Device (16-bit, 100 kS/s)
MCC USB-234: 16-bit, 100 kS/s Multifunction DAQ Device
- 8 SE/4 DIFF analog inputs
- 16-bit resolution
- USB-234: 100 kS/s sample rate
- ±10 V input range
- Two 16-bit analog outputs
- Eight digital I/O
- One counter input
- No external power required.
(0 reviews) -

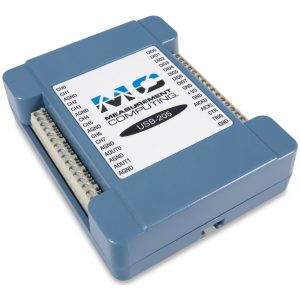

DataloggersData Logger Digilent MCC USB-205 – Single Gain Multifunction USB DAQ Device: 12-bit, 500 kS/s
MCC USB-205 12-bit, 500 kS/s Single Gain Multifunction USB DAQ Device
- Eight SE analog inputs
- 12-bit resolution
- USB-205: 500 kS/s sample rate
- +/-10 V input range
- Two analog outputs
- Eight digital I/O
- One 32-bit event counter input
- External pacer I/O
- No external power required.
(0 reviews)
