Digilent MCC USB-2637
- USB-2637: 64 SE analog inputs
- 16-bit resolution
- 1 MS/s sample rate
- ±10 V input range
- Four 16-bit analog outputs

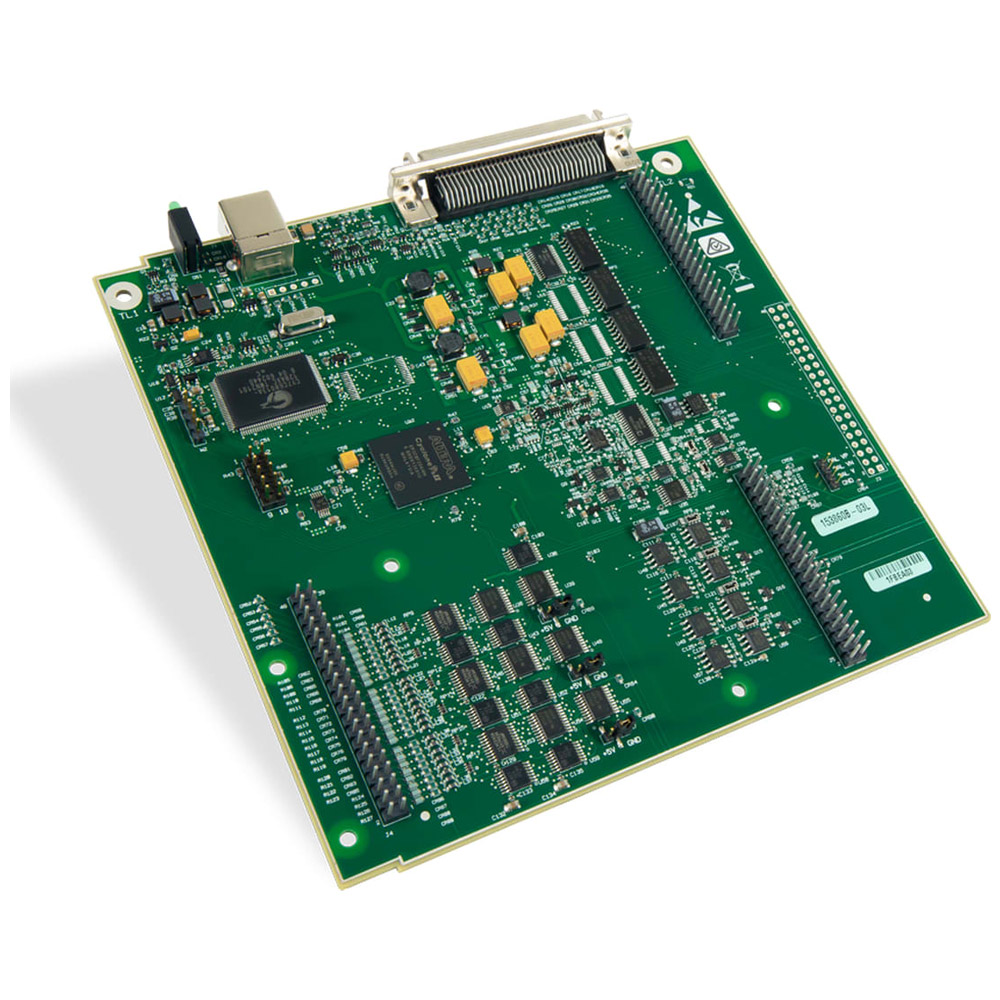

High-Speed High-Channel USB DAQ Device (64 SE Analog Inputs)
Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.
The USB-2600 Series features up to 64 SE analog inputs, 16-bit resolution, 1 MS/s sample rate, four 16-bit analog outputs, 24 digital I/O, four 32-bit counters, and four 32-bit timers.
USB-2627 features 16 SE analog inputs.
USB-2637 features 64 SE analog inputs.
The optional TB-103 screw terminal board connects directly to the 40-pin headers on a USB-2600 Series board, and secures to the board with the included stand-offs, giving access to all signal I/O.
Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also included are drivers for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, MATLAB, Linux, and Python.
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Type (Recorders) | DAQ System |
| Sampling Frequency (Recorders) | 1 MS/S |
Test Equipment General Attributes |
|
| Interfaces I/O | Analog Output, Other, Analog Input |
| Product Length | 6 IN |
| Product Width | 5.93 IN |
| Shipping Weight | 1 LBS |
