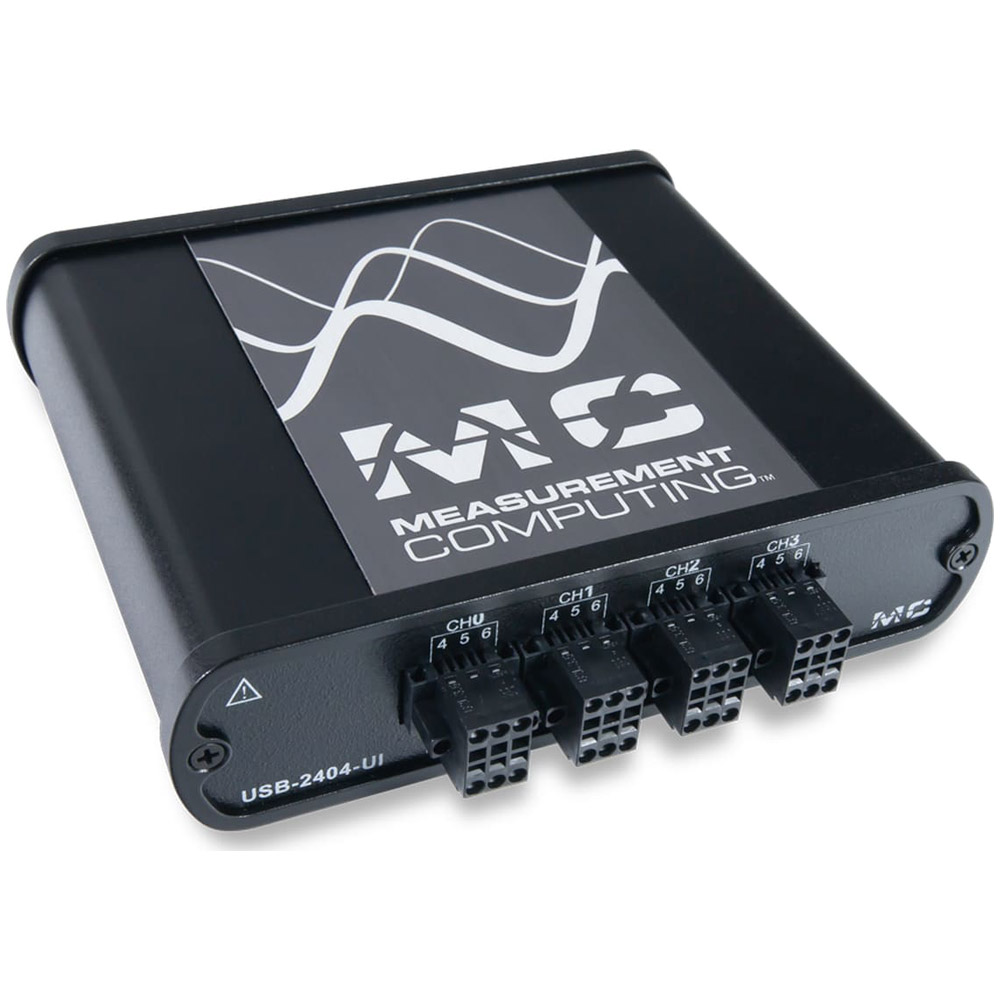

Digilent MCC USB-2404-UI
- 4 simultaneous analog inputs
- 24-bit resolution
- 100 S/s/ch sample rate
- Universal inputs measure voltage, current, thermocouples, RTDs, resistance, and bridge-based sensors
- ±60 V, ±15 V, ±10 V, ±4 V, ±1 V, ±125 mV input ranges
Universal Input USB DAQ Device
Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.
The USB-2404-UI features four simultaneous analog inputs capable of measuring voltage, current, thermocouples, RTDs, resistance, and bridge-based sensors. This device features an A/D per channel and includes channel-to-channel and system-to-host isolation.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, and Python.
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Type (Recorders) | DAQ System |
| Sampling Frequency (Recorders) | 100 S/s (0.0001 MS/S) |
Test Equipment General Attributes |
|
| Interfaces I/O | Other, Analog Input |
| Product Weight | 1.2 LBS |
| Product Height | 4.5 IN |
| Product Length | 5.5 IN |
| Product Width | 1.5 IN |
| Shipping Weight | 1.40 LBS |
