Descripción

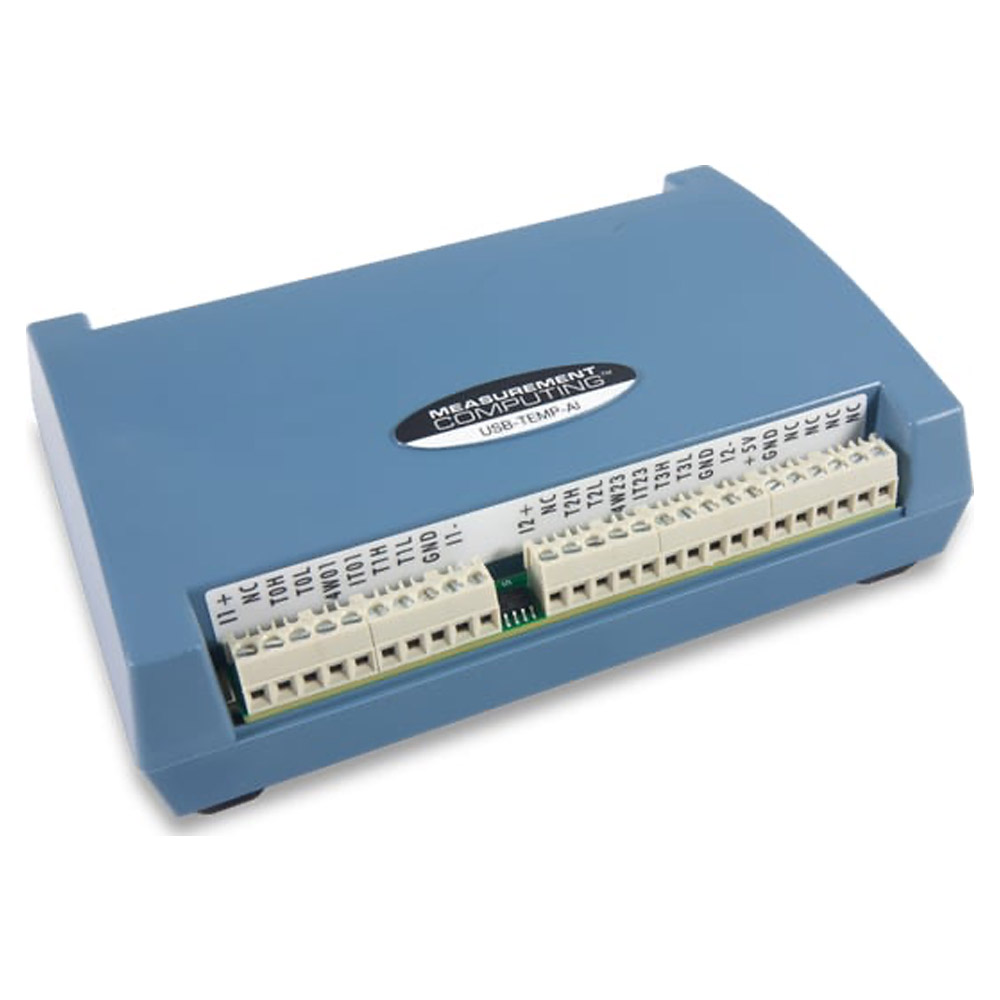

Digilent MCC USB-TEMP-AI
- Eight DIFF analog inputs
- 24-bit resolution
- USB-TEMP-AI: Four temperature inputs (thermocouple, RTD, thermistor, semiconductor sensor) plus four voltage inputs (±10 V, ±5 V, 0-10 V, 0-5 V input ranges)2 S/s/ch sample rate
- Eight digital I/O
- One counter input (USB-TEMP-AI only)
Temperature and Voltage Measurement USB DAQ Device (4 temperature inputs, 4 voltage inputs)
Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.
The USB-TC features eight, 24-bit analog inputs for precise thermocouple measurements, 2 S/s/ch sample rate, and 8 digital I/O.
The USB-TEMP-AI also features eight, 24-bit analog inputs and a 2 S/s/ch sample rate. Four channels can be configured to measure various temperature sensors including thermocouples, RTDs, thermistors, and semiconductor sensors. The last four channels are capable of measuring voltage and offer the following input ranges; ±10, ±5, ±2.5, ±1.25 V. Eight digital I/O and one counter input are also provided.
Software support includes DAQami, an optional out-of-the-box application for data logging, visualization, and signal generation. Data can be viewed in real-time or post-acquisition on user-configurable displays. Drivers are included for the most popular applications and programming languages including Visual C++, Visual C#, Visual Basic.NET, DASYLab, LabVIEW, MATLAB, Linux, and Python.
Tech Specs
Dataloggers / Data Acquisition/Data Recorders Template |
|
|---|---|
| Type (Recorders) | DAQ System |
| Sampling Frequency (Recorders) | 2 S/s (0.000002 MS/S) |
Test Equipment General Attributes |
|
| Interfaces I/O | Other |
| Product Height | 5.06 IN |
| Product Length | 3.48 IN |
| Product Width | 1.43 IN |
| Shipping Weight | 3 LBS |
