Yokogawa
Mostrando 1–9 de 12 resultadosOrdenado por los últimos
-
Medición de ElectricidadPinza Amperimétrica Yokogawa 30032A – Clamp-on Tester Leakage Current with Harmonic Filter (3 mA to 60 A)
AC Leakage Current Mini Clamp-on; 3/30mA/30/60 Amp, Harmonic filter ON/OFF switch
- Maximum AC current = 60 A
- Maximum DC current = N/A
- Maximum AC voltage = N/A
- Maximum DC voltage = N/A
- True RMS = No
- 1.6 inch diameter of measurable conductor
- Leakage current measurement range from 3 mA to 60 A with Harmonic Filter Function
- Mean value display detection method and RMS-value calibration
- Rated for use Cat. III 300 V
- Approved to safety standards EN61010-1, EN61010-2-032
(0 reviews) -
Medición de Electricidad
Multímetro de Gancho Yokogawa CL220 – Clamp-on Tester (300 A AC/DC)
AC/DC Mini Clamp-on
- Maximum AC current = 300 A
- Maximum DC current = 300 A
- Maximum AC voltage = N/A
- Maximum DC voltage = N/A
- True RMS = No
- 1 inch diameter of measurable conductor
- AC/DC current measurements
- Mean value display detection method
- Rated for use Cat. III – 300 V
- Approved to safety standards EN61010-1, EN61010-2-032
(0 reviews) -
Medición de ElectricidadAmperímetro de gancho Yokogawa CL420 – Clamp-on Process Meter (4-20 mA DC Signals)
Clamp-on Process Meter
- Maximum AC current = N/A
- Maximum DC current = 100 mA
- Maximum AC voltage = N/A
- Maximum DC voltage = N/A
- True RMS = No
- 0.2 inch diameter of measurable conductor
- Safe current checks of 4-20 mA DC signals; 0.2% accuracy, 0.01 mA resolution
- LED torch light, backlit display
- DC voltage output (10 mV / mA) function to log and monitor data
- Approved to safety standards EN61010-1, EN61010-2-032, EN61010-2-030.
(0 reviews) -

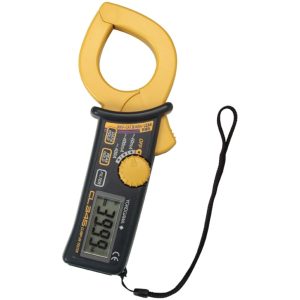

Medición de ElectricidadMultímetro de gancho Yokogawa CL345 – Clamp-on Tester Leakage Current True RMS (400 A AC)
AC LEAKAGE
- Maximum AC current = 400 A
- Maximum DC current = N/A
- Maximum AC voltage = N/A
- Maximum DC voltage = N/A
- True RMS = Yes
- 1.6 inch diameter of measurable conductor
- Leakage current measurement range from 40 mA to 400 A
- True RMS display detection method
- Rated for use Cat. III 300 V
- Approved to safety standards EN61010-1, EN61010-2-032.
(0 reviews) -
Medición de ElectricidadMultímetro de gancho Yokogawa CL340 – Clamp-on Tester Leakage Current (400 A AC)
Leakage Current Mini Clamp-on
- Maximum AC current = 400 A
- Maximum DC current = N/A
- Maximum AC voltage = N/A
- Maximum DC voltage = N/A
- True RMS = No
- 1.6 inch diameter of measurable conductor
- Leakage current measurement range from 40 mA to 400 A
- Mean value display detection method
- Rated for use Cat. III 300 V
- Approved to safety standards EN61010-1, EN61010-2-032.
(0 reviews) -

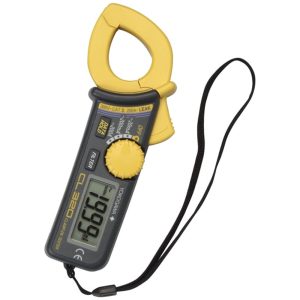

Medición de ElectricidadMultímetro de gancho Yokogawa CL320 – Clamp-on Tester Leakage Current (200 A AC)
Leakage current mini clamp on
- Maximum AC current = 200 A
- Maximum DC current = N/A
- Maximum AC voltage = N/A
- Maximum DC voltage = N/A
- True RMS = No
- 1 inch diameter of measurable conductor
- Leakage current measurement range from 20 mA to 200 A
- Mean value display detection method
- Rated for use Cat. III 300 V
- Approved to safety standards EN61010-1, EN61010-2-032.
(0 reviews) -

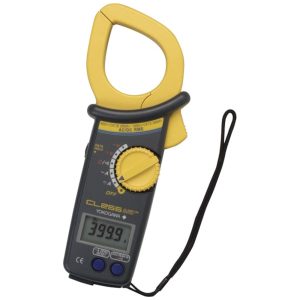

Medición de ElectricidadMultímetro de gancho Yokogawa CL255 – Clamp-on Tester True RMS (2000 A AC/DC)
True RMS ACA, DCA, ACV, DCV
- Maximum AC current = 2000 A
- Maximum DC current = 2000 A
- Maximum AC voltage = 750 V
- Maximum DC voltage = 1000 V
- True RMS = Yes
- 2.2 inch diameter of measurable conductor
- AC/DC voltage and resistance measurements; DC output
- True RMS display detection method
- Rated for use Cat. III – 600 V; Cat. II 1000 V
- Approved to safety standards EN61010-1, EN61010-2-032, EN61010-2-031.
(0 reviews) -

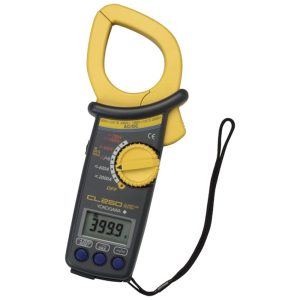

Medición de ElectricidadMultímetro de gancho Yokogawa CL250 – Clamp-on Tester (2000 A AC/DC)
ACA, DCA, ACV, DCV, OHM, Freq. Degrees C Continuity Check
- Maximum AC current = 2000 A
- Maximum DC current = 2000 A
- Maximum AC voltage = 750 V
- Maximum DC voltage = 1000 V
- True RMS = No
- 2.2 inch diameter of measurable conductor
- AC/DC voltage and resistance measurements; DC output
- Mean value display detection method
- Rated for use Cat. III – 600 V; Cat. II 1000 V
- Approved to safety standards EN61010-1, EN61010-2-032, EN61010-2-031.
(0 reviews) -

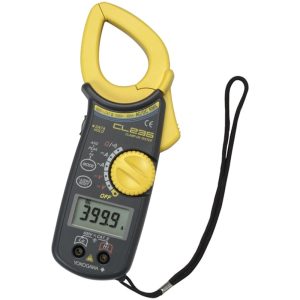

Medición de ElectricidadMultímetro de gancho Yokogawa CL235 – Clamp-on Tester True RMS (600 A AC/1000 A DC)
True RMS ACA, ACV, DCA, DCV
- Maximum AC current = 600 A
- Maximum DC current = 1000 A
- Maximum AC voltage = 600 V
- Maximum DC voltage = 600 V
- True RMS = Yes
- 1.3 inch diameter of measurable conductor
- AC/DC voltage, resistance, and frequency measurements
- True RMS display detection method
- Rated for use Cat. III – 600 V
- Approved to safety standards EN61010-1, EN61010-2-032, EN61010-2-031.
(0 reviews)
