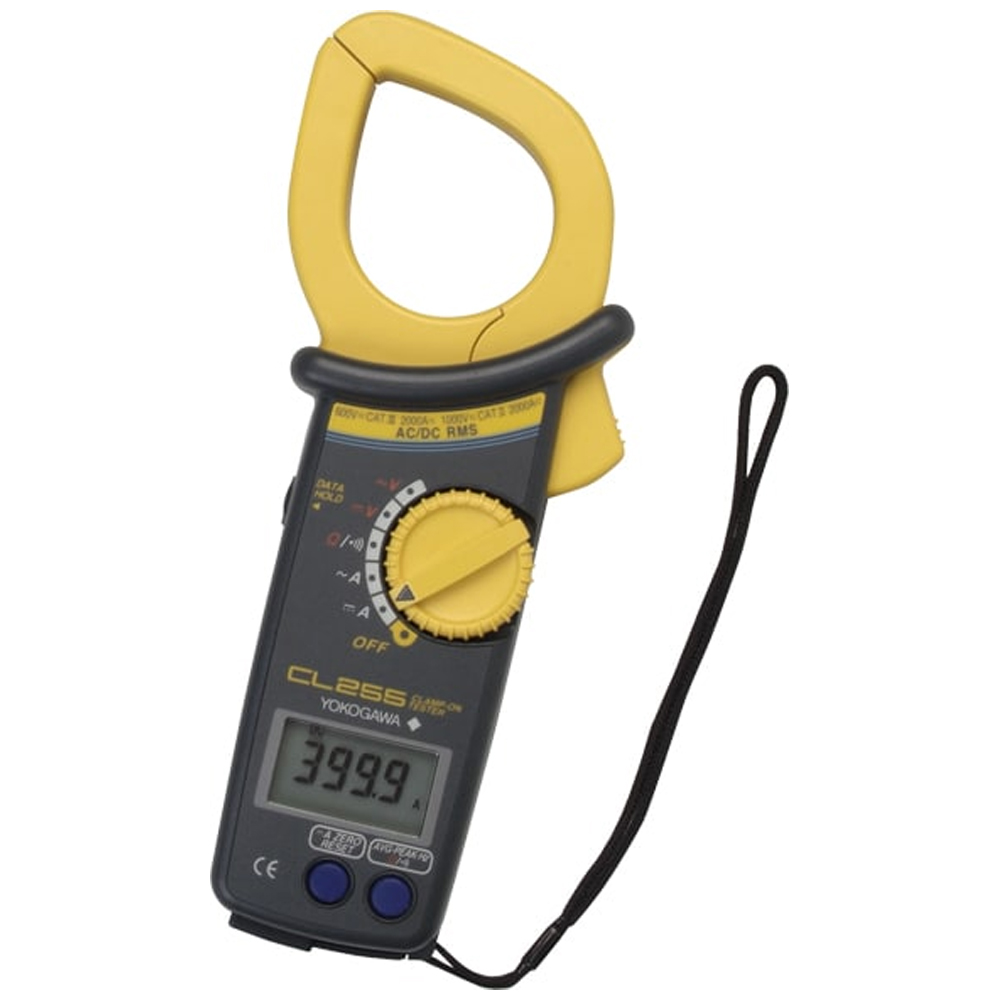

Yokogawa CL255 – Clamp-on Tester True RMS (2000 A AC/DC)
- Maximum AC current = 2000 A
- Maximum DC current = 2000 A
- Maximum AC voltage = 750 V
- Maximum DC voltage = 1000 V
- True RMS = Yes
The Yokogawa CL Series of clamp-on testers consists of AC, AC/DC, DC and leakage current clamps with various ranges and dimensions. There are multiple options for the CL Series including RMS, Mean, Temperature, frequency, and recorder output.
CL Series Features:
- Lightweight, compact design
- Data hold on all ranges
- True RMS or Mean value detection method
- Approximately 2 second response time
- Auto-off or sleep function after 10 minutes
- Approved for conformity to safety standards
The chart below provides a brief breakdown of the characteristics and measurement functions of the CL Series Testers for AC/DC Current:
| For AC/DC Current | CL220 | CL235 | CL250 | CL255 |
| Diameter of conductor | 1 inch | 1.3 inch | 2.2 inch | 2.2 inch |
| Detection Method | Mean value | True RMS | Mean value | True RMS |
| Frequency | 20Hz to 1kHz | 40Hz to 1kHz | 40Hz to 1kHz | 30Hz to 1kHz |
| AC Current | 40/300A | 400/600A | 400/2000A | 400/2000A |
| DC Current | 40/300A | 400/600A | 400/2000A | 400/2000A |
| AC Voltage | ✔ | ✔ | ✔ | |
| DC Voltage | ✔ | ✔ | ✔ | |
| Continuity check | ✔ | ✔ | ✔ | |
| Frequency measurement | ✔ | ✔ | ||
| Data hold | ✔ | ✔ | ✔ | ✔ |
| Peak hold | ✔ | ✔ | ||
| Recorder output | ✔ | ✔ | ||
| Waveform monitor output |
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | Yes |
| Maximum Current AC | 2000 A |
| Maximum Current DC | 2000 A |
| Maximum Voltage AC | 750 V |
| Maximum Voltage DC | 1000 V |
| Maximum Conductor Size | 2.2 IN |
| Resistance | Yes |
| Capacitance | No |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | No |
Test Equipment General Attributes |
|
| Unique Features | Analog Output |
| Warranty | 12 MONTHS (1 YEARS) |
| Product Weight | 450 GRAMS (0.992 LBS) |
| Product Height | 49 MM (1.93 IN) |
| Product Length | 105 MM (4.13 IN) |
| Product Width | 250 MM (9.84 IN) |
| Shipping Weight | 3.00 LBS |
| Data Logging | No |
| HTS/Schedule B Number | 9030.33.3400 |
| ECCN Number | EAR99 |
| Calibration Included | Factory Calibration |
| Country of Origin | Thailand |
