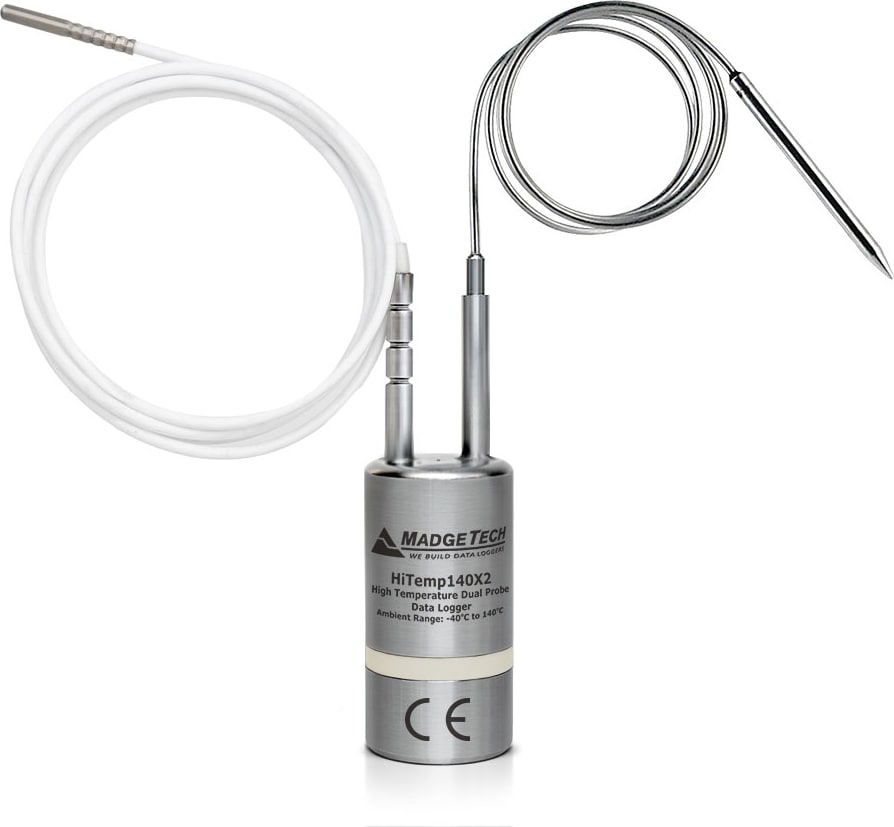

Madgetech HiTemp140X2FP72PT1 – Dual Probe High Temperature Data Logger, 72-in Flex Probe, 24-in Bendable Probe with 1-in Tip
- Probe style 1: 72-inch flexible RTD (FP) probe
- Probe style 2: 24-inch stainless steel bendable (PT) probe with 1-inch tip
- Customizable to Support Any Application
- Capable of Measuring Temperatures up to 350°C (probe dependent)
- Submersible
The HiTemp140X2 series is a dual probe, high-temperature data logger. Featuring a combination of two remote temperature probes, or one ambient and one remote temperature probe combination, the HiTemp140X2 offers extreme flexibility for high-temperature monitoring applications.
All HiTemp140X2 data loggers are submersible and capable of measuring temperatures up to +350°C (662°F) (probe dependent). The HiTemp140X2 records and stores 32,767 timestamped readings and can be programmed for immediate start or delayed start up to 18 months in advance.
HiTemp140X2-TD models feature a 2 in. rigid, fast response, transitional diameter probe (TD) to measure ambient temperature, combined with a second bendable probe (PT) or a flexible RTD probe (FP) option.
HiTemp140X2-FP models feature a lightweight, flexible RTD probe (FP) with stainless steel tip available in four lengths, combined with a 24 in. bendable probe (PT) with either a 1 or 5 in. probe sheath at the tip, or with two flexible RTD probes (FP) with stainless steel tip.
The HiTemp140X2 series is compatible with the latest MadgeTech 4 Software making starting, stopping, and downloading simple and easy. Graphical, tabular, and summary data are provided for analysis and can be viewed as customizable engineering units.
The HiTemp140X2 series is not ideal for steam sterilization applications above 121 °C/1.1 bar.
Manufacturer Specs
| Memory | 32,767 readings |
| Reading Rate | 1 reading every 1 seconds up to 1 reading every 24 hours |
| Baud Rate | 125,000 |
| Battery Life | 2 years typical (1 minute reading rate)/User Replaceable Battery |
| Material | Body: 316 Stainless Steel Rigid/Bendable Probe: 316 Stainless Steel Flexible Probe: PFA Insulated Cable with Stainless Steel Tip |
| Dimensions | Body: 1.89 in x 0.97 in x 0.97 in (48 mm x 24.6 mm x 24.6 mm)
Probes: TD: 2.0 in x 0.125 in dia. with 0.188 in transitional dia. (51 mm x 3.2 mm dia. with 4.8 mm transitional dia.) PT-1: Probe Tip: 1.7 in x 0.125 in dia. (42 mm x 3.2 mm dia.), Bendable Portion: 22 in x 0.062 in dia. (559 mm x 1.6 mm dia.) |
| Key Ring End Cap | Key ring replaces standard bottom Thru-hole: 0.150″ |
| IP Rating | IP68 |
| Submersible | Yes |
| Operating Environment | -40 °C to +140 °C (-40 °F to +284 °F), 0 %RH to 100 %RH, 0.002 PSIA to 100 PSIA (Body of Logger Cannot Exceed 140 °C) |
| Temperature | |
| Temperature Sensor | RTD Probe (Rigid, Bendable and Flexible styles available) |
| Temperature Resolution | 0.01 °C (0.018 °F) |
| Temperature Calibrated Accuracy | ±0.1 °C (0.18 °F) |
| Probe Temperature Range | Rigid Probe: -200 °C to +260 °C (-328 °F to +500 °F) Bendable Probe: -200 °C to +350 °C (-328 °F to +662 °F) Flexible Probe: -60 °C to +260 °C (-76 °F to +500 °F) (Body of Logger Cannot Exceed 140 °C) |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Type | Other |
| Max Temperature | 500 F (260 C) |
| Min Temperature | -328 F |
| Battery Life | 1 YEARS (8760 HR) |
| Input Source | External Probe |
| Accuracy | ±0.1 °C (+20 °C to +140 °C); 0.18 °F (+68 °F to +284 °F) ±0.3 °C (-20 °C to 19.99 °C); 0.54 °F (-4 °F to +67.98 °F) ±0.4 °C (-40 °C to -20.01 °C); 0.72 °F (-40 °F to +68.018 °F) |
| LCD Screen | No |
| Data Output Format | excel |
Test Equipment General Attributes |
|
| Safety Approval | CE |
| IP Rating | IP68 |
| Product Height | 72 IN |
| Product Length | 1.89 IN |
| Product Width | 0.097 IN |
| Shipping Weight | 4 LBS |
| Data Logging | Yes |
| Battery Type | Li-ion |
| Country of Origin | United States |
