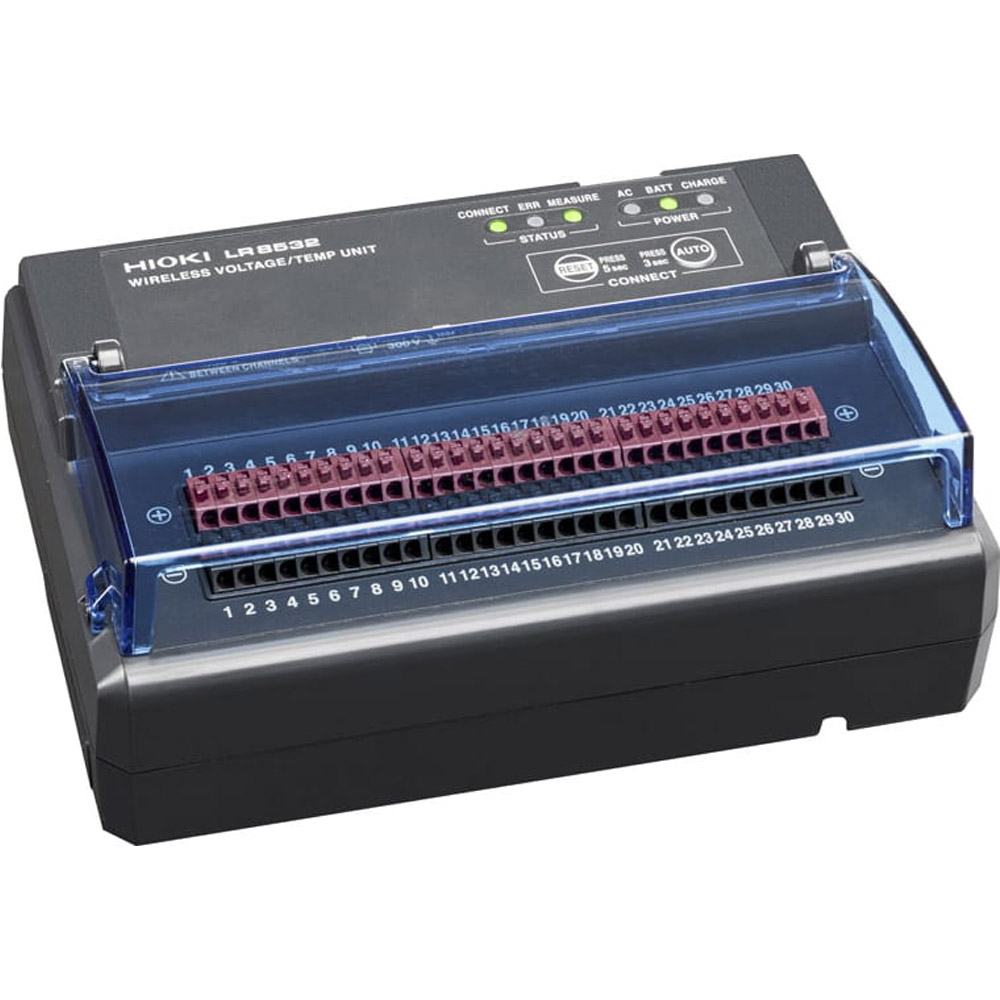

Hioki LR8532 Kit – 30 Channels Wireless Voltage/Temp Unit with Battery Pack
- 30 channels
- For voltage and temperature measurement
- Wireless connection between LR8450-01 and measurement module, 30 m range
- Sampling rate of up to 20 ms (10 ms sampling is possible when the number of channels used is 15 or less)
The Hioki LR8532 Kit provides 30 channels with a sampling rate of 20 ms. It used for DC voltage measurement and temperature measurement using thermocouples. The wireless Voltage/Temp unit LR8532 can operate for about 9 hours on battery power. If the unit is charged at night, it can operate on the battery pack alone during the day.
The LR8532 cannot perform measurement by itself. Memory HiLogger LR8450-01 is required separately. By attaching the Z3230 Wireless LAN Adapter (accessory), LR8532 can be wirelessly connected to the Memory HiLogger LR8450-01.
Manufacturer Specs
| Model LR8532 Kit Specifications | |
| Connectable instrument | Memory HiLogger LR8450-01 (Wireless LAN model) |
| Control communications method | Connect wirelessly via Wireless LAN Adapter Z3230 (included) Wireless LAN (IEEE 802.11b/g/n) Communication range: 30 m (line of sight) Encryption function: WPA-PSK/WPA2-PSK, TKIP/AES Available number of channels: 1 to 11 |
| Communications buffer memory | 4 M word (volatile memory) Saves data in the event of a communications error. Data is resent when communications are restored. |
| Operating temperature and humidity | -20°C to 55°C, 80% RH (no condensation) (Charging temperature range: 5°C to 35°C) |
| Storage temperature and humidity | -20°C to 60°C, 80% RH (no condensation) |
| Vibration resistance | JIS D 1601:1995 5.3(1), Class 1A (passenger vehicle) equivalent |
| LED display | Wireless connection, measurement status, error status, AC adapter/external power, battery power, charge status |
| Automatic connection function | Available |
| Number of input channels | 30 ch (Able to set voltage or thermocouple for each channel) |
| Input terminals | Push-button type terminal block (2 terminals per channel) |
| Measurement target | Voltage, thermocouples |
| Input type | Scanning by semiconductor relays All channels isolated |
Tech Specs
Dataloggers / Data Acquisition/Dataloggers for Environmental Variables/Temperature Dataloggers Templ |
|
|---|---|
| Power Source | AC Line, Battery |
| Battery Life | 9 HR |
Dataloggers / Data Acquisition/Voltage Datalogger Template |
|
| SAMPLE RATE/Intervals | 20 ms |
| Type | DC |
Test Equipment General Attributes |
|
| Warranty | 3 YEARS |
| Shipping Weight | 3 LBS |
| Power Supply Voltage | Battery Powered |
