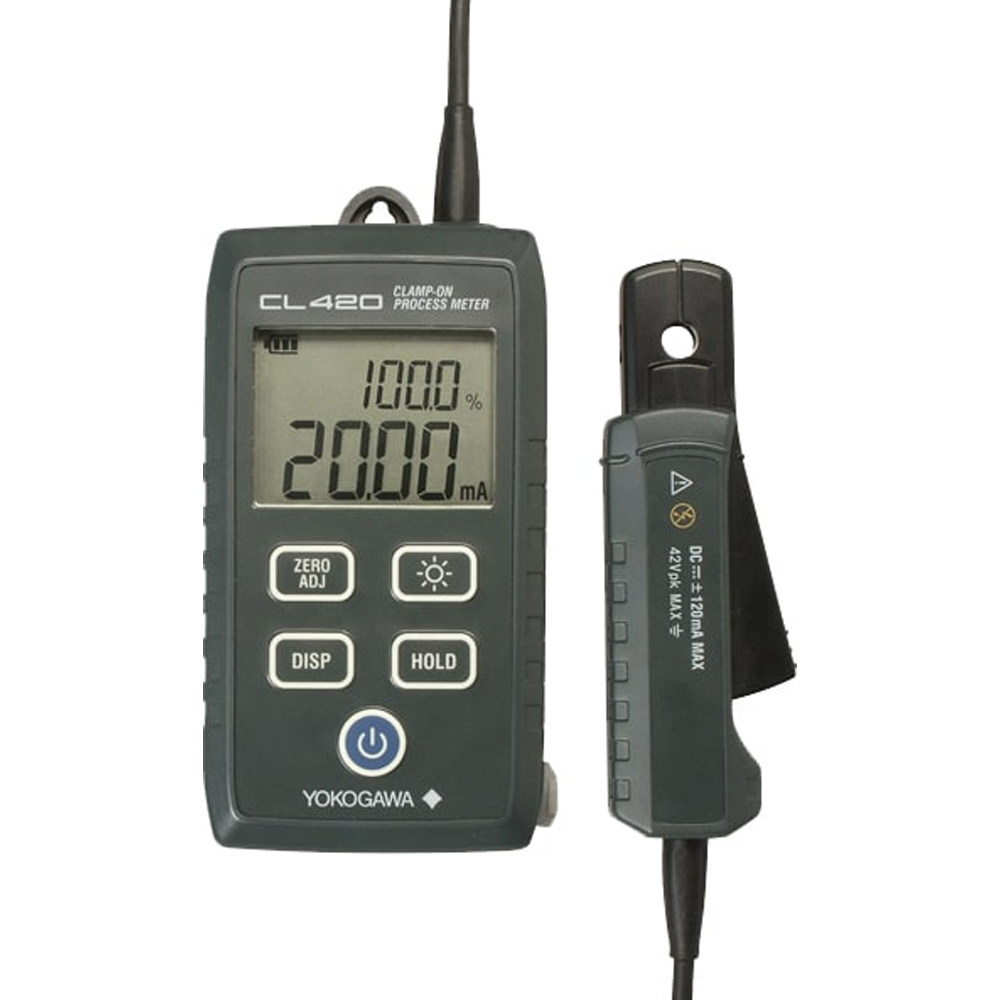

Yokogawa CL420 – Clamp-on Process Meter (4-20 mA DC Signals)
- Maximum AC current = N/A
- Maximum DC current = 100 mA
- Maximum AC voltage = N/A
- Maximum DC voltage = N/A
- True RMS = No
This device allows the user to make safe current checks of 4-20mA DC signals without breaking the loop. In addition, the output function provides a simple way to log and monitor the data.
Product Features/Functions:
- 0.2% Accuracy, 0.01mA Resolution
- Measures 4-20 mA signals
- Dual display
- LED torch light, backlit display
- Analog output available
- Data hold
- Recorder output
- Zero adjust
- Auto power off
- Illuminated panel
Tech Specs
Clamp Meters/Clamp Meters Template |
|
|---|---|
| True RMS | No |
| Maximum Current DC | 100 mA (0.1 A) |
| Maximum Conductor Size | 0.2 IN |
| Resistance | No |
| Capacitance | No |
| Auto Ranging/Manual | Auto Ranging |
| In-Rush Current | No |
Process / Calibration/Signal Calibrators/Loop Calibrators Template |
|
| Source Outputs | Yes |
| Display (Loop Calibrators) | Dual |
| Maximum Current | 100 mA (0.1 A) |
| Battery Life | 60 HR |
Process / Calibration/Milliamp Calibrators Template |
|
| Current Measurement Max | 100 mA |
| Source/Simulate DC Current | Yes |
| Measure DC Current | Yes |
| Two Wire Transmitter Simulation | Yes |
| Percent Display | Yes |
| Backlight | Yes |
Test Equipment General Attributes |
|
| Product Weight | 0.8 LBS |
| Product Height | 3.30 IN |
| Product Length | 7.50 IN |
| Product Width | 6.80 IN |
| Shipping Weight | 1.22 LBS |
| HTS/Schedule B Number | 9030310000 |
| ECCN Number | 3A992 |
| Power Supply Voltage | Battery Powered |
| Country of Origin | Japan |
| Shipping Height | 3.30 IN |
| Shipping Length | 7.50 IN |
| Shipping Width | 6.80 IN |
