Bomba neumática de presión Fluke 700HPPK-NPT, 21 MPA (3000 psi), NPT

Fluke 700HPPK-NPT – High Pressure Pneumatic Pump/Comparator, 21 MPA (3000 psi), NPT

Generate and adjust pneumatic pres- sures up to 21 MPa (3000 psi)
Rugged, portable and stable enough to go anywhere—on any surface

Reaches pressure in 20 seconds to full scale into a 30 cm3 volume
Easily switch out reference gauges without requiring PTFE tape or tools

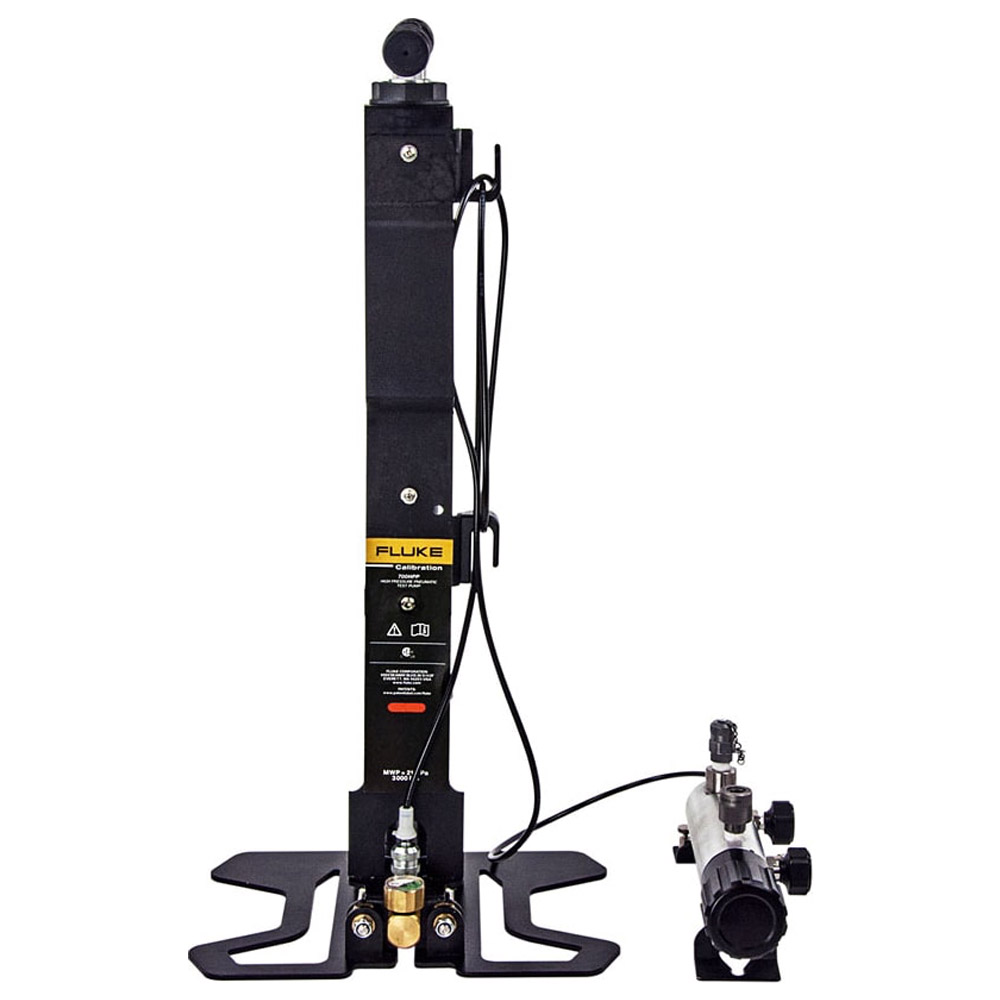

700HPPK Pneumatic Test Pump Kit.

Generate 21 MPa (3000 psi) easily in the field, without liquid contamination or the hazard of a pressurized gas cylinder.

The Fluke Calibration 700HPPK Pneumatic Test Pump Kit generates and adjusts pneumatic pressures up to 21 MPa (3000 psi), with- out requiring a nitrogen bottle or other external pressure supply. It supplies pressure to devices under test (DUTs) that include transmitters, controllers, pilots, digital and analog gauges, and more. It’s the perfect solution for generating high pressure in the field, where conditions and operating surfaces can vary.

The 700HPPK is the ideal choice for calibration technicians, test engineers, and instrument technicians working in industries like natural gas transmission and distribution, process, aerospace and defense, who need a simple-to-use, safe and portable pressure source that they can depend on in a wide variety of conditions. The 700HPPK contains both a calibration manifold and high pressure pump to generate and finely adjust pressures . A second model, the 700HPP, is available for people who only prefer a high pressure source.

Generate high pressure accurately and safely for a wide workload

The 700HPPK generates pressure up to 21 MPA (3000 psi) within 20 seconds to full scale into a 10 cm3 volume. A detachable pressure adjustment system and adjustment control knob enables users to make fine pressure adjustments to 0.1% of reading or better.

The 700HPPK includes a 2 meter (6.5 foot) pressure line and assorted pressure fittings, enabling you to connect a wide variety of DUTs for wide workload coverage. In fact, the 700HPPK covers at least five times more workload than standard range pneumatic pumps.

An in-line filter system protects the system against contamination from the unit under test.

Use the 700HPPK just about anywhere

The 700HPPK is designed to be at home in the lab or the field. Lightweight and portable, it features collapsible feet, built-in handhold, and a canvas carrying case, making it easy to carry to the field.

The 700HPPK works on just about any surface, so you don’t need a flat laboratory bench or flat area in the field.

With the 700HPPK, you don’t need to carry a lot of extra equipment or accessories. No PTFE tape or extra tools are required thanks to a swivel ¼ NPT female reference gauge connector that makes switching reference gauges fast and easy.

The pump kit is designed so the calibration manifold attaches and detaches easily via quick detent pins. You won’t need to spend a lot of time setting it up or packing it away at the end of the day.
