Descripción

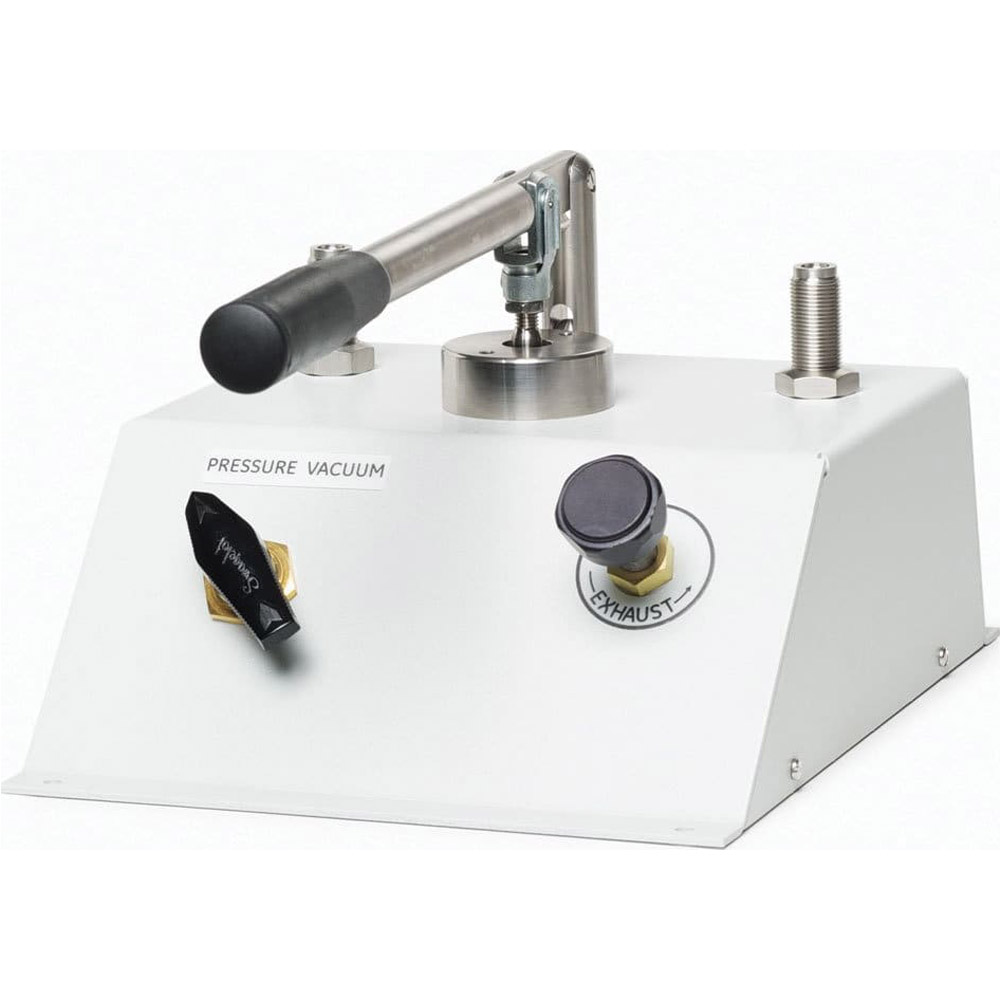

| P5510-2M Pneumatic Comparison Test Pump Pressure range 0 to 300 psi (20 bar); vacuum range 0 to 24 inHg (800 mbar) |
|
| This pneumatic comparison test pump is designed for testing pressure measuring instruments against master test instruments. This cost effective instrument provides precise control for important calibration requirements and include many features found in our popular line of pneumatic deadweight testers. |
Manufacturer Specs
| Model P5510-2M | Model P5513-20M | |
| Pressure range | 0 psi to 300 psi (20 bar) | 0 psi to 3 000 psi (210 bar) |
| Vacuum range | 0 in to 24 in Hg (800 mbar) | |
| Test port adapters | M20 X 1.5, M14 X 1.5, 1/8, 1/4, 3/8, and 1/2 NPT and BSP (plus 1 additional 1/4 NPT adapter) |
M20 X 1.5, M14 X 1.5, 1/8, 1/4, 3/8, and 1/2 NPT and BSP (plus 1 additional 1/4 NPT adapter) |
| Weight | 3.5 kg (7.5 lb) | 8 kg (17 lb) |
| Dimensions (W x D x H) | 240 mm x 330 mm x 180 mm (9.5 in x 13 in x 7 in) | 440 mm x 300 mm x 215 mm (17.5 in x 12 in x 8.5 in) |
| Gas supply connection | 1/4 NPT female |
Tech Specs
Process / Calibration/Pressure Calibration/Calibration Pumps Template |
|
|---|---|
| Style (pumps) | Pneumatic |
| Maximum Range Pressure (Gauges) | 300 psi |
| Maximum Range Vacuum | -11.8 |
| Fluid Compatability | Air |
| NIST Calibration | No |
| Kits Available | No |
Test Equipment General Attributes |
|
| Product Height | 15.00 IN |
| Product Length | 14.60 IN |
| Product Width | 14.50 IN |
| ECCN Number | EAR99 |
| Country of Origin | United States |
| Shipping Height | 15.00 IN |
| Shipping Length | 14.60 IN |
| Shipping Width | 14.50 IN |
