Descripción

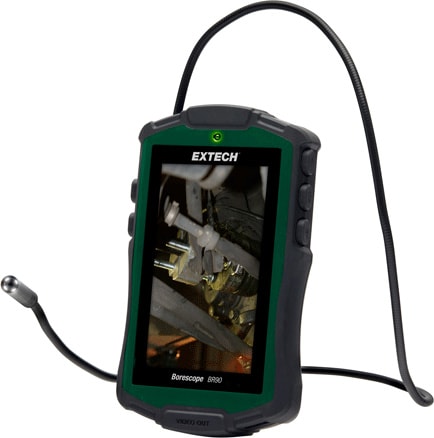

Extech BR90 Borescope Inspection Camera
- Waterproof (IP67) 8 mm diameter camera probe
- 180° image rotation and mirror flip feature
- Adjustable display brightness and 2x digital zoom
- Large 4.3″ (109 mm) color TFT LCD monitor for viewing detailed images
The Extech BR90 is a palm-sized, waterproof (IP67) 8mm camera probe with a 2.5ft (77cm) flexible goose-neck cable to retain its configured shape. The borescope features a unique compartment to coil the camera probe for easy storage. Its 640 x 480-pixel resolution, 2x digital zoom, and built-in bright LED lamps to help project viewed objects clearly on the large 4.3″ (109mm) color LCD display. The monitor has adjustable brightness, 180° image rotation, mirror-flip feature, and video output. It’s a fully loaded inspection camera at an affordable price!
In The Box
- Built-in camera probe
- Extension tools (mirror, hook, magnet, and fixture)
- 4 AA batteries
- Soft carrying case
Manufacturer Specs
| Model: BR90 Specifications | |
| Description | Borescope Inspection Camera |
| Camera resolution | 640 x 480 pixels |
| Camera view angle | 50° |
| Camera focus distance from object | ~0.2 to 0.3″ (~5 to 8 mm) |
| Camera minimum bend radius | 1″ (25 mm) |
| Camera dimensions | Shaft: 0.32″ (8 mm) diameter |
| Cable dimensions | 0.2″ (4.4 mm) diameter/ 2.5 ft (77 cm) long |
| LCD screen type | 4.3″ (109 mm) color TFT display |
| Monitor resolution | 640 x 480 pixels |
| Image zoom ratio | 1.5x and 2x |
| Video format | NTSC |
| Monitor dimensions | 7.1 x 3.5 x 1.4″ (180 x 89 x 36 mm) |
| Weight | 11.5 oz (325 g) |
Tech Specs
Accessories/Borescope Probes and Camera Heads Template |
|
|---|---|
| Shaft Diameter | 0.32 IN (0.025 M) |
Test Equipment General Attributes |
|
| Warranty | 2 YEARS |
| Safety Approval | CE |
| IP Rating | IP67 |
| Product Weight | 0.71 LBS |
| Product Height | 7.1 IN |
| Product Length | 1.4 IN |
| Product Width | 3.5 IN |
| Shipping Weight | 1.15 LBS |
| HTS/Schedule B Number | 9031499000 |
| Country of Origin | China |
| Shipping Height | 6 IN |
| UPC | 793950630907 |
| Shipping Length | 20.50 IN |
| Shipping Width | 2.20 IN |
