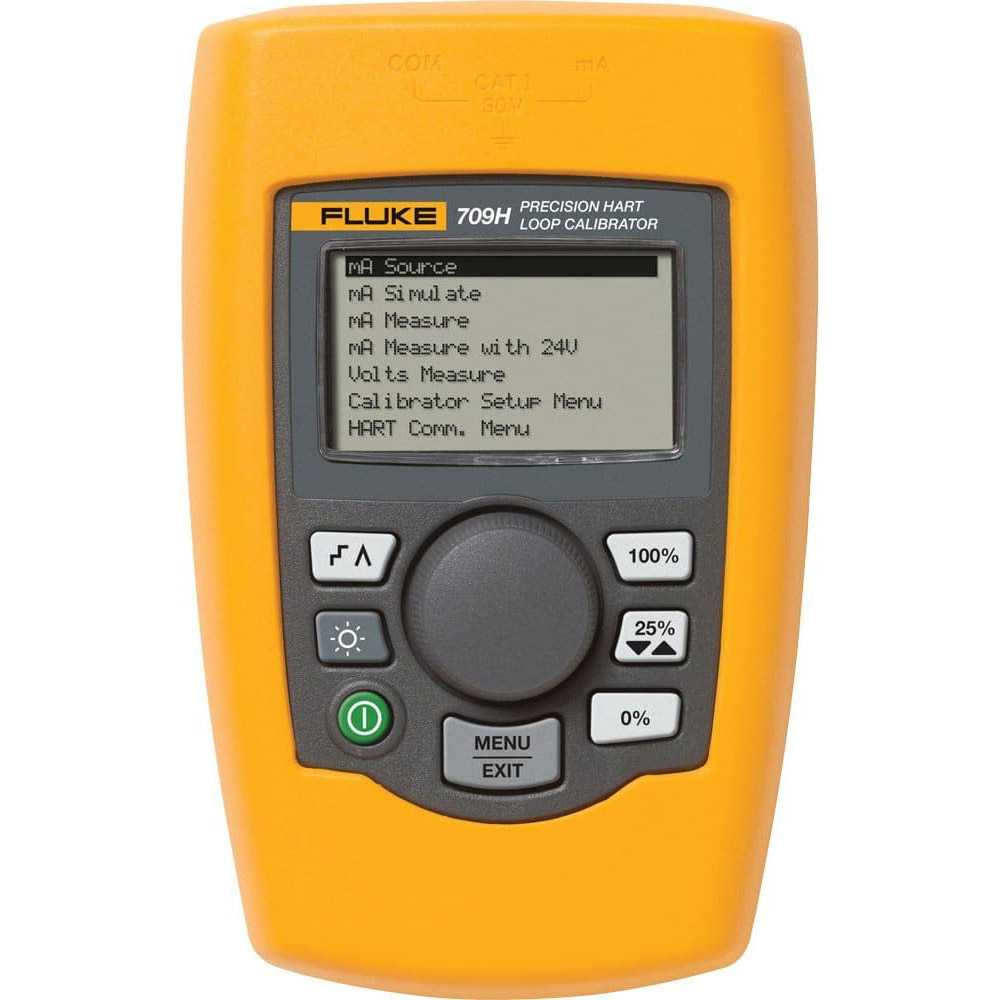

Precision HART Loop Calibrator
Fluke puts HART communication in a precision loop calibrator.
The Fluke 709 and 709H mA loop calibrators are designed to save time and produce high-quality results. These calibrators are built around a user friendly interface with a Quick-Set rotary encoder knob. This tool reduces the time it takes to measure, or source, current and power up a loop. The protective holster easily ts into a technician’s hand and the large backlit display is easy to read, even in dark, cramped worked areas.
Hart communications
The 709H adds HART communications and supports a select set of the HART universal and common practice commands. This makes the 709H unique as both an affordable, compact loop calibrator and powerful HART communication troubleshooting tool.
In the communicator mode the user will be able to read basic device information, perform diagnostic tests, and trim the mA output on most HART enabled transmitters. In the past, this could only be done with a dedicated communicator, a high-end multifunction calibrator, or a laptop computer with HART modem. Fluke 709H will allow virtually any technician to service and support HART devices.
Saving time, getting answers
In addition, the 709H offers:
- Logging of HART data in the field. Once recorded by the 709H in the field, the 709H/TRACK software can upload the HART configuration of up to (20) HART devices in your plant and output data in either (.csv) or (.txt) format.
- Data logged mA loop measurements and HART data can be recorded from a particular transmitter for troubleshooting and loop tuning. The data log feature offers selectable capture with recording intervals of 1 to 60 seconds and a logging capacity of 9800 records or 99 individual sessions. Each data sample contains the 709H mA measurement, all four process variables, and the standard status conditions.
Manufacturer Specs
| Functions | mA source, mA simulate, mA read, mA read/loop power, and volts read. |
| Ranges | mA (0 to 24mA) and Volts (0 to 30VDC) |
| Resolution | 1uA on mA ranges and 1mV on voltage range |
| Accuracy | 0.01% +/- 2 counts all ranges (@23° +/- 5°C) |
| Operating temperature range | -10 °C to 55 °C (14 °F to 131°F) |
| Humidity range | 10 to 95% non-condensing |
| Stability | 20ppm of F.S. /°C from -10°C to 18°C and 28°C to 55°C |
| Display | 128 x 64 pixels, LCD Graphic w/backlight, .34″ high digits |
| Power | 6 AAA alkaline |
| Battery Life | ≥ 40 hours continuous use (measure mode using alkaline) |
| Loop Compliance Voltage | 24VDC @ 20mA |
| Over-Voltage Protection | 240VAC |
| Overload Current Protection | 28mA DC |
| EMC | EN61326 Annex A (Portable Instruments) |
| Dimensions | (L x W x D) 15 cm x 9 cm x 3 cm (6″ x 3.6″ x 1.3″) |
| Weight | 0.3 kg (9.5 ounces) |
| Included Accessories | NIST traceable calibration certificate with data, batteries, test leads, and manual |
Tech Specs
Process / Calibration/Multifunction Calibrators Template |
|
|---|---|
| Type | Hand Held |
| Measure Voltage | Yes |
| Simulate Loop Voltage | No |
| Voltage Measurement Max | 30 V |
| Source/Simulate DC Current | Yes |
| Measure DC Current | Yes |
| Current Measurement Max | 0 mA |
| Current Measurement Min | 24 mA |
| Measure Resistance | No |
| Source/Simulate Frequency | No |
| Measure Frequency | No |
| Measure Thermocouples | No |
| Source/Simulate Pressure | No |
| Pressure Modules Available | No |
| Hart Compatible | Yes |
| FieldBus Compatible | No |
| Data Log Functions | Current, Voltage |
| Backlighted | Yes |
| Max Number of Readings Stored | 20 |
| Intrinsically Safe(Calibrators) | No |
Process / Calibration/Signal Calibrators/Loop Calibrators Template |
|
| Measure Inputs | Yes |
| Source Outputs | Yes |
| Display (Loop Calibrators) | Single |
| Maximum Current | 24 mA (0.024 A) |
| Current Measurement Resolution | 1 μA |
| Current Accuracy | 0.01 % ±2 LSD all ranges (@23 °C ±5 °C) |
| Maximum Voltage | 30 V |
| Voltage Measure Resolution | 1 mV |
| Voltage Accuracy | 0.01 % ±2 LSD all ranges (@23 °C ±5 °C) |
| Measure RTD | No |
| Measure T/C | No |
| Measure Thermistor | No |
| Programmable | No |
| Min/Max Memory | No |
| Auto Step/Ramp | Yes |
| Present Outputs | Yes |
| Intrinsically Safe | No |
Process / Calibration/Milliamp Calibrators Template |
|
| Two Wire Transmitter Simulation | Yes |
| Percent Display | Yes |
| Resolution AC Current | 1 uA (0.000001 A) |
| Accuracy | 0.01 % ±2 LSD all ranges (@23 °C ±5 °C) |
| Backlight | Yes |
| Ramp/Step Output | Yes |
| Battery Life | 40 HR |
Test Equipment General Attributes |
|
| Unique Features | Best-in-class accuracy at 0.01% reading; Small rugged design operates on (6) standard AAA batteries; Intuitive user interface with Quick-Set knob for fast setup, easy use; Built in selectable 250 Ω resistor for HART communication; 24 V DC loop power with mA Measure Mode (-25% to 125%); Resolution of 1 µA on mA ranges and 1 mV on voltages ranges; Simple two wire connection for all measurements; Auto Shutdown to conserve battery life (adjustable up to 30 minutes); Variable step & ramp time in seconds; Adjustable span selection (0 to 20 mA or 4 to 20 mA); Valve Test (simulate defined mA values with % keys) |
| Warranty | 3 YEARS |
| Safety Approval | CE, CSA |
| Interfaces I/O | Analog Output, Analog Input , USB |
| IP Rating | IP40 |
| Product Weight | 3.01 LBS |
| Product Height | 3.35 IN |
| Product Length | 7.87 IN |
| Product Width | 4 IN |
| Shipping Weight | 3.01 LBS |
| Data Logging | Yes |
| HTS/Schedule B Number | 9030.39.0100 |
| ECCN Number | 3A992 |
| Calibration Included | NIST Calibration |
| Battery Type | AAA |
| Power Supply Voltage | Battery Powered |
| Country of Origin | China |
| Shipping Height | 3.35 IN |
| UPC | 095969643757 |
| Shipping Length | 7.87 IN |
| Shipping Width | 4 IN |
